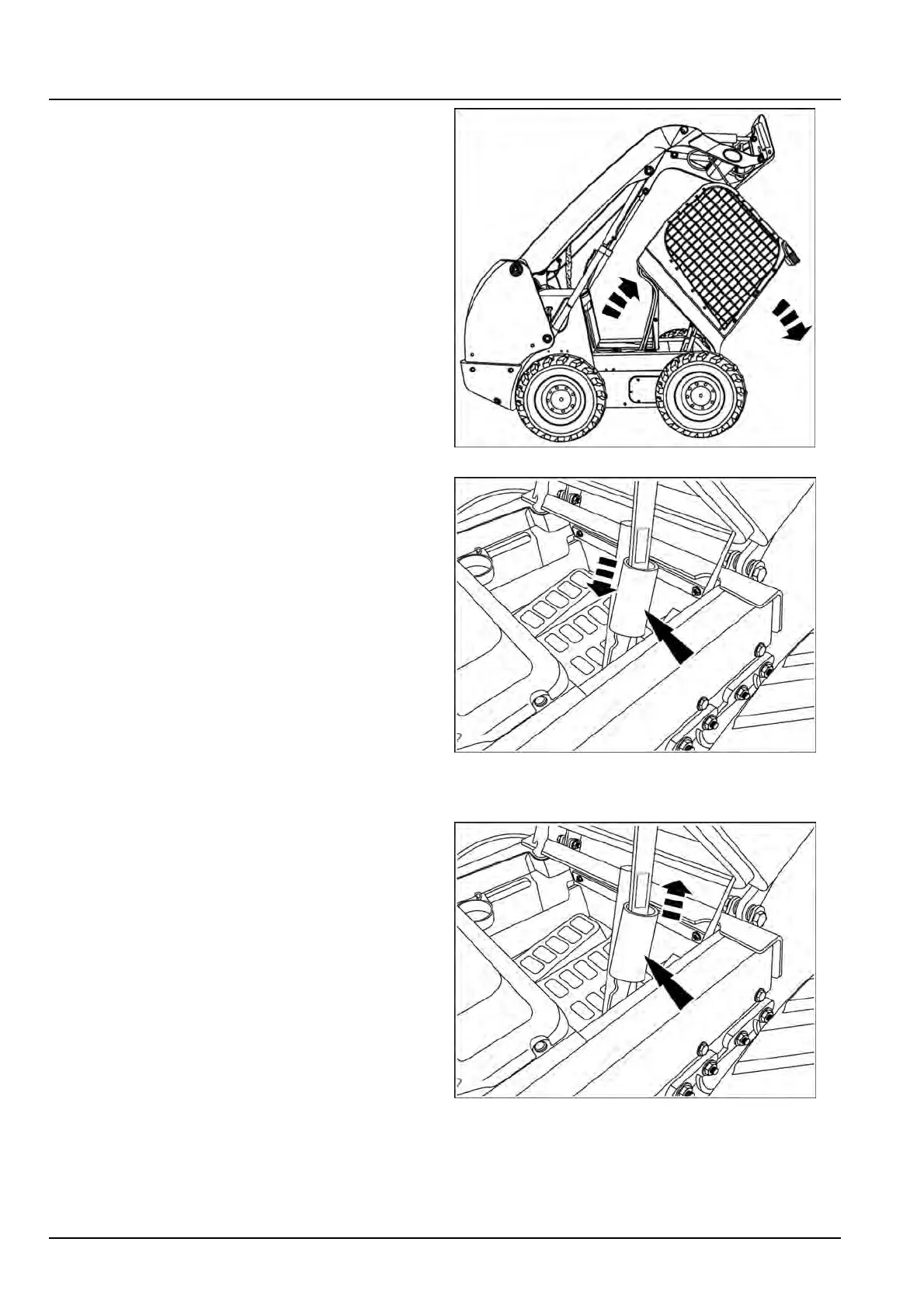

INTRODUCTION
2.Pullonthehandholdsatthefrontofthemachineuntil
thecabiscompletelytiltedforward.
931074986
3.Conrmthattheredlocktubehasloweredoverthe
cabpivotlinkage.Ifithasthecabtiltpositionisnow
secure.
RAPH12SSL0420BA7
Tiltandsecurethecabformachineoperation
1.Raisetheredlocktubeexposingthecabpivotlinkage.
2.Pushthecabbackwardintotheoperationposition.
RAPH12SSL0420BA8
4768391627/02/2015
10
