Engine-Engineandcrankcase

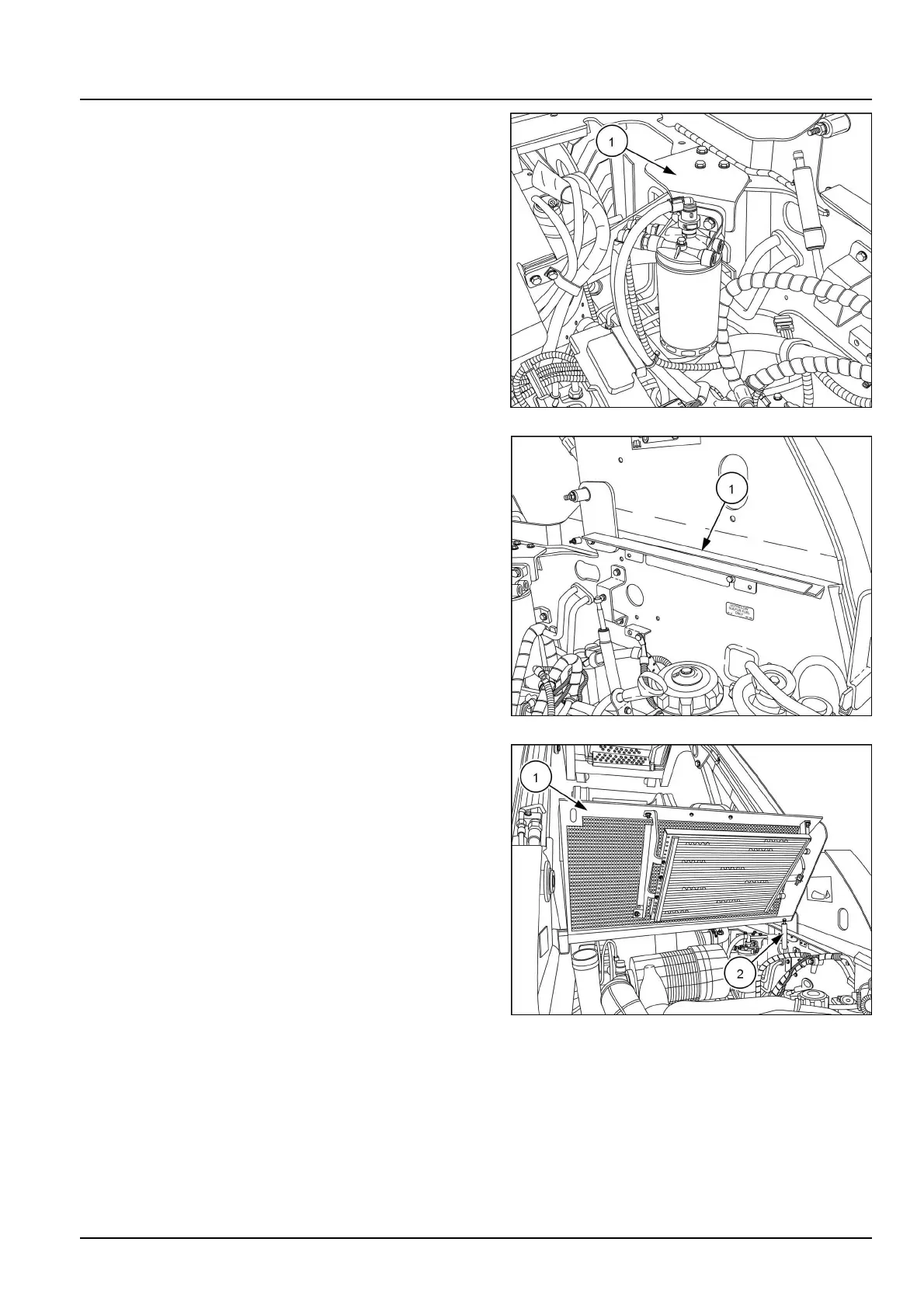

45.Attachthefuellterassembly(1)tothechassis.
46.Laythefuellterassembly(1)ontheengine.
47.Attachtheaircleanerassembly(3)thereardeck.
Torquethebolts(2)to27–37N·m(20–27lbft).
RAIL14SSL0855BA23
48.Installtheright-handsidehoodstop(1).
RAIL14SSL0849BA24
49.Installthetiltinghood(1)ontothereardeck.
50.Attachthehoodstrut(2)tothetiltinghood(1).
RAIL14SSL0850BA25
4806031928/08/2017
10.1[10.001]/27
