Engine-Engineandcrankcase

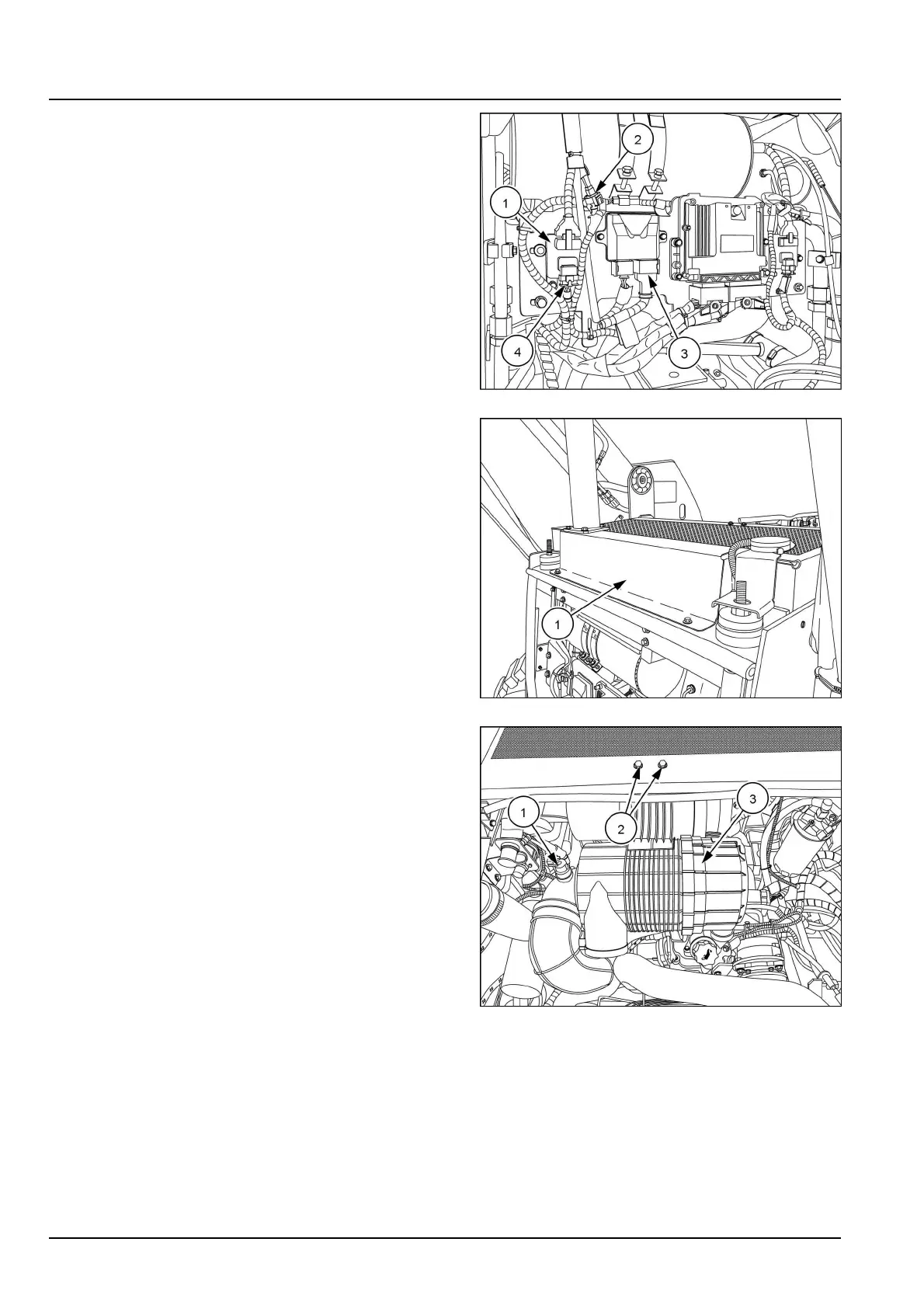

39.AttachtheNOxmodule(1)tothebracketforthecon-
trolmodules.
40.ConnecttheNOxmodule(4),NH3module(3),and
temperaturesensor(2).
41.Secureallwires,harnesses,andhosesawayfromhot
components.
RAIL14SSL0792BA20
42.Attachthereardeck(1)tothechassis.
RAIL14SSL0852BA21
43.Installtheaircleanerassembly(3).T orquethebolts
(2)to27–37N·m(20–27lbft).
44.Connecttherestrictionsensor(1)fortheairlter.
RAIL14SSL0851BA22
4806031928/08/2017
10.1[10.001]/26
