Step 1.

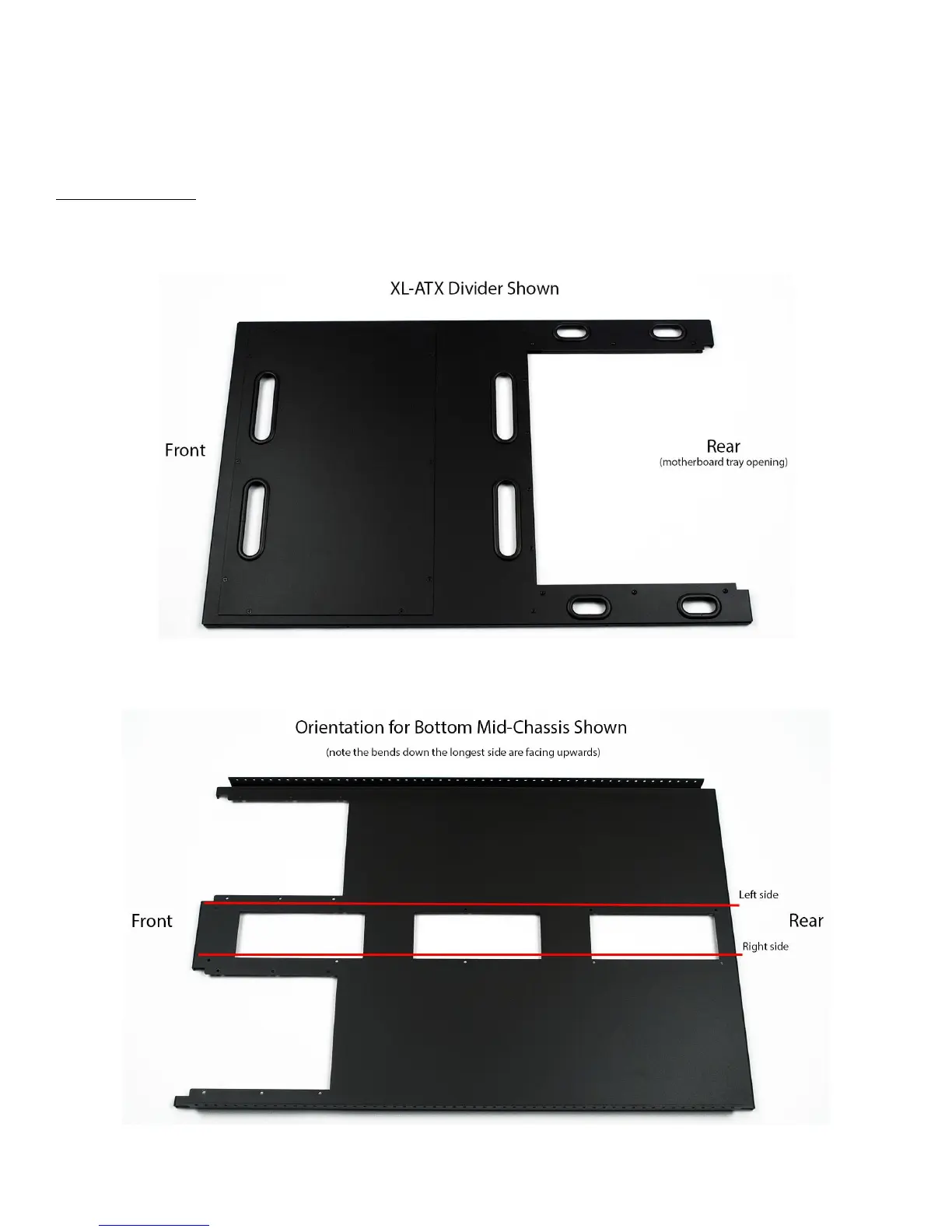

Locate the Divider(s) and one Mid-Chassis. This step will determine motherboard placement and orientation. Please
follow the steps below based on how you would like the case to be configured.
Left and Right Sides
The TX10 has two different mounting locations for the divider which hold the motherboard in place, left and right
(determined when looking at the front of the case). The dividers are universal for both the left and right side.
The Mid-Chassis have two sets of mount holes down the middle of the parts. These holes are where the divider attaches
too. Mid-Chassis are universal for top and bottom.
