Standard, Reverse and Dual Mounting

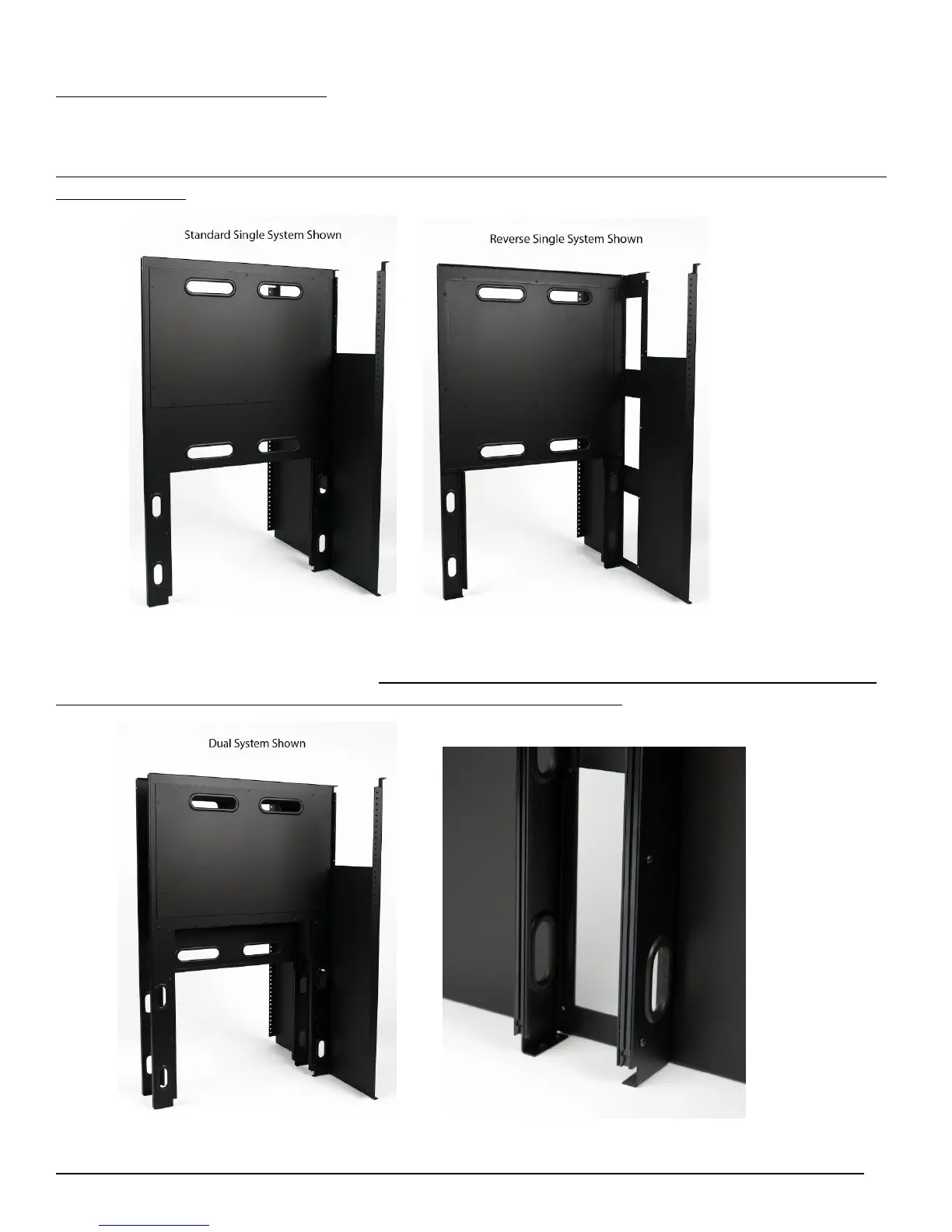

There are three main configurations for the TX10; standard, reverse and dual. Standard requires mounting the divider to
the left side as shown below (left). Reverse requires mounting the divider to the right side as shown below (right).
Please note that the motherboard tray guides and bends on the divider face in towards the center of the Mid-Chassis
(see image below)
Dual requires use of both mounting positions. Please note that if the case has been configured with both XL-ATX and
HPTX dividers that it is determined now which side each divider will mount too.
Choose one of the 3 options above, and using the countersink screws, attach the Divider(s) to the Mid-Chassis as shown.
Please note that countersink screws will be used throughout the assembly process the build the complete chassis.
