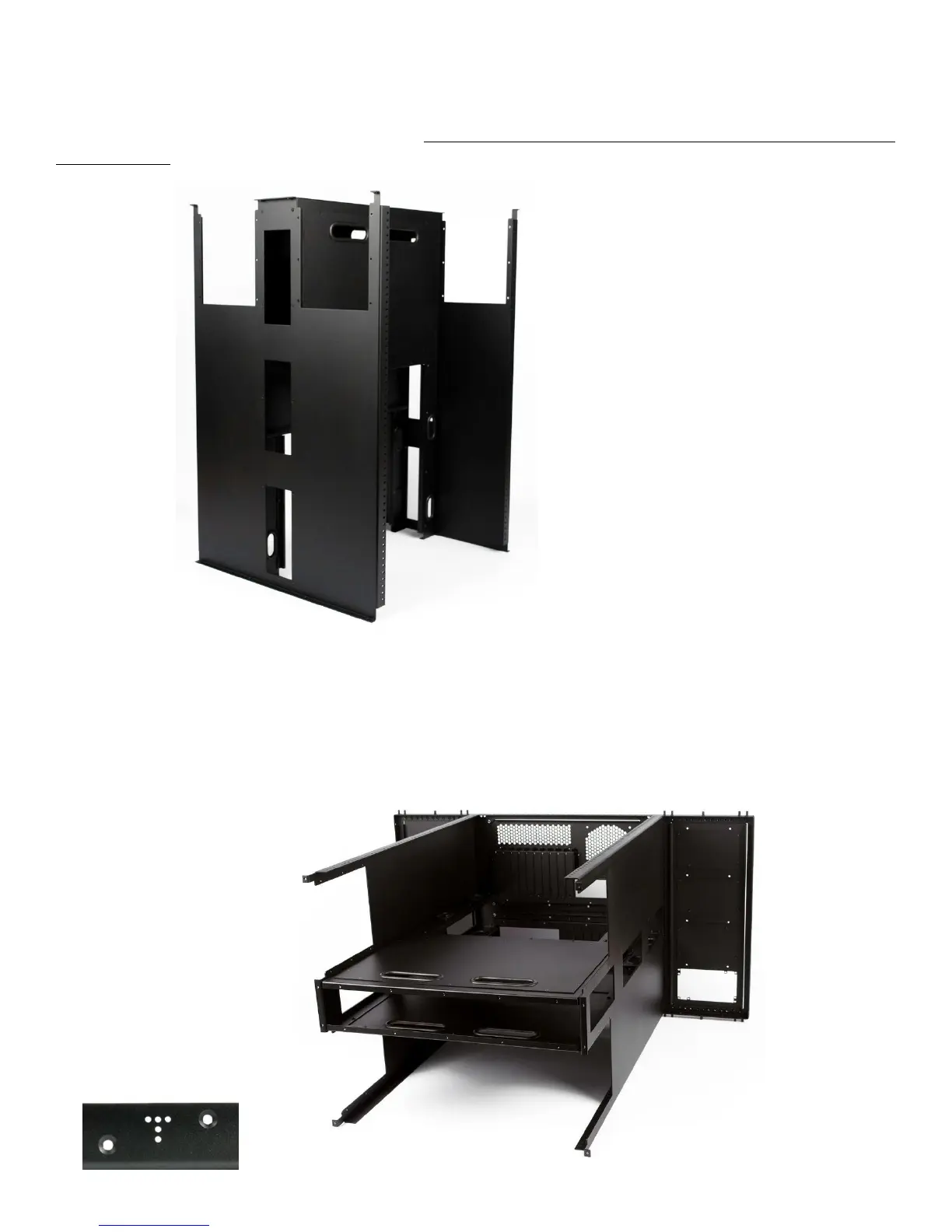

Step 2.
Locate the second Mid-Chassis and attach as shown. Please note that the long bends down the sides of the Mid-Chassis
face each other.
Step 3.
Locate the Rear Chassis Section and note the “T” which represents the top of the part. Mount the Rear Chassis Section
to the Mid-Chassis/Divider assembly as shown. Be sure to maintain the proper orientation of the Rear Chassis to the
Mid-Chassis/Divider assembly. As a reference, the Divider in the standard position (left side) is the Divider which is
above the other Divider in the image below.
