Casio AP-10 User Manual

— 8 —

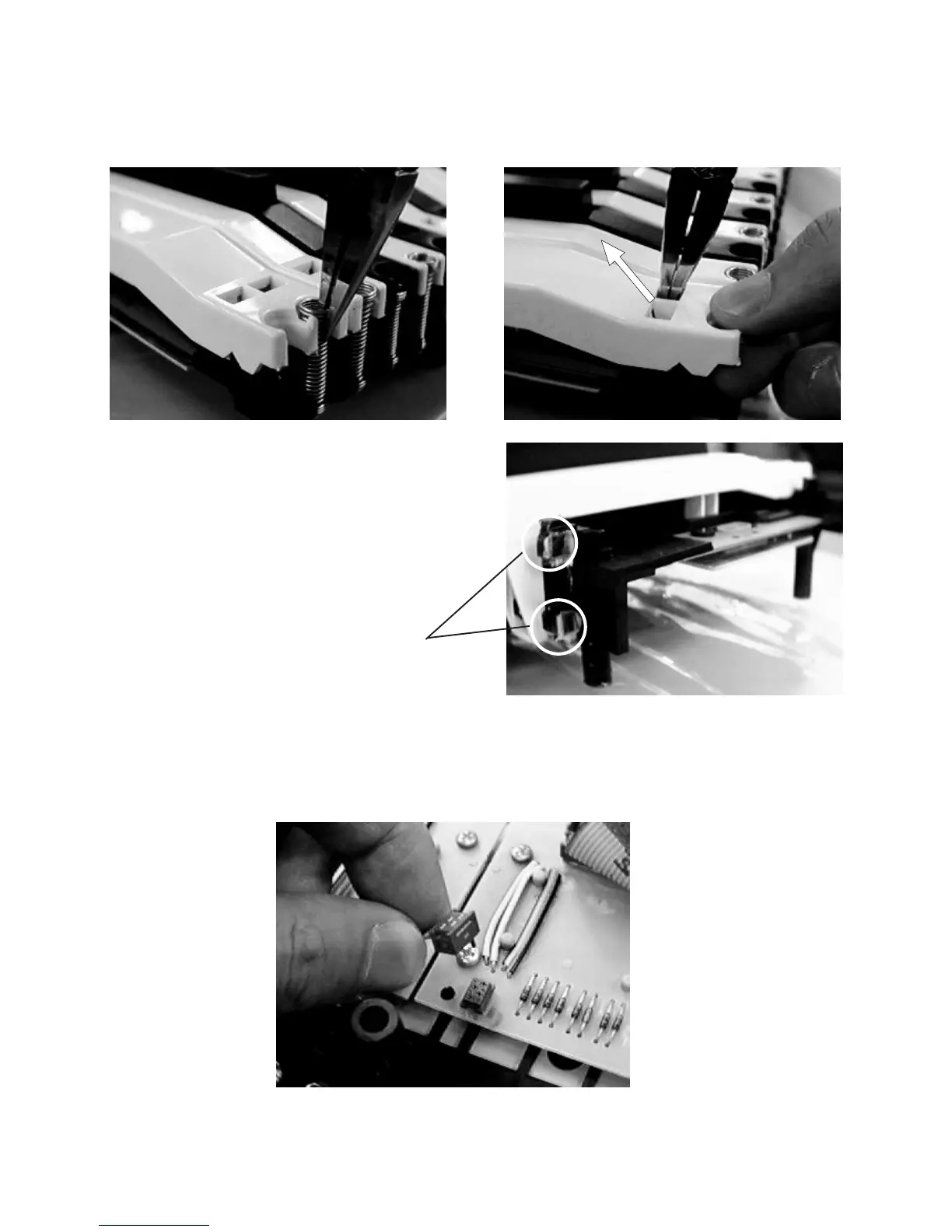

5. Disassembling keys
5-1. Remove a key spring.
5-2. Use a long-nose plier, pressing the hook, lift the key.
Apply grease G501
6. Disassembling keyboard PCBs
6-1. Turn around the keyboard unit to face the PCB up.
6-2. Disconnect the connector at middle of the keyboard.
6-3. Remove screws on keyboard PCBs
