— 11 —
2
3
5
SR
5
SL
5
CL
5
CR
1
1
S
4
■
T

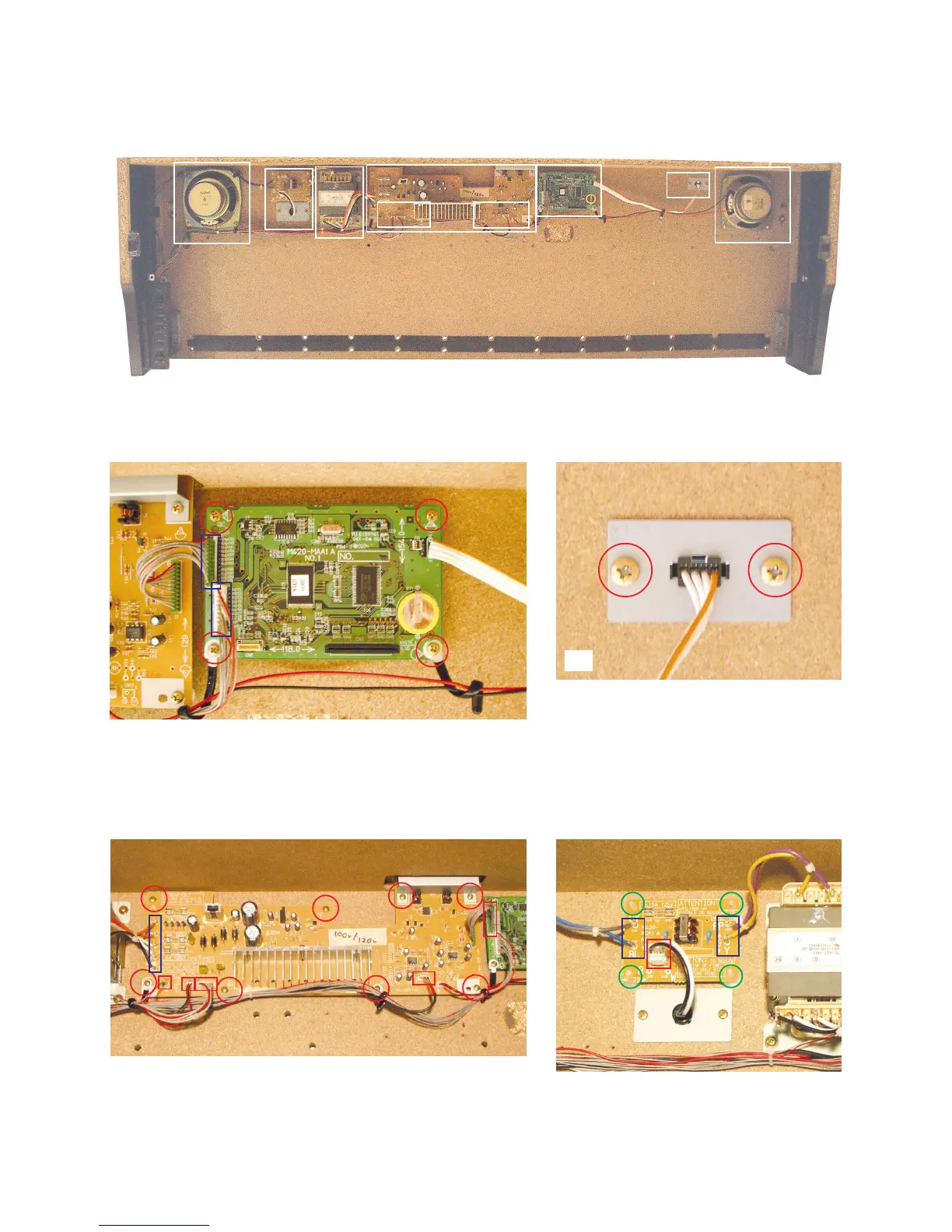

o remove the PCB
2
.
T
o remove the M420-PSA1 PCB
Remove eight screws, five connectors, and five lead wires.
1
.
T
o remove the M420-MAA1 PCB
Remove six screws and two connectors.
S
3
.
T
o remove the M420-ACA1U PCB
Remove four lead wires, one
connector
, and four clips.
12
14
Table of Contents
Table of Contents
2
Specifications
3
Block Diagram
4
Circuit Description
5
Printed Circuit Board
6
Disassembly
8
Diagnostic Program
17
Schematic Diagrams
19
Exploded View
28
Parts List
30
