— 5 —
Pin No. Terminal In/ Out Function
1, 2 TEST1, TEST2 Not used. Connected to ground.
Power ON reset terminal. When the power switch is
3 RESET In turned on, the terminal receives a low level signal and
the internal circuits of the LSI are initialized.
4 AVDD In +5 V sorce for the built-in DAC
5 OUT Out Sound waveform output
6 AGND In Ground (0 V) source for the built-in DAC
7 GND In Ground (0 V) source
8 COSI In 21.725 MHz clock pulse input
9 COSO Not used.
10 VDD In +5 V source
11 ~ 18 KI0 ~ KI7 In Input terminals from keys and switches
19, 20 KO11, KO10 Not used.
21 ~ 30 KO9 ~ KO0 Out Key and switch scan signal outputs

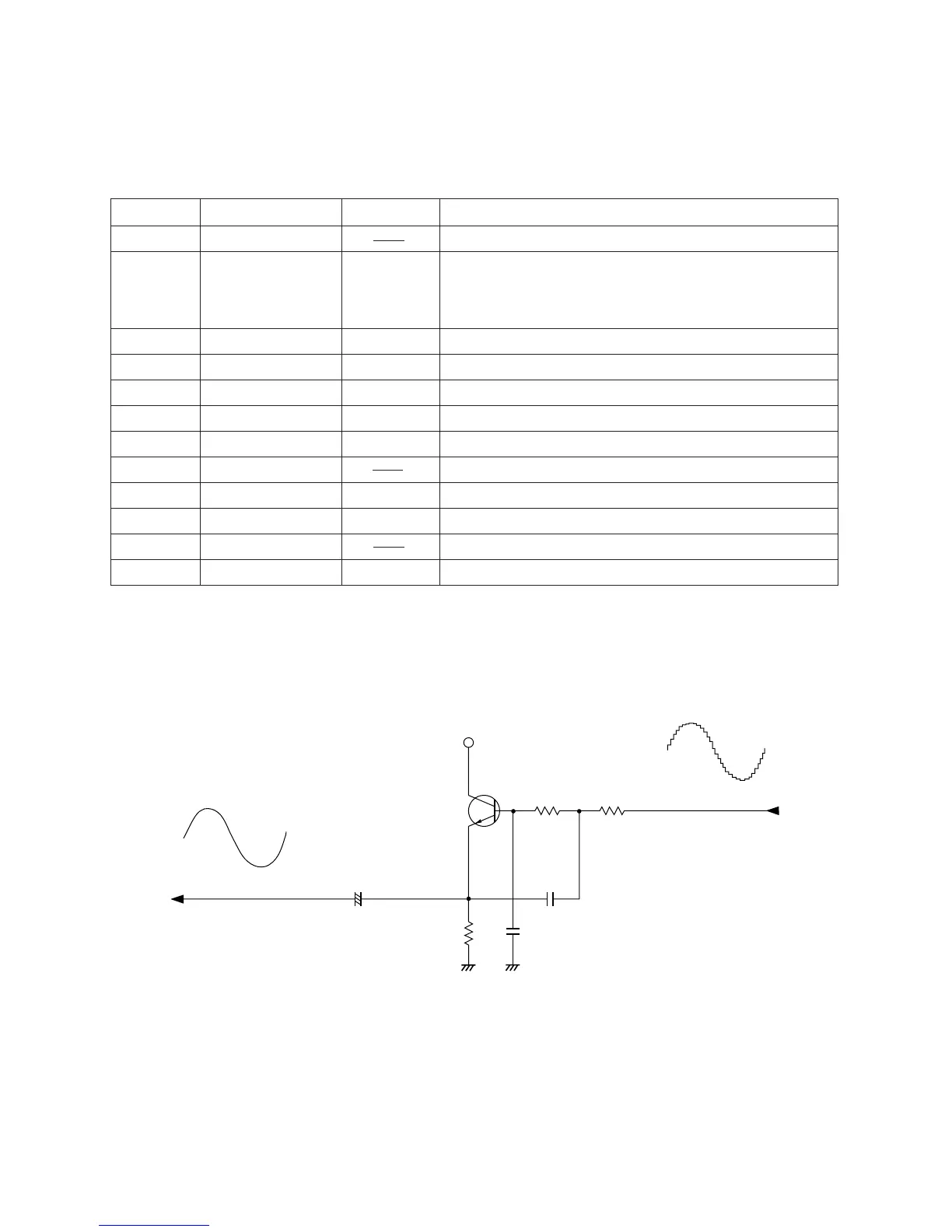

CPU (LSI201: MSM6387-13)
The CPU contains a sound data ROM and a DAC (Digital to Analog Convertor), and it provides a sound
waveform in accordance with the pressed key and the selected tone.
The following table shows the pin functions of LSI201.
FILTER BLOCK
Since the sound signal from the CPU is a stepped waveform, the filter block is added to smooth the
waveform.
AVDD
C203
Q201
2SC1740SQ
R202
C202
AG
AG
R204
R203
C201
To main volume
From CPU
To Next Page
