– 16 –
10. To remove the console PCBs (M805-CNA1, M805-CNB1).

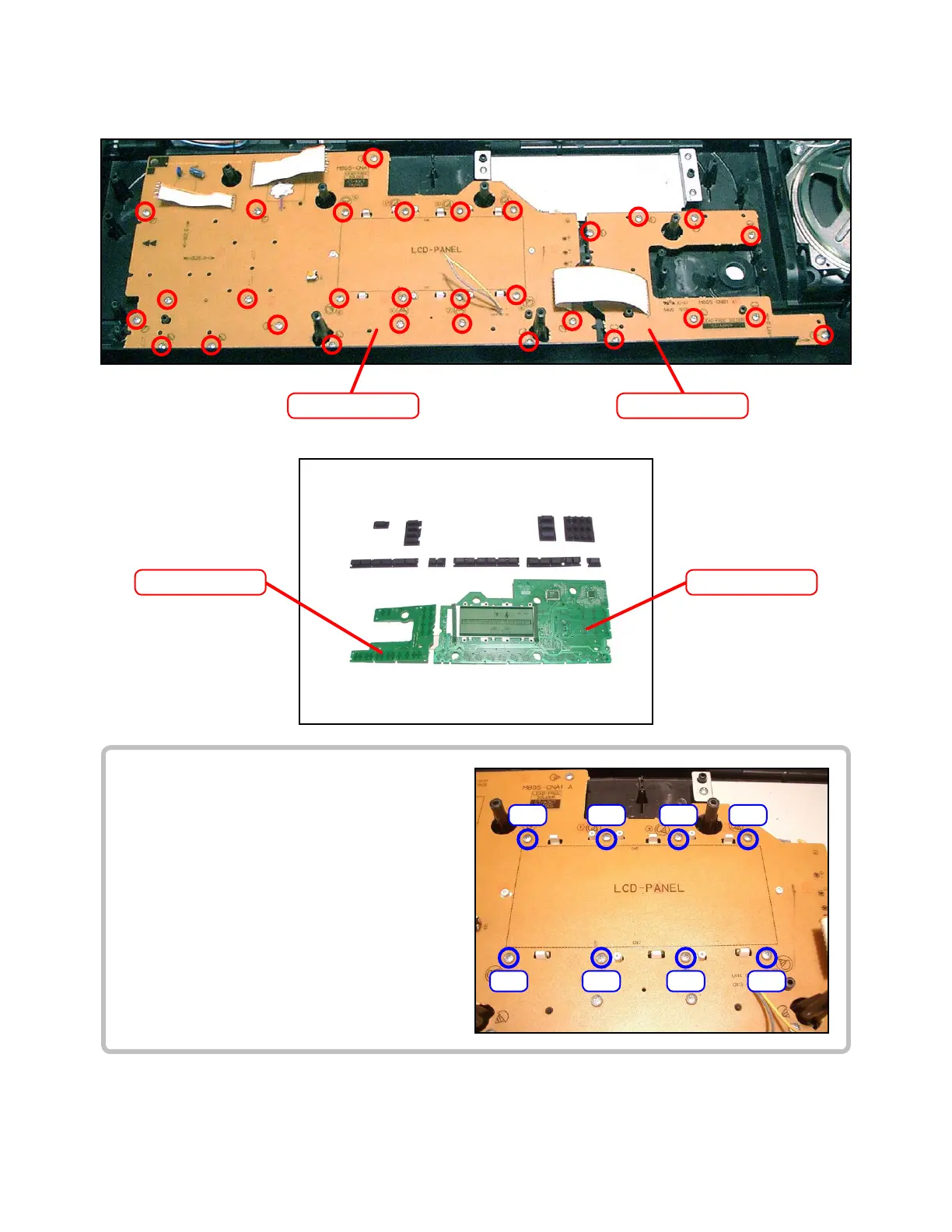

10-1. Remove 30 screws and then the PCBs (M805-CNA1 and M805-CNB1).
M805-CNA1
M805-CNB1
10-2. Remove the rubber keys.
M805-CNB1
M805-CNA1
Caution while assembling:
8 screws fixating the LCD unit must be screwed
on in adesignated order.When assembling, be
sure to tighten the screws in theorder from 1 - 8
shown in the photo.Failing to do so may cause
display malfunctions.
5 1 3 7
6 4 2 8
