– 17 –

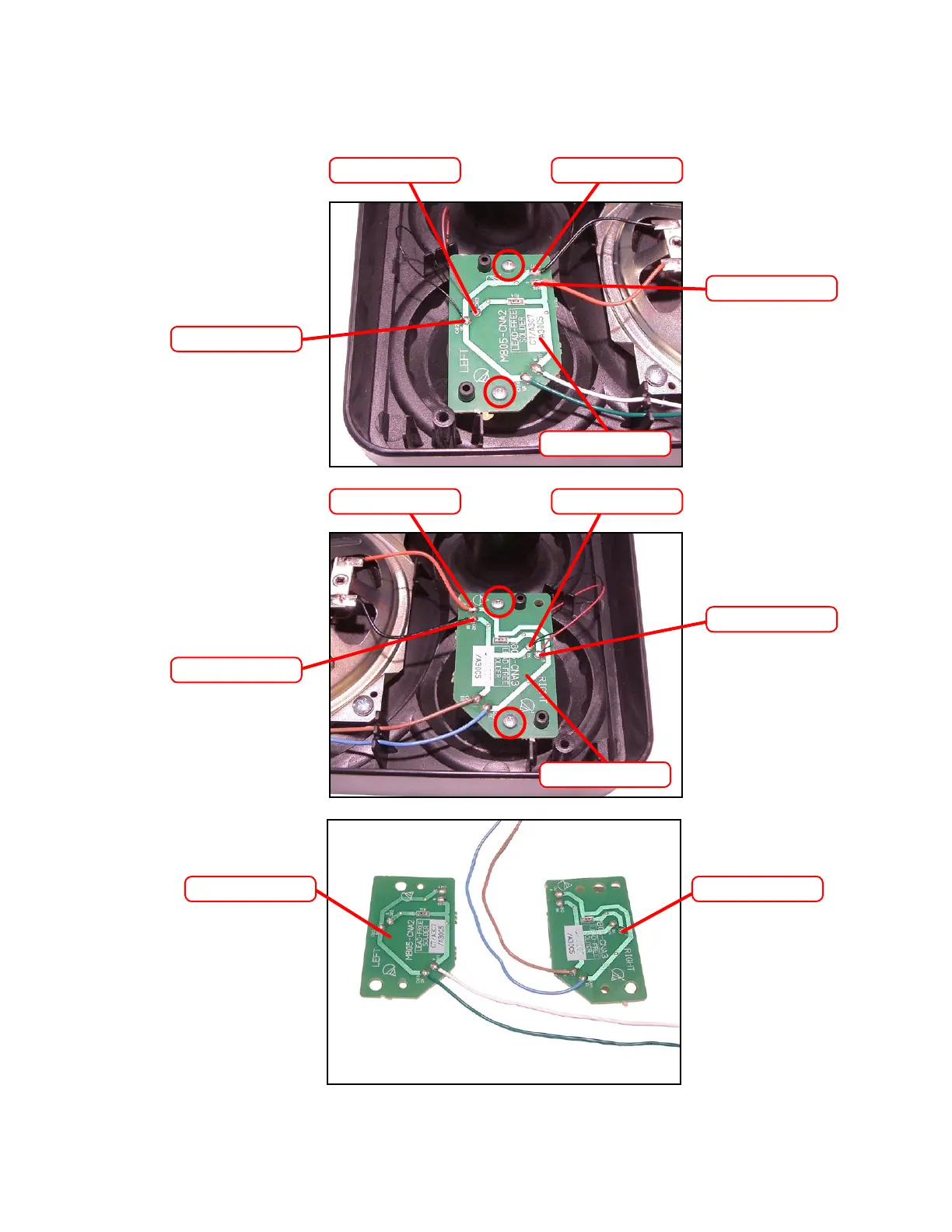

11. To remove the console PCBs (M805-CNA2, M805-CNB3).
11-1. Remove eight lead wires by soldering.
11-2. Remove four screws and then the PCBs (M805-CNA2 and M805-CNB3).
Lead wire (Red)
Lead wire (Black)
Lead wire (Red)
M805-CNA2
Lead wire (Black)
Lead wire (Red)
Lead wire (Black)
Lead wire (Red)
M805-CNA3
Lead wire (Black)
M805-CNA3M805-CNA2
