— 14 —
DIAGNOSTIC PROGRAM
■ Initial Setup
a. Connect an AC cord.
b. Connect a Pedal cord.
c. "MODE" switch: NORMAL
d. "Main" volume: MAX
e. Connect a MIDI cable (In-Out).
Note: If there is no pedal or MIDI cable, pedal or MIDI check can be skipped.
■ How to start diagnostic program
a. While pressing “0” button, turn “POWER” switch ON.
b. Confirm “00” message on top of LCD.
c. If everything is OK, release “0” buttons.
d. As for the details of each diagnostic procedure, refer to the attached sheets.
NOTE:

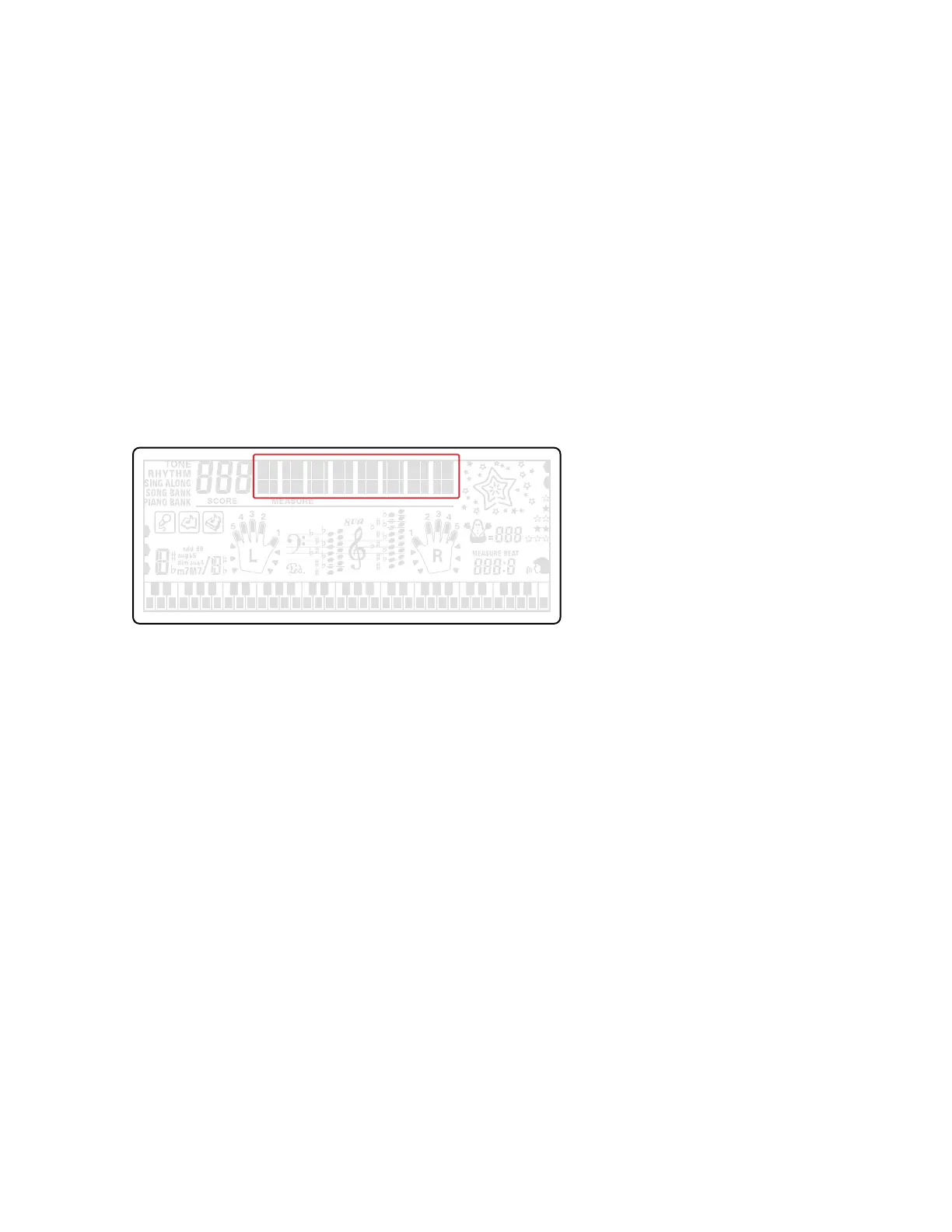

Refer to the figure below for the LCD messages that appear during the diagnostic program.
DP3
