DIAGNOSTIC PROGRAM
■ To enter diagnostic mode
1. While pressing down “0” and “ACCOMP CHORD MODE” buttons, press “POWER” button for turning
on.
2. The instrument is set in diagnostic mode and display indicates “Test”.
■ Button check
1. Press “0” button.
2. Display indicates “Console”.
3. Press buttons in the following order
Display shows the button number to be pressed. When the pressed button functions properly, the instru-
ment emits a verification signal and indicates next button number.
If the button malfunctions, an error alarm sounds and display indicates “Cons ER”.
When wrong button is pressed, the alarm sound is also emitted. In that case, re-press the correct button.

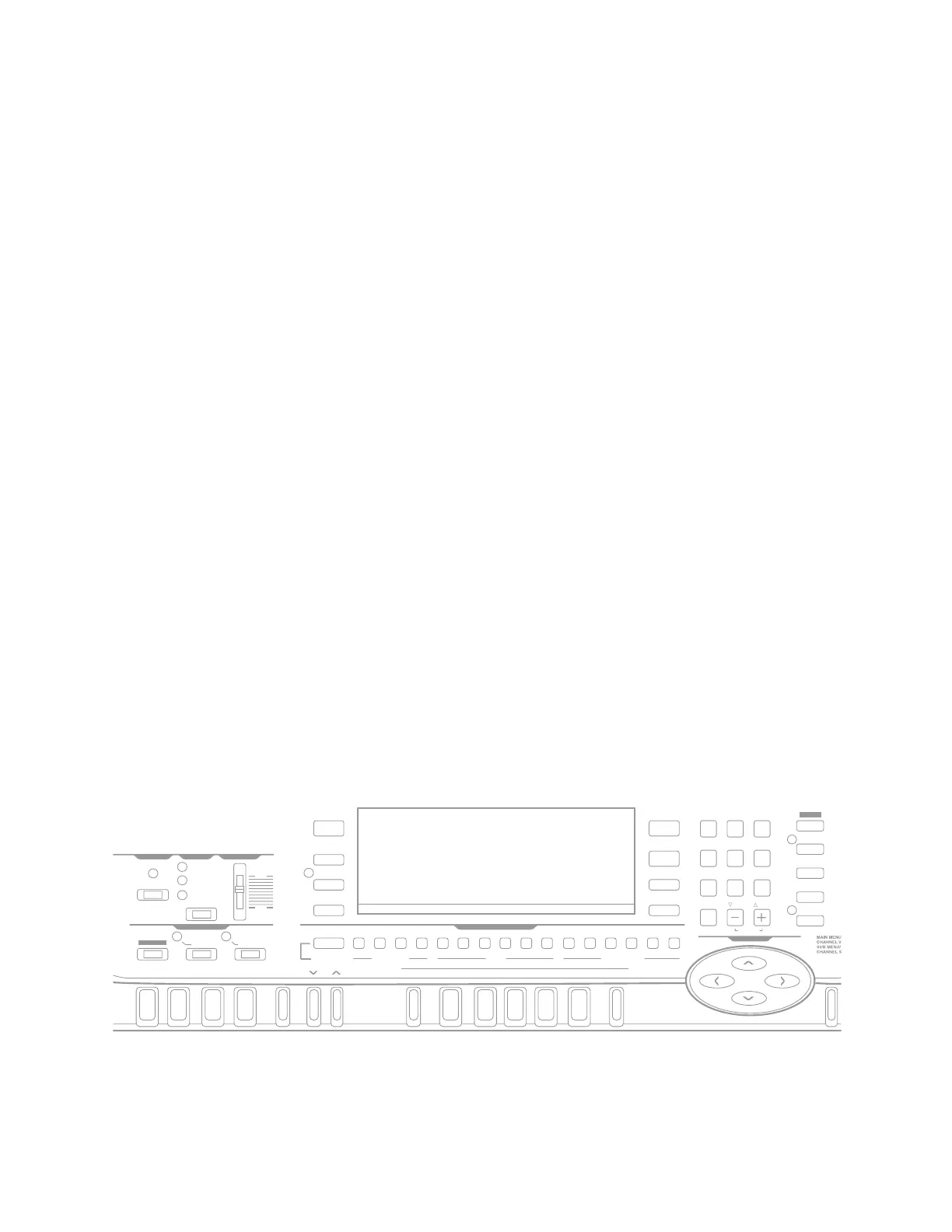

16 CHANNEL MIXER
TEMPO
REGISTRATION
BANK A B C D E STORE
EXTERNAL CH1
UPPER1
INTERNAL
MIXER SELECT TONE EXPANDER ACCOMP SEQUENCER TRACK
DSP
CONTRAST
FREE
SESSION
ONE TOUCH
PRESET
TONE
RHYTHM
LAYER/
AUTO HARMONIZE
SPLIT
CH2
UPPER2
CH3
LOWER1
CH4
LOWER2
CH5
ACC VOL.
CH6
CHORD1
CH7
CHORD2
CH8
CHORD3
CH9
BASS
CH10
RHYTHN
CH11
TR1
CH12
TR2
CH13
TR3
CH14
TR4
CH15
TR5
CH16
0
1
4
7
2
5
8
3
6
9
TR6
CURSOR
SYNTH
DELETE
/NO /YES
DISK
ENTER
TOUCH
RESPONSE
TRANSPOSE/
TUNE/MIDI
DEMO
POWER MODE
SEQUENCER
FULL RANGE
CHORD
FINGERED
SONG
INTRO
NORMAL/
FILL-IN
VARIATION/
FILL-IN
SYNCHRO/
ENDING
START/
STOP
PATTERN
CASIO CHORD
VOLUME
MAX
MIN
RECORD
4
)
1 2 3
5 6 7 8 9 0 A B C D E F G s
p r
o
q
x
b
c j k
d i l
e h m
f g n
a
_
]
H
I
J
K
L M N O P Q R S T U V W X Y Z [ \
w
v
u
t
) MODE button
1 RECORD button
2 SONG button
3 PATTERN button
4 INTRO button
5 NORMAL/FILL-IN
button
6 VARIATION/FILL-IN
button
7 SYNCHRO/ENDING
button
8 START/STOP button
9 TEMPO button down
0 TEMPO button up
A BANK button
B REGISTRATION
buttons A
C REGISTRATION
buttons B
D REGISTRATION
buttons C
E REGISTRATION
buttons D
F REGISTRATION
buttons E
G STORE button
H DSP (digital effect)
button
I CONTRAST button
J FREE SESSION
button
K ONE TOUCH
PRESET button
L MIXER SELECT
button
M CHANNEL button
CH1
N CH2
O CH3
P CH4
Q CH5
R CH6
S CH7
T CH8
U CH9
V CH10
W CH11
X CH12
Y CH13
Z CH14
[ CH15
\ CH16
] SPLIT button
_ LAYER/AUTO
HARMONIZE button
a RHYTHM button
b TONE button
c Number key 7
d Number key 4
e Number key 1
f Number key 0
g Number key –
h Number key 2
i Number key 5
j Number key 8
k Number key 9
l Number key 6
m Number key 3
n Number key +
o Cursor key Up
p Cursor key Left
q Cursor key Down
r Cursor key Right
s ENTER button
t TOUCH RESPONSE
button
u MIDI button
v TRANSPOSE/
TUNING button
w SYNTH button
x DEMO button
