– 38 –
DT-X200/DT-X8

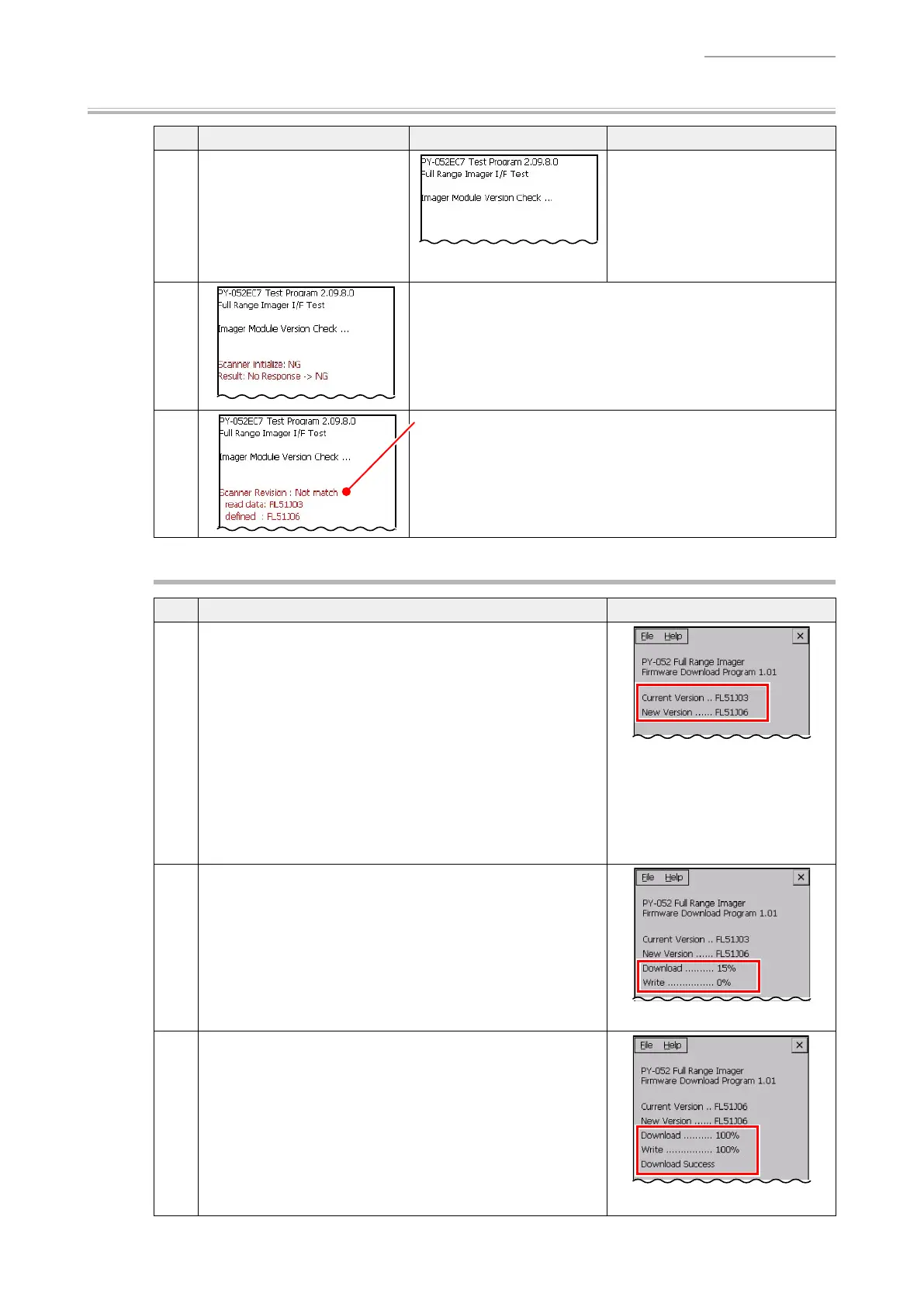

21. Full Range Imager I/F (UART)
No. Operation Display Test Details
1
Select
[5].Full Range Imager
(UART)” from All Test MENU-7
screen.
Imager module version check is
carried out to see whether the
version is correct or not.
If OK:
The screen returns to the Menu
screen.
2
If any problem:
The screen shown on the left is displayed.
Pressing the “Enter” key returns you to the Menu screen.
3
If “Scanner Revision : Not match” appears, update the FRI
Firmware.
Updating the FRI Firmware
No. Operation Display
1
Start up “FRIWriteFirm.exe” under \\My Device\FlashDisk\DIAG\
FRIFirmTool.
Be sure that the following two fi les are in the folder in which
FRIWriteFirm.exe is saved.
▪ FriFirm_FL51J06.bin
▪ FriBoot.bin
* Do not rename FRIWriteFirm.exe.
* Do not turn off the power of the terminal or carry out reset
operation while updating the fi rmware. If by any chance you
did so, carry out fi rmware update again after resetting.
The fi rmware versions before and
after updating are displayed as
shown in the above screen.
(The versions shown in the screen
diff er from the actual ones.)
2
Press the “Enter” key.
Firmware updating starts.
A progress ratio of updating is displayed in the center of the
screen.
Updating will be completed in about 4 minutes.
3
Updating is completed when the progress ratio reaches 100%.
At this time, the Indicator 2 lights in blue.
Check that the current version and the new version are the
same. Then terminate the program with the [CLR] key.
