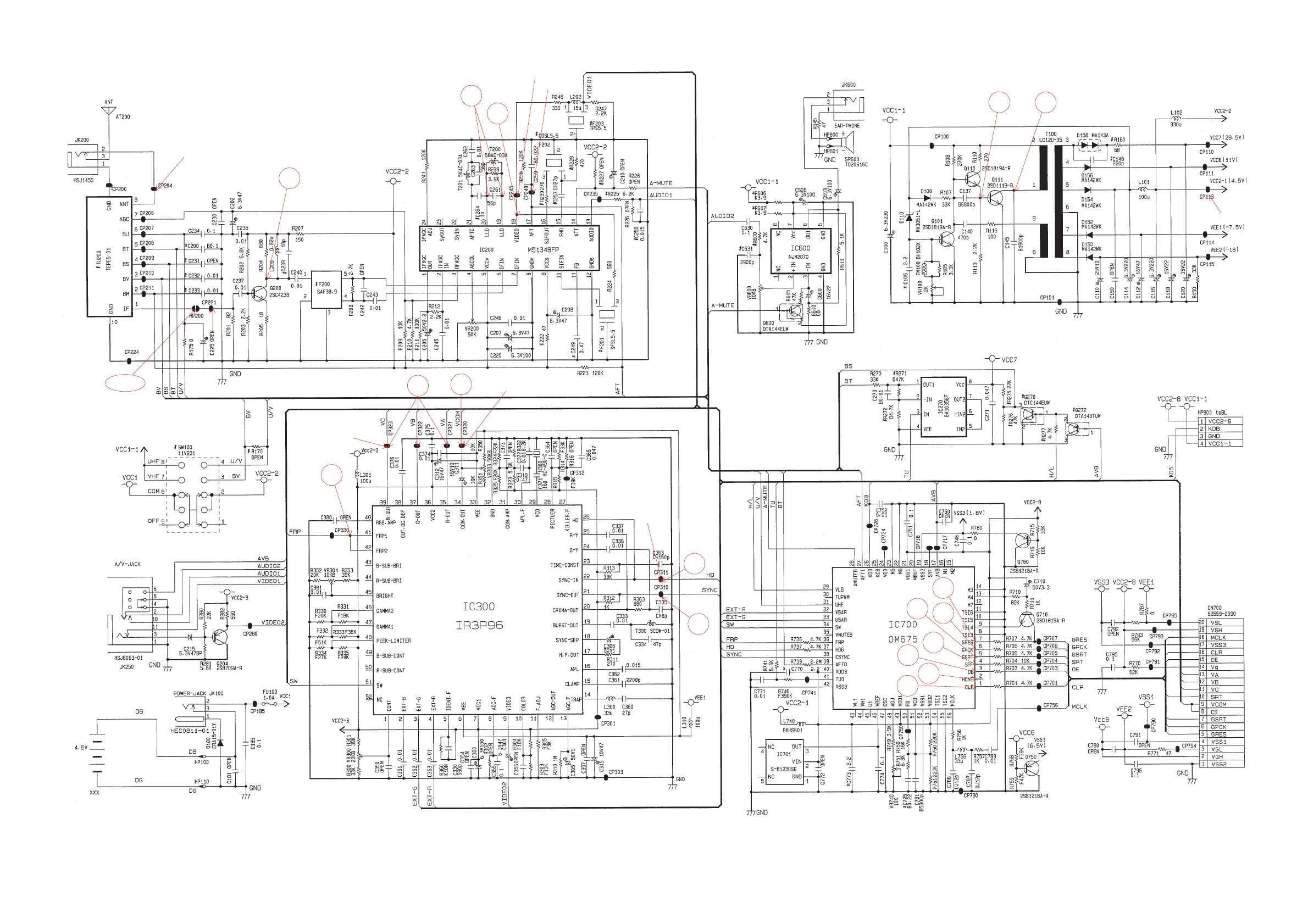

SCHEMATIC DIAGRAMS
LINEAR (EV-500C/I/N)
Notes:
1. All resistance values are indicated in "ohms" (k=10
3
ohms, M=10
6
ohms).
2. All capacitance values are indicated in "µF" (p=10
-6
µF).
3. All inductance values are indicated in "µH."
TP7
TP2
1
IF Pad
3
TP3
TP4
4
9
8
TP1
12
13
14
15
16
10
11
TP6
6
2
TP5
5
17
TP8
7
