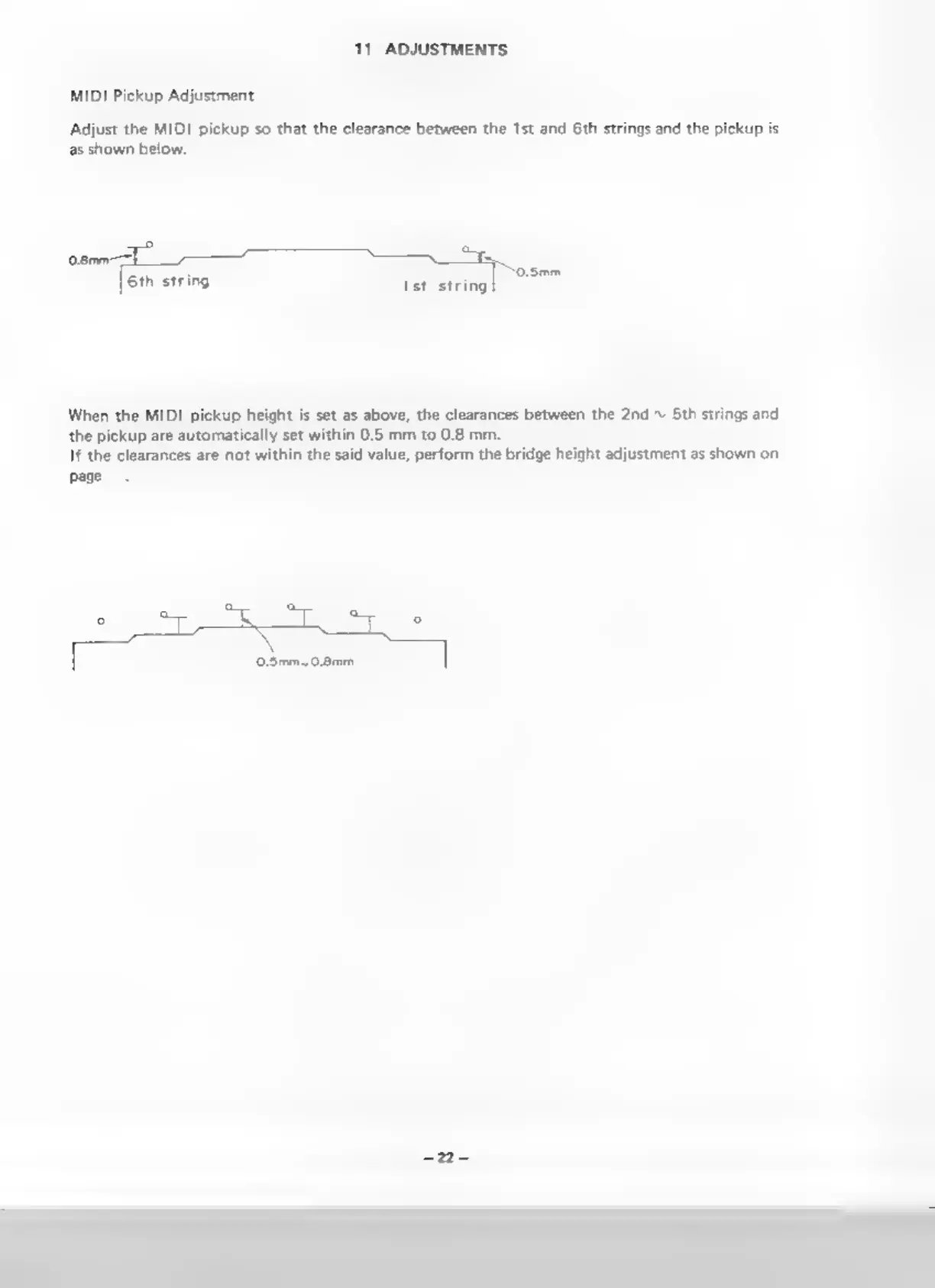

11 ADJUSTMENTS
MIDI Pickup Adjustment
Adjust the MIDI pickup so that the clearance between the 1st and 6th strings and the pickup is
as shown below.
ae “0.55
6th string Ist string
When the MIDI pickup height is set as above, the clearances between the 2nd ~ 5th strings and
the pickup are automatically set within 0.5 mm to 0.8 mm.
If the clearances are not within the said value, perform the bridge height adjustment as shown on
page
