Casio SE-C3500 Service Manual

– 12 –
SE-S400/SE-S800/PCR-T500/PCR-T520/SE-C450
SE-S3000/SE-S900/PCR-T2300/PCR-T2400/SE-C3500

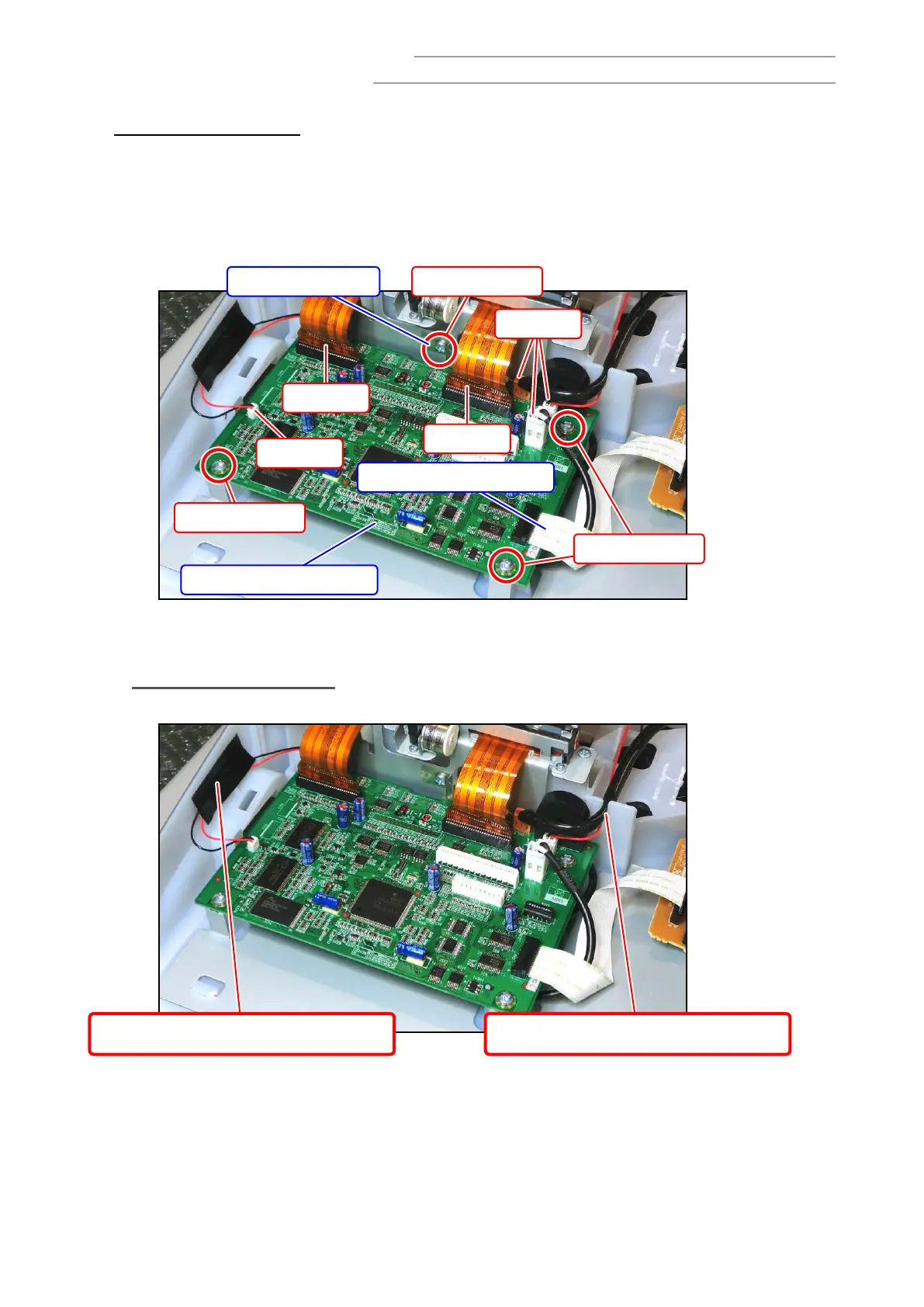

E. PCB ASSY/E291-1
E-1. Disconnect two FPCs.
E-2. Disconnect the CABLE/FFC JOINER.
E-3. Disconnect four connectors.
E-4. Undo one screw and then remove the HOLDER/IC.
E-5. Undo three screws.
FPC
Connector
FPC
Connectors
CABLE/FFC JOINER
Screw (S4)
Screws (S4)
Screw (S5)HOLDER/IC
PCB ASSY/E291-1
NOTES ON ASSEMBLY
Secure lead wires in place with tape. Run the cable through this groove.
