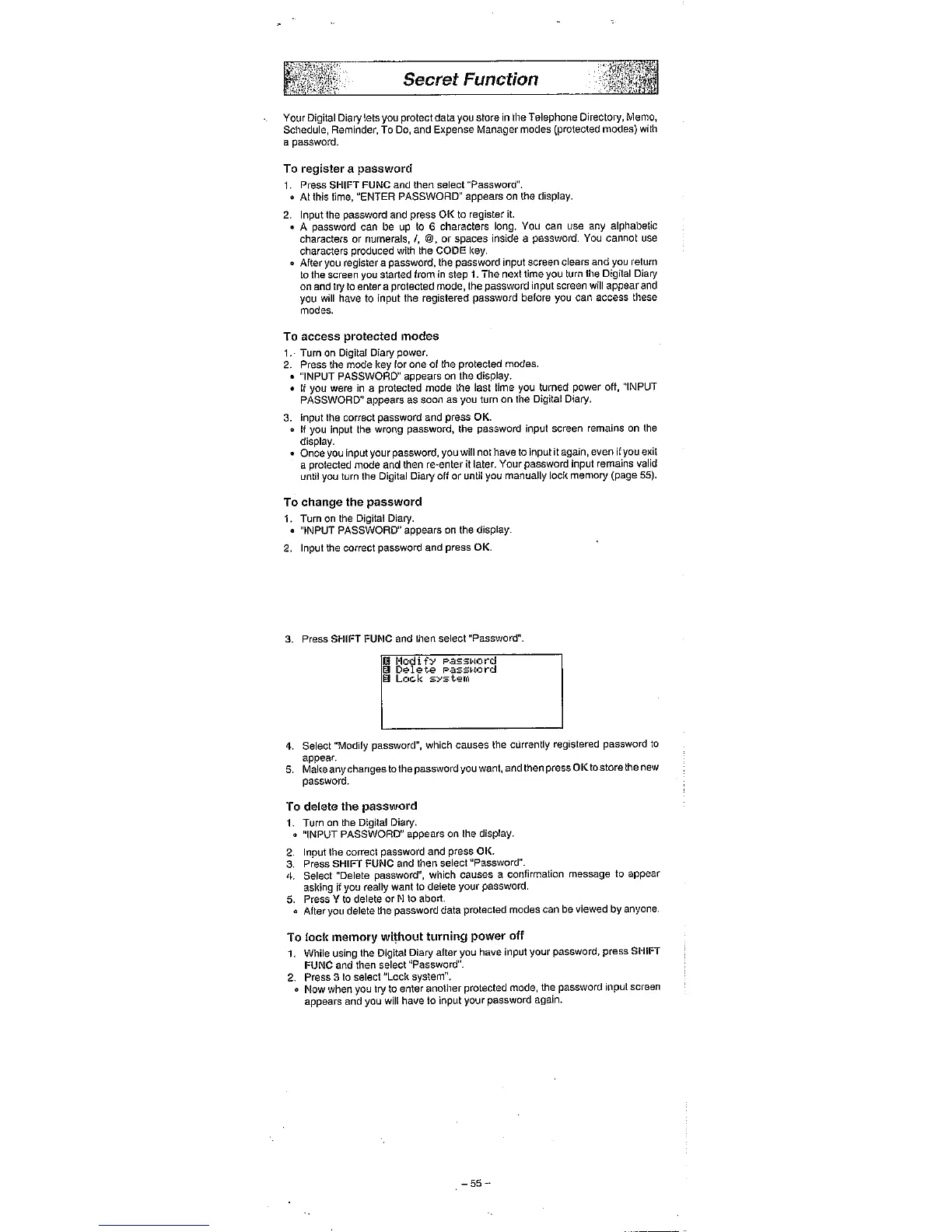

9. PARTS LIST
N Item Code No. Parts Name Specification Applicable Q R
Z876-1 ASS'Y
* There are two type of Z876-1 ASS'Ys in SF-5780E--A type & B type.
U7
2114 5771 TTL-IC CMO-09-HC373 Common
1
B
U8
2114 5770 TTL-IC CMO-09-HC273 Common
1
B
U62
2012 5520
LSI
CMO-02-128NC-01 SF-5580E
1
B
* U42, U62
2012 5520
LSI
CMO-02-128NC-01 SF-5780E, A-type
2
B
* U62
2012 5519
LSI
CMO-02-256SN-01 SF-5780E, B-type
1
B
U42, U62
2012 5519
LSI
CMO-02-256SN-01 SF-5980E
2
B
XT1
2590 2691 Oscillator RER-01-12 Common
1
B
XT2 2590 2690
Crystal oscillator
QUA-02-26
Common
1
B
Q30 2259 2712 Transistor TRR-01-M6 Common
1
C
D2~D17
2390 3005 Diode DIO-01-LS4148 Common
16
C
NL3
6420 1950 Coil C01-02-4615 Common
1
C
The following electronic parts will be not supplied from CASIO.
R7
Chip resister(1.5KW) RES-01-1.5K Common
1
R15~16
Chip resister(1MW) RES-01-1M Common
2
R24
Chip resister(100KW) RES-01-100K Common
1
R30
Chip resister(220W) RES-01-220 Common
1
R31
Chip resister(10KW) RES-01-10K Common
1
C1~2
Chip capacitor(33pF) CAP-01-33 Common
2
C3~4
Chip capacitor(18pF) CAP-01-18 Common
2
C7~14, C16~21,
Chip capacitor(0.1mF) CAP-01-01 Common
16
C31, C34
C15
Electrolytic capacitor(10mF) CAP-02-10-25 Common
1
C30
Chip capacitor(15nF) CAP-01-0015 Common
1
C32
Chip capacitor(68pF) CAP-01-68 Common
1
C33
Chip capacitor(1mF) CAP-02-1-50 Common
1
Z876-2 ASS'Y
U2
2114 5768 IC CMO-14-80715 Common
1
C
U3
3065 0708 IC CMO-10-R1501B Common
1
C
Q2, Q10
2259 2713 Transistor TRR-01-NPNL6 Common
2
C
D1
2390 3005 Diode DIO-01-LS4148 Common
1
C
D20
2390 3004 Schottky diode DIO-03-BAT43 Common
1
C
L2
6419 6430 Coil COI-02-4630 Common
1
C
L4
3122 3509 Inductor IND-01-120 Common
1
C
1
3502 2225 Mini jack JCK-01-1169 Common
1
C
2
6419 6460 Battery plate + BAC-01-988+ Common
1
C
3
6419 6470 Battery plate - BAC-01-988- Common
1
C
The following electronic parts will be not supplied from CASIO.
R1
Chip resister(100KW) RES-01-100K Common
1
R8
Chip resister(1kW) RES-01-1K Common
1
R9
Chip resister(10KW) RES-01-10K Common
1
R17
Chip resister(1MW) RES-01-1M Common
1
R18, R60
Chip resister(100W) RES-01-100 Common
2
Notes: N – New parts R – A : Essential
Q – Quantity used per unit B : Stock recommended
R – Rank C : Others
X : No stock recommended
