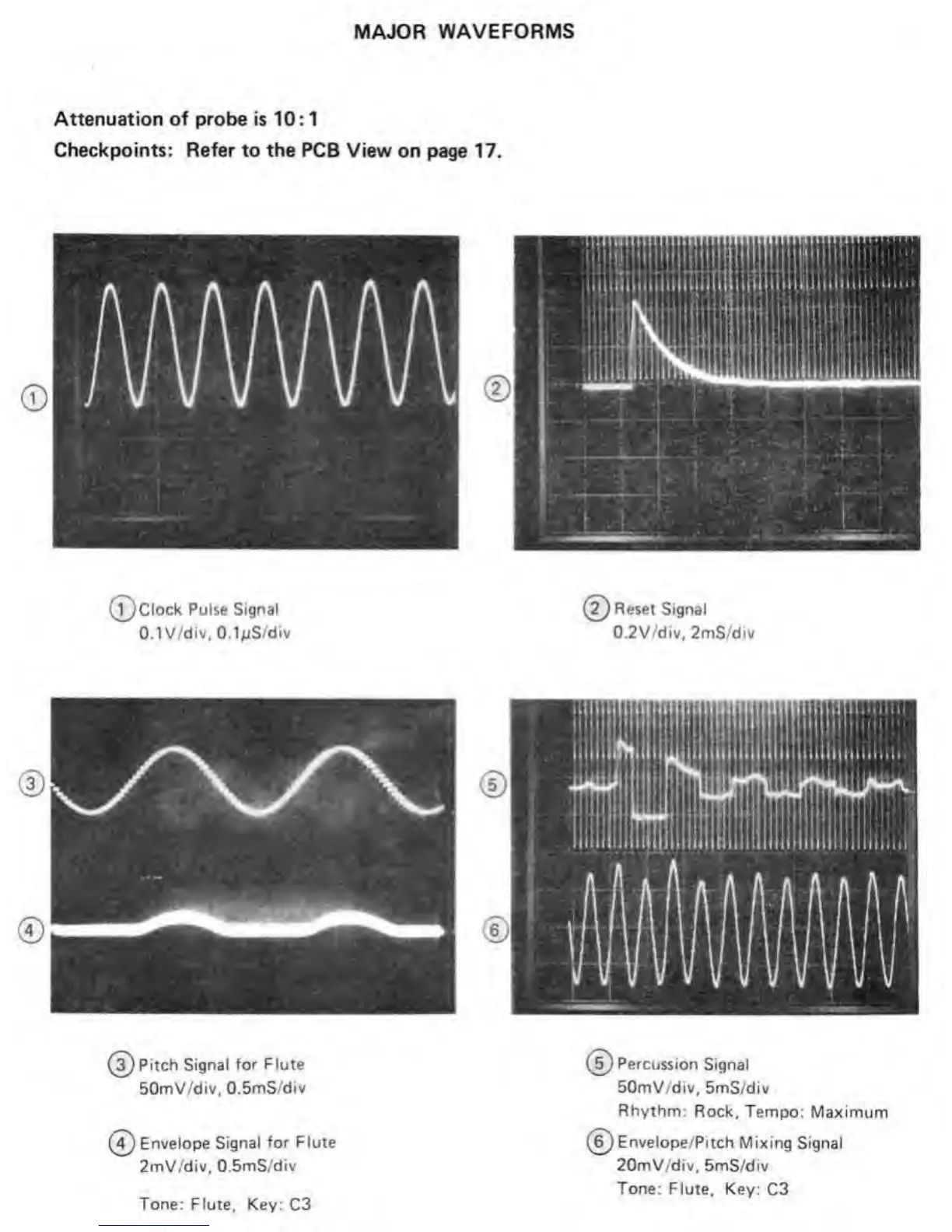

MAJOR
WAVEFORMS
Attenuation
of
probe
is
10
:
1
Checkpoints:
Refer
to
the
PC8
View
on
page
17.
^^Clock
Pulse
Signal
0,1V/div,
0.1
mS/<Jiv
Reset
Signal
0-2V/div,
2mS/div
Pitch
Signal
tor
Piute
50mV/div,
0-5mS/div
Envelope
Signal
for
Flute
2mV/div.
0.5mS/div
Percussion
Signal
SOmV/div,
5mS/div
Rhythm:
Rock.
Tempo:
Maximum
Envelope/Pitch
Mixing
Signal
20mV/div.
SmS/div
Tone:
Flute.
Key:
C3
Tone:
Flute,
Key:
C3
13
15
