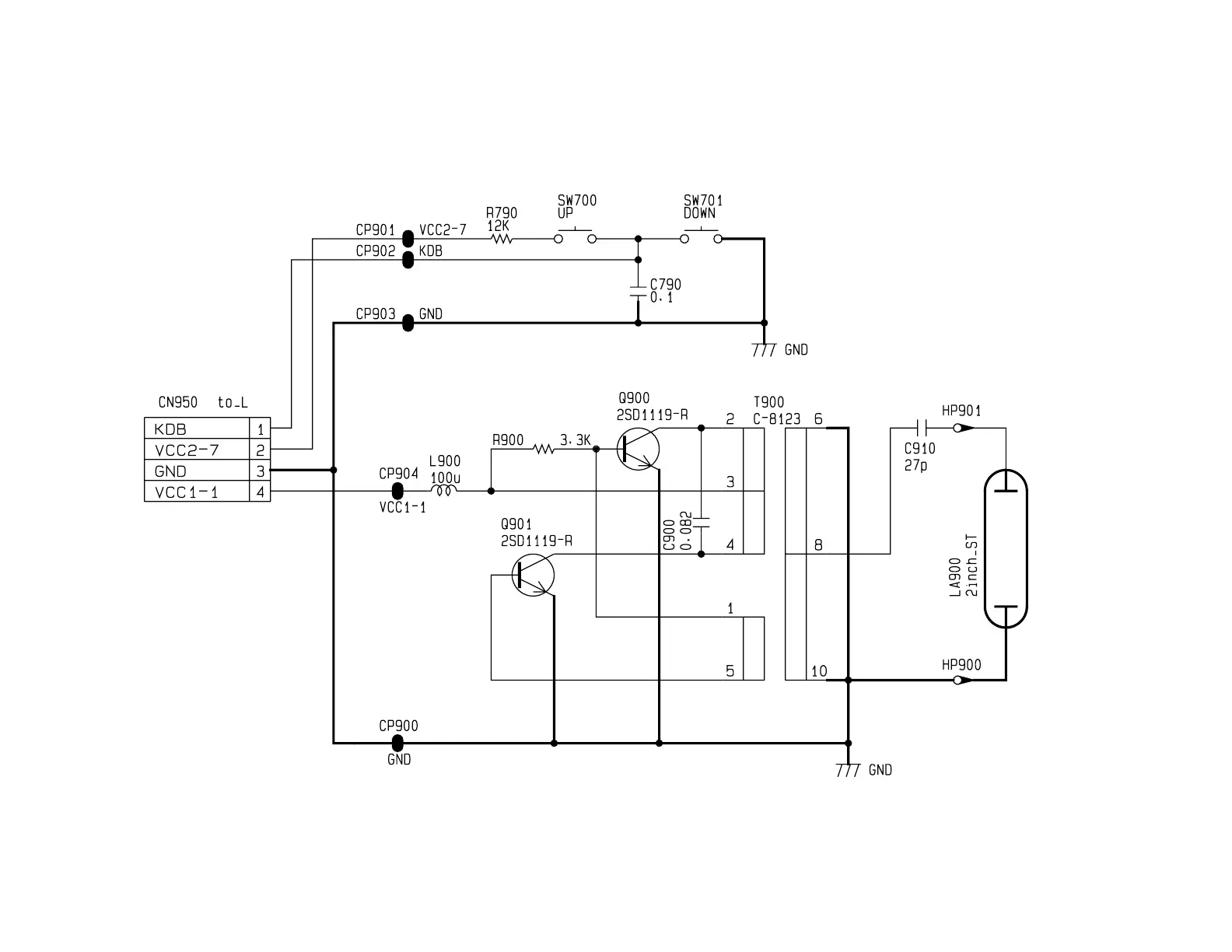

Casio TV-880B - Back Light Schematic Diagram

— 12 —
Notes:
1. All resistance values are indicated in "ohms" (k=10
3
ohms, M=10
6
ohms).
2. All capacitance values are indicated in "µF" (p=10
-6
µF).
3. All inductance values are indicated in "µH."
BACK LIGHT
