Casio V-R7100

V-R7000/V-R7100
– 31 –

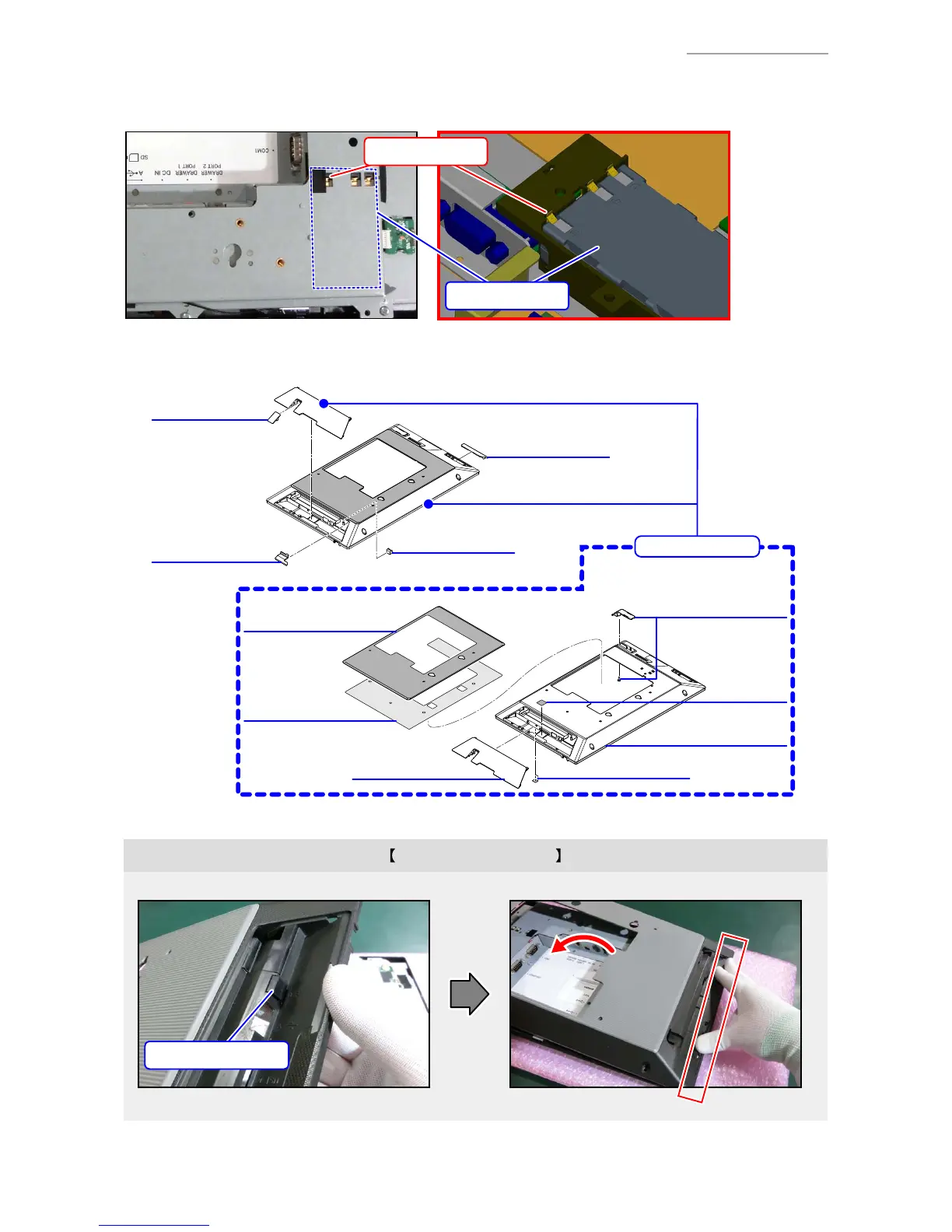

NOTE: Since the BATTERY ASSY is installed, do not let its plus terminal contact the chassis. Doing so can
cause a short circuit and the BATTERY ASSY is damaged.
Plus terminal
BATTERY ASSY
A-5. The parts confi guration of the B-CASE-ASSY is as follows.
COVER/PW-SW (S2)
CASE/BACK
COVER/MCR
BUTTON/OFF
LABEL/SD
FILM/SW
COVER/IF
TAPE/DOUBLE/BP
COVER/JACK
COVER/DP-SW
PANEL/BACK
B-CASE-ASSY
Note on reassembling
• Set the BUTTON/OFF to the case from the inner side, and then assemble the B-CASE-ASSY.
BUTTON/OFF
