Casio VZ-1 - Internal Data Format: Operation and Multi Channel Details; Operation Data 1 Internal Format

3. Operation Data 1

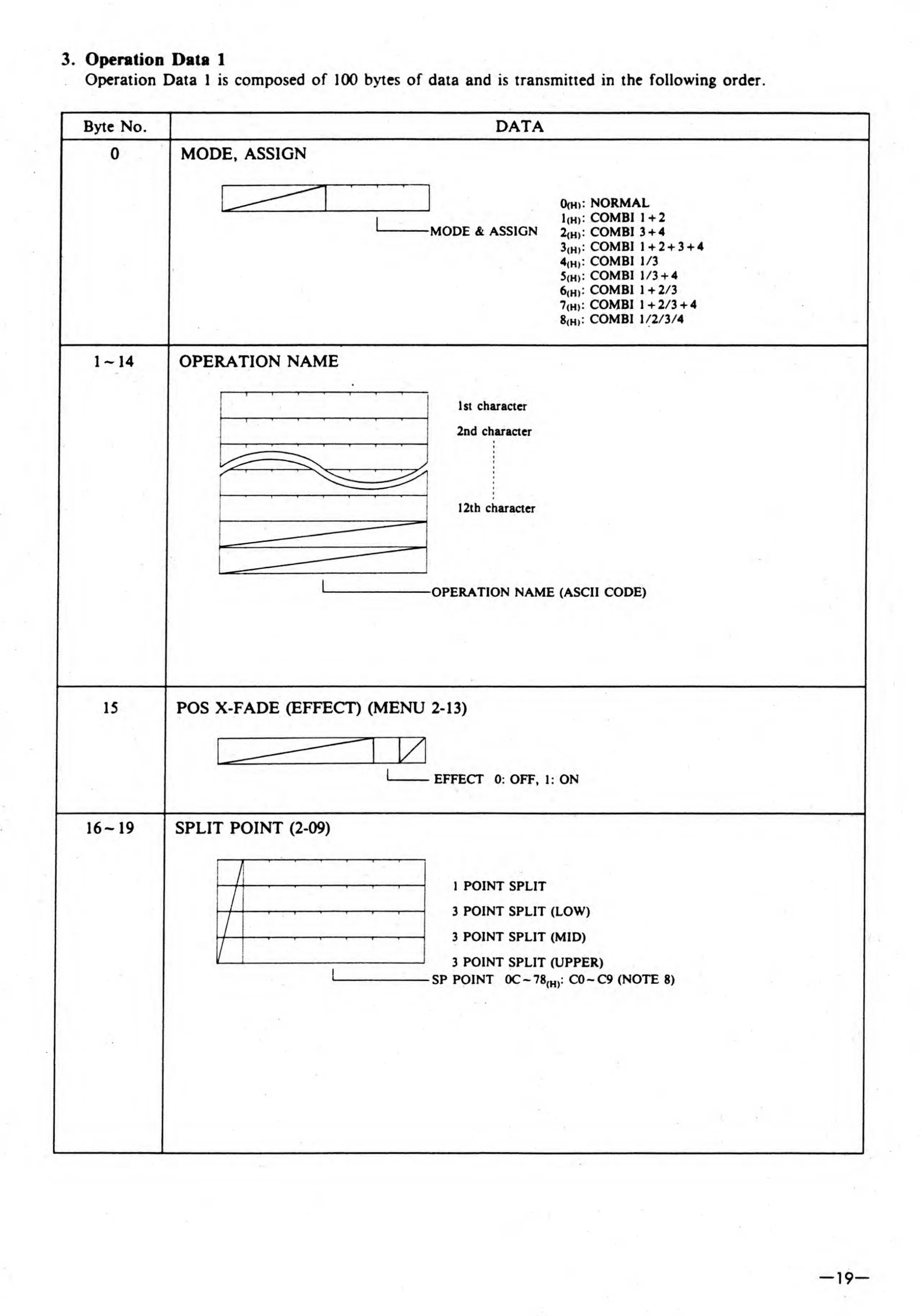

Operation Data 1 is composed of 100 bytes of data and is transmitted in the following order.
Byte No.
DATA
MODE, ASSIGN
MODE & ASSIGN
OPERATION NAME
1st character
2nd character
12th character
0(H): NORMAL
1(H>: COMBI 1+2
2(H): COMBI 3 + 4
3 ( h>: COMBI 1+ 2 + 3 + 4
4(h>: COMBI 1/3
5 ( h>: COMBI 1/3 + 4
6,h): COMBI 1 + 2/3
7(h>: COMBI 1+2/3+ 4
8<h>: COMBI 1/2/3/4
OPERATION NAME (ASCII CODE)
POS X-FADE (EFFECT) (MENU 2-13)
EFFECT 0: OFF, 1: ON
16-19 SPLIT POINT (2-09)
1 POINT SPLIT
3 POINT SPLIT (LOW)
3 POINT SPLIT (MID)
3 POINT SPLIT (UPPER)
SP POINT 0C~78 (H) : C0-C9 (NOTE 8)
