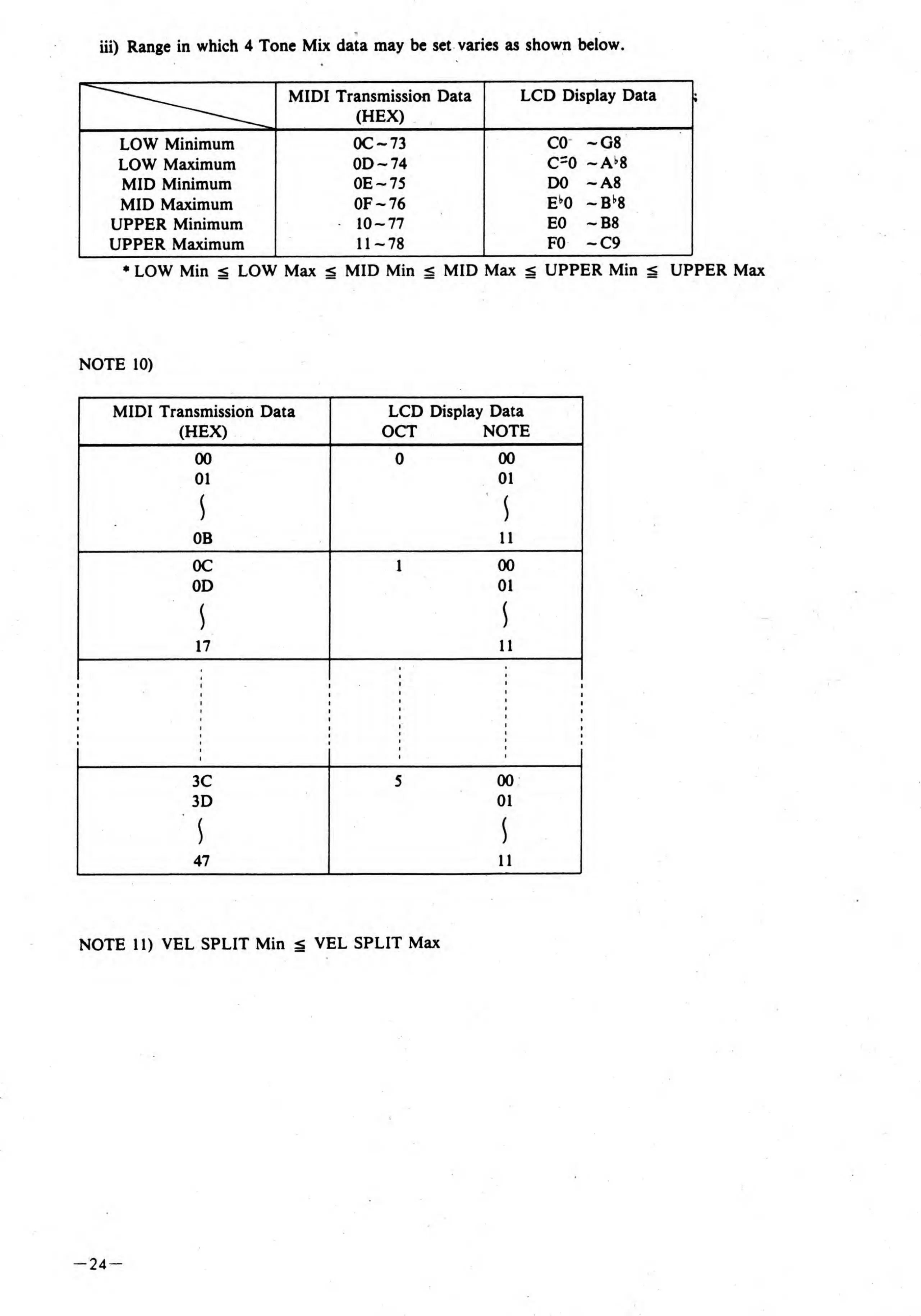

iii) Range in which 4 Tone Mix data may be set varies as shown below.
MIDI Transmission Data
(HEX) ,
LCD Display Data ;
LOW Minimum 0C-73
CO -G8
LOW Maximum
OD-74
C=0 ~ A b 8
MID Minimum
0E-75
DO -A8
MID Maximum
OF— 76
E b 0 ~B b 8
UPPER Minimum
- 10-77 E0 -B8
UPPER Maximum 11-78
F0 -C9
* LOW Min ^ LOW Max ^ MID Min ^ MID Max ^ UPPER Min ^ UPPER Max
NOTE 10)
NOTE 11) VEL SPLIT Min ^ VEL SPLIT Max
- 2 4 -
