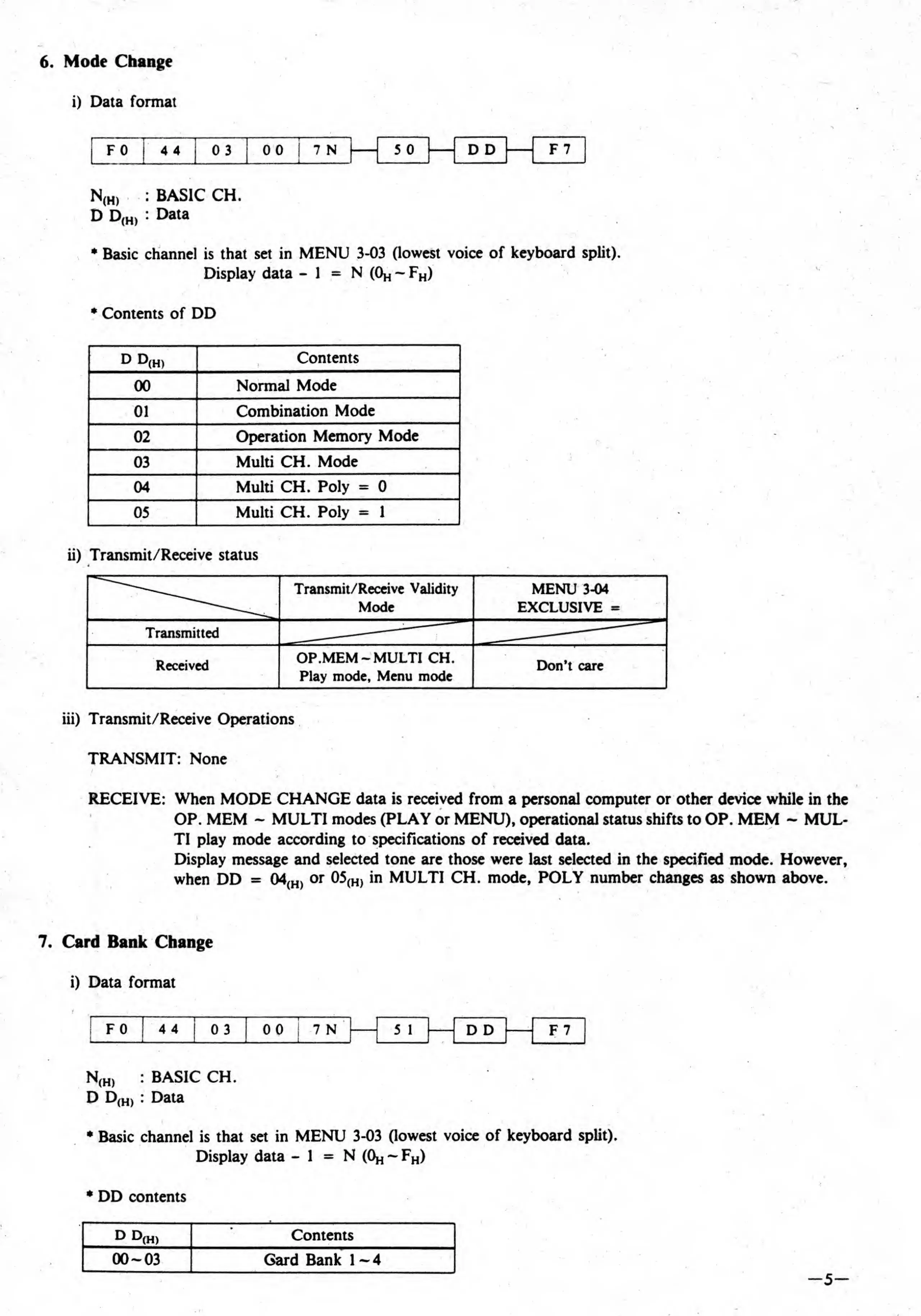

6. Mode Change
i) D ata format
| F0
—
4 4 0 3 0 0
7 N
5 0 D D F 7
N ( h) : BASIC CH.
D D ( h) : Data
* Basic channel is that set in MENU 3-03 (lowest voice of keyboard split).
Display data - 1 = N (0 H - F H )
* Contents of DD
D D(H)
Contents
00
Normal Mode
01
Combination Mode
02
Operation Memory Mode
03
Multi CH. Mode
04 Multi CH. Poly = 0
05
Multi CH. Poly = 1
ii) T ransmit/Receive status
Transmit/Receive Validity
Mode
MENU 3-04
EXCLUSIVE =
Transmitted
___---
_____-—--
Received
OP.MEM - MULTI CH.
Play mode. Menu mode
Don’t care
iii) T ransmit/Receive Operations
TRANSMIT: None
RECEIVE: When MODE CHANGE data is received from a personal computer or other device while in the
OP. MEM - MULTI modes (PLAY or MENU), operational status shifts to OP. MEM - MUL¬
TI play mode according to specifications of received data.
Display message and selected tone are those were last selected in the specified mode. However,
when DD = 04 (H) or 05 (H) in MULTI CH. mode, POLY number changes as shown above.
7. Card Bank Change
i) Data format
! F0
1 ___ 1 _
44
0 3
0 0 7 N
_ 1 _
1 —
5 1
D D
F 7
N
(H)
: BASIC CH.
D D (H) : Data
* Basic channel is that set in MENU 3-03 (lowest voice of keyboard split).
Display data - 1 = N (Oh - F H )
* DD contents
D D (H)
Contents
00-03 Card Bank 1 - 4
—5
