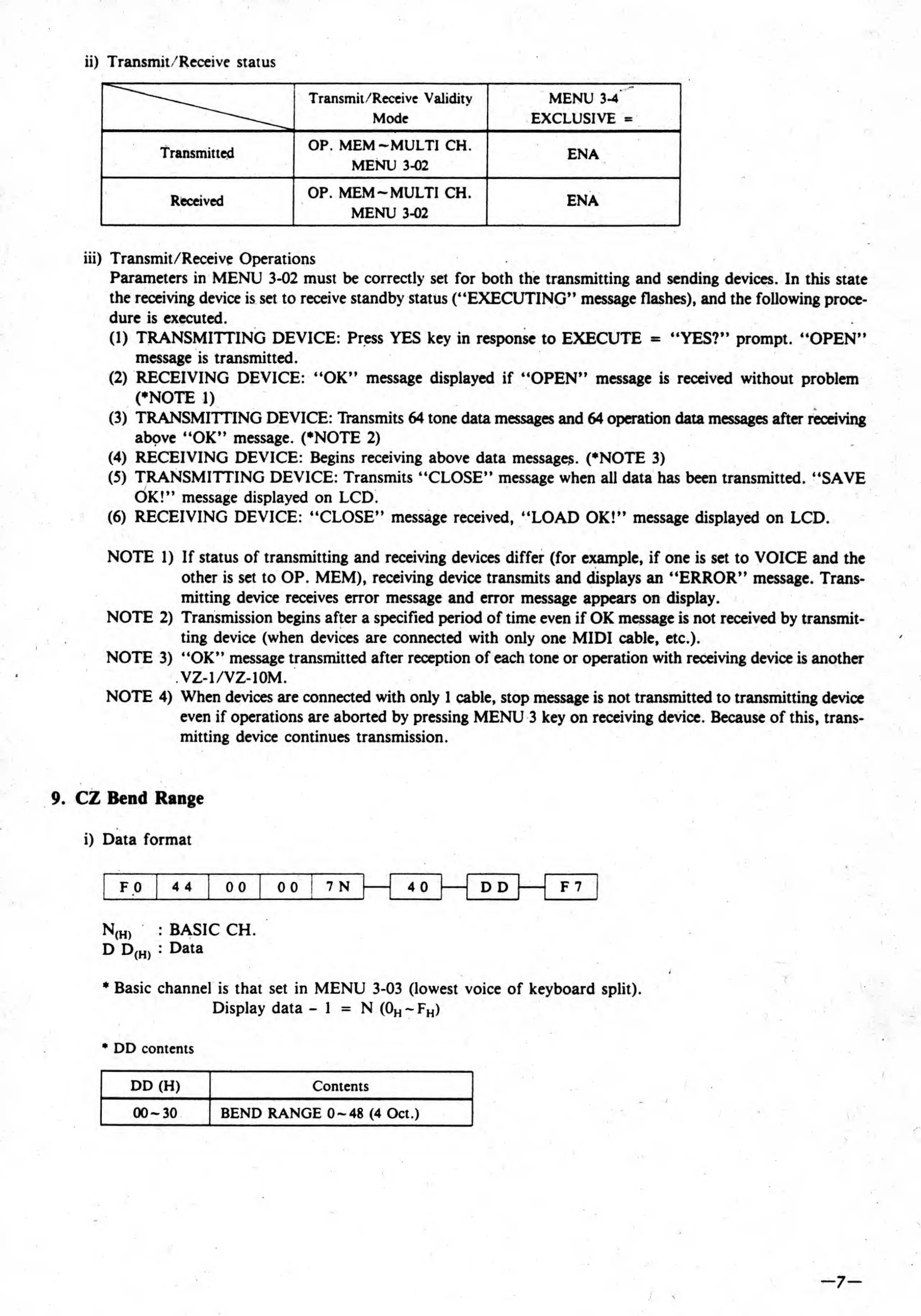

Casio VZ-1 - CZ Bend Range

ii) Transmit/Receive status
Transmit/Receive Validity
Mode
MENU 3-4 ~
EXCLUSIVE =
Transmitted
OP. MEM —MULTI CH.
MENU 3-02
ENA
Received
OP. MEM-MULTI CH.
MENU 3-02
ENA
iii) Transmit/Receive Operations
Parameters in MENU 3-02 must be correctly set for both the transmitting and sending devices. In this state
the receiving device is set to receive standby status (“EXECUTING” message flashes), and the following proce¬
dure is executed.
(1) TRANSMITTING DEVICE: Press YES key in response to EXECUTE = “YES?” prompt. “OPEN”
message is transmitted.
(2) RECEIVING DEVICE: “OK” message displayed if “OPEN” message is received without problem
( ♦ NOTE 1)
(3) TRANSMITTING DEVICE: Transmits 64 tone data messages and 64 operation data messages after receiving
above “OK” message. ( ♦ NOTE 2)
(4) RECEIVING DEVICE: Begins receiving above data messages. (*NOTE 3)
(5) TRANSMITTING DEVICE: Transmits “CLOSE” message when all data has been transmitted. “SAVE
OK!” message displayed on LCD.
(6) RECEIVING DEVICE: “CLOSE” message received, “LOAD OK!” message displayed on LCD.
NOTE 1) If status of transmitting and receiving devices differ (for example, if one is set to VOICE and the
other is set to OP. MEM), receiving device transmits and displays an “ERROR” message. Trans¬
mitting device receives error message and error message appears on display.
NOTE 2) Transmission begins after a specified period of time even if OK message is not received by transmit¬
ting device (when devices are connected with only one MIDI cable, etc.).
NOTE 3) “OK” message transmitted after reception of each tone or operation with receiving device is another
. VZ-1/VZ-10M.
NOTE 4) When devices are connected with only 1 cable, stop message is not transmitted to transmitting device
even if operations are aborted by pressing MENU 3 key on receiving device. Because of this, trans¬
mitting device continues transmission.
9. CZ Bend Range
i) Data format
F0
4 4
0 0
00
.-J
7 N
4 0
D D
F 7
N (H) : BASIC CH.
D D (H ) • Data
♦ Basic channel is that set in MENU 3-03 (lowest voice of keyboard split).
Display data - 1 = N (0 H — F H )
* DD contents
DD (H)
Contents
00-30
BEND RANGE 0-48 (4 Oct.)
