Casper 19CSPR User Manual

19″ LCD Color Monitor Casper 19CSPR
10

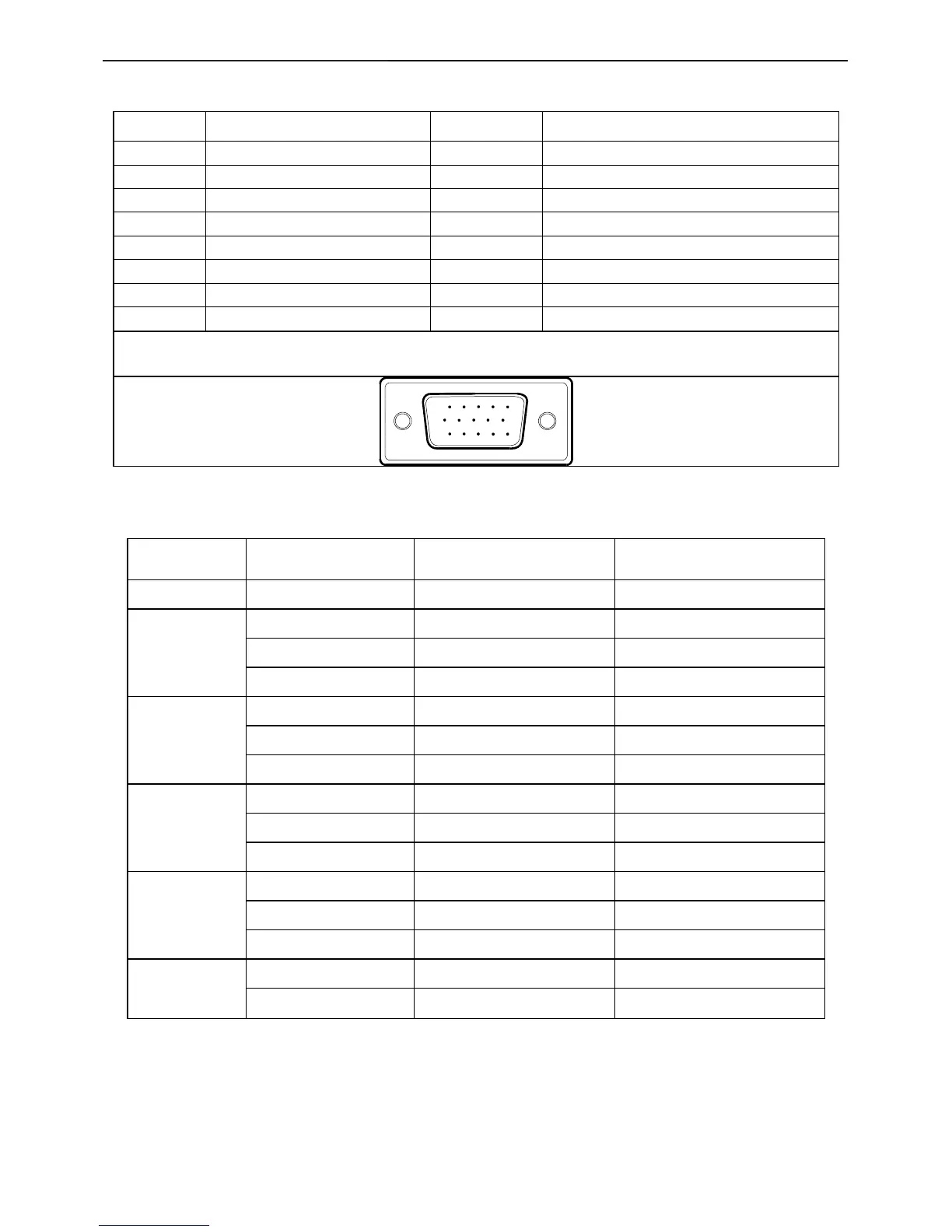

4. Input/Output Specification
4.1 Input Signal Connector
Pin No. Description Pin No. Description
1. Red 9. +5V
2. Green 10. Ground
3. Blue 11. Ground
4. Ground 12. DDC-Serial Data
5. Detect Cable 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
15 - Pin Color Display Signal Cable
15
6
10
11 15
4.2 Factory Preset Display Modes
Standard Resolution
Horizontal
Frequency
Vertical
Frequency
Dos-mode 720 × 400 31.47kHz 70.0Hz
640 × 480 31.47kHz 60.0Hz
640 × 480 37.86kHz 72.8Hz
VGA
640 × 480 37.50kHz 75.0Hz
800 × 600 37.879kHz 60.0Hz
800 × 600 48.077kHz 72.2Hz
SVGA
800 × 600 46.875kHz 75.0Hz
1024 × 768 48.363kHz 60.0Hz
1024 × 768 56.476kHz 70.0Hz
XGA
1024 × 768 60.021kHz 75.0Hz
1152×864 67.5kHz 75Hz
1280 × 1024 64.000kHz 60.0Hz
SXGA
1280 × 1024 80.000kHz 75.0Hz
1440 × 900 55.93kHz 60Hz
WXGA+
1440 × 900 70.635kHz 75Hz
