CS 55 M OPERATION

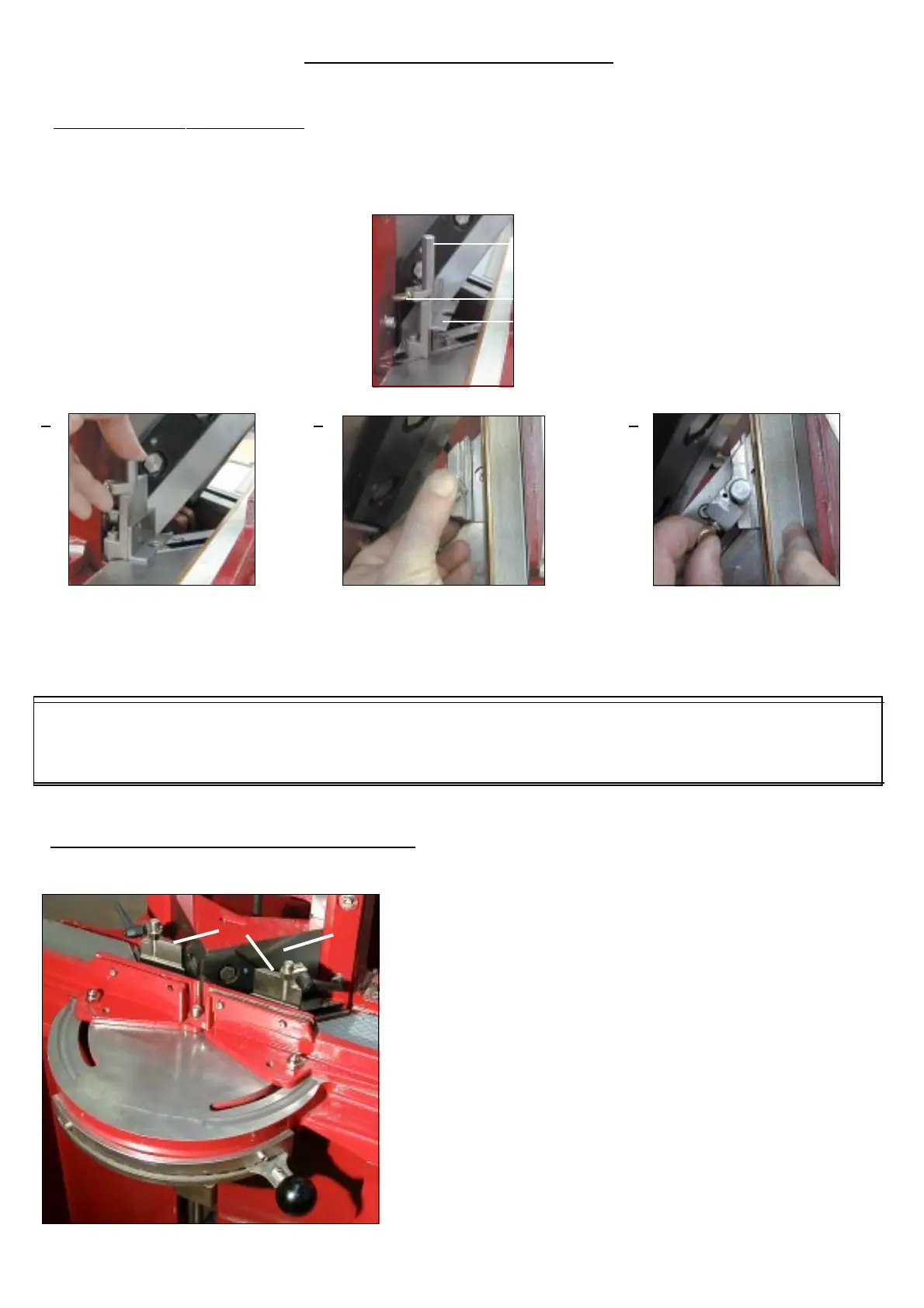

1) Rabbet holders adjustment
SELF ADJUSTING RABBET HOLDER
It is absolutely essential to follow the procedure , then the rabbet holders must be
adjusted so that the rabbet remains maintained at the time of cutting ; further more,
the moulding shall not be raised by the rabbet holder to prevent defective cuts.
1 2 3
2
A) rabbet holder rod
B) locking screw
C) rabbet holder sash angle
Unlock locking screw (B),
push down rod (A) to bring
sash angle ( C ) close to
cutting plane....
.....while maintaining the
moulding flat on machine’s table,
then slip the support under the
rabbet and release it...
Finally lock screw (B).
It is essential to maintain
the moulding until rod (A)
is locked.
2) Adjustment of the cutting head position
Handle (B) controls the cutting head position (TC).
B
E
TC
When handle (B) located in the front part of the
table is in right end position, the cut is carried out in
a single pedal stroke.
In the event of a larger moulding with an important
section, move handle (B) to the left to reduce
cutting force.
The moulding cut can be carried out in several pedal
strokes by changing the handle position (B) - that is
to say the position of the knives - related to the
guides (E) in front of which the moulding is being
maintained.
