Imperial measuring scales ( in inches )
Exclusive measuring device at the rabbet bottom , to the nearest millimetre ( see below)
Reversible knives
Extension table, left side
Additional extension table, right side, with measurement device ( + 800 mm)( 32’’)
Bevel cut 45°
Max. Width of cut - 85 mm (3
3/8’’) with reversible knife ( option)
- 100 mm ( 4’’ )with irreversible knife ( standard)
Graduations 0 to max.100 centimetres ( 40’’ ) to the nearest 2.5 mm
Dimensions H : 1070 mm x D : 650 mm x L : 2240 mm
Weight 80 kg ( 170 lbs )
T1 T2
4
ETT
EBT

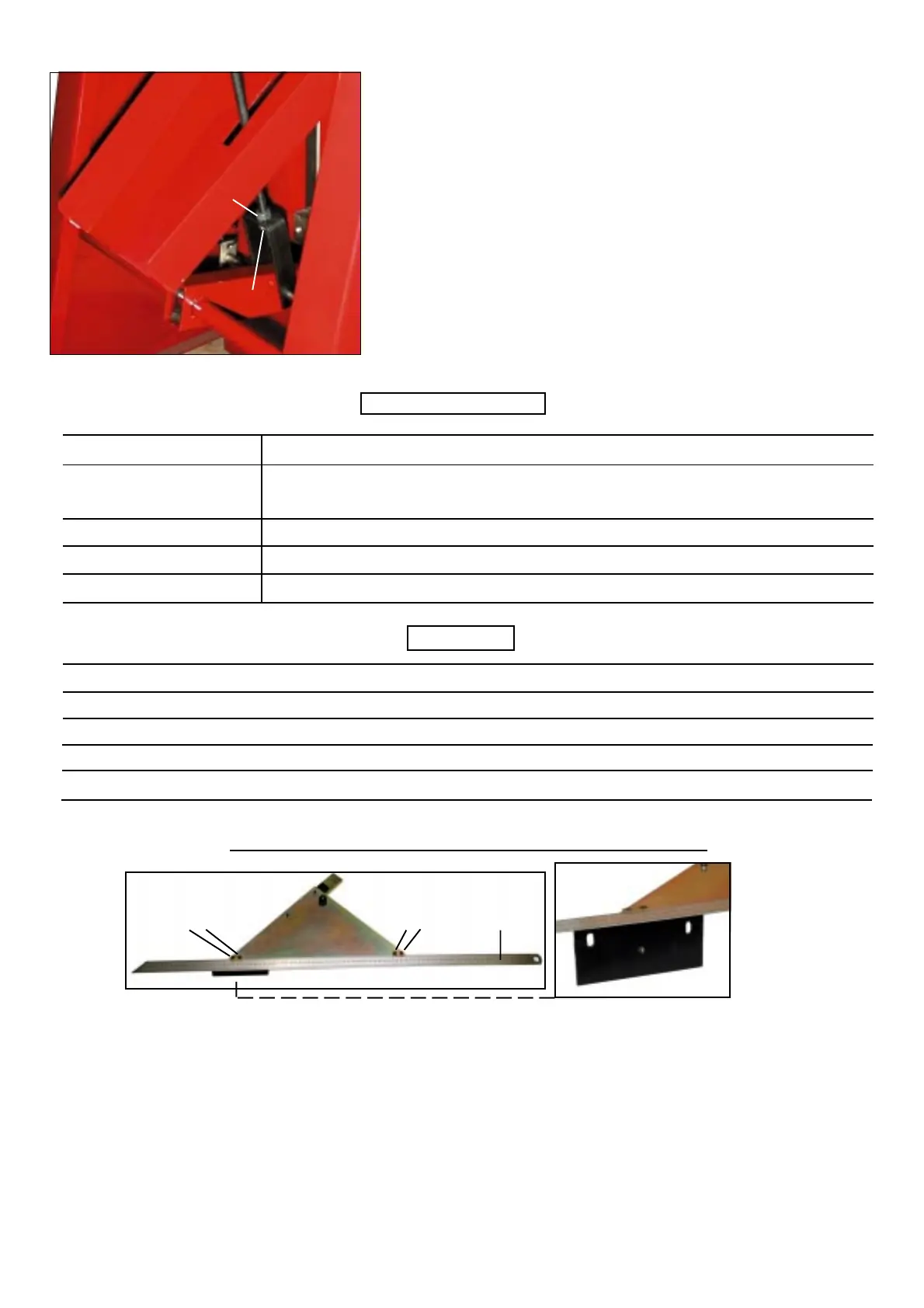

After many sharpening operations, knives might
become too short, that means the position of the knife
holder related to the pedal has to be adjusted. Press
down the pedal and lock it with the aid of the operating
handle (MP) ( see page 3).
Unscrew the adjusting nut (ETT) ( 19 mm wrench
maintaining the con-rod located at the clamp top and
screw on the nut (EBT) until the knife edge 4-6 mm
projects from under the edge of the lower knives.
Screw down the adjusting nut (ETT) against the bottom
part of the clamp and drive in.
TECHNICAL DATA
OPTIONS
Optional measuring device assembly and adjustment
The measuring device is fixed by two threaded holes located on the back side of the table
extension.
Before screwing down the two locking screws, make sure the whole triangle set surface is in
contact with the table . Then unscrew screws a, b, c, d fixing the rule R .
Adjust meter position related to knives with the aid of a setting rule to replace missing
graduation.
Refine the adjustment by carrying out a first cut and by shifting the meter rule the difference
between the length displayed and the length resulting from the first cut.
a b c d
R
