OPERATION
6
SCX-2800 (08ā03)

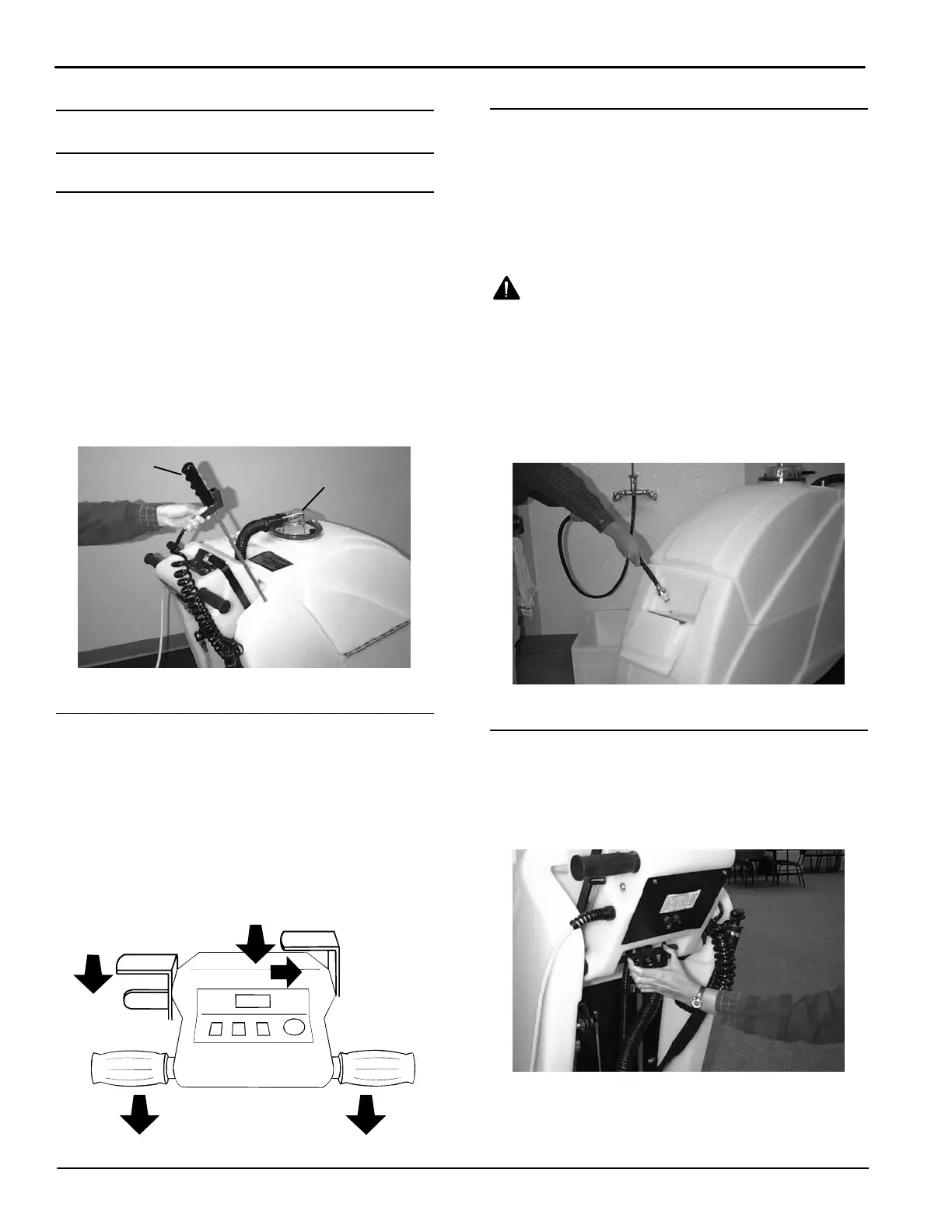

SETUP AND OPERATION
MACHINE INSTALLATION
ATTENTION: To prevent damage to machine when
uncrating, do not attempt to drive or roll off skid.
Carefully lift machine with assistance or use a
ramp.
Your new machine requires very little setup.
1. Place recovery tank dome on top of solution tank
and secure with two thumbscrews (Figure 1).
2. Insert black vacuum hose into dome opening.
3. Install pre-spray wand into opening on right side of
tank, next to control housing (Figure 1).
PRE-SPRAY
WAND
RECOVERY TANK
DOME
FIG. 1
MANEUVERING MACHINE WITHOUT USE OF
POWER
Your machine will glide easily across floor by pushing
machine forward (without power). To pull machine
backwards, pull reverse release lever backwards
(arrow A) and to the right to latch (arrow B). This
allows the machine to pull back easily. Be certain
brush is raised before transporting. To raise brush, pull
brush lever backwards (arrow C) until it latches
(Figure 2).
A
B
C
FIG. 2
FILLING SOLUTION TANK
Open fill port door at front of machine and fill with 106
liters (28 gal) of hot water, 60_C (140_F) maximum,
and add a recommended liquid cleaning solution to
proper dilution ratio (Figure 3).
FOR SAFETY: When using machine, follow mixing
instructions on chemical containers.
WARNING: Do Not Use Flammable Liquids Or
Operate Machine In Or Near Flammable Liquids,
Vapors Or Combustible Dusts.
ATTENTION: If using powered cleaning chemicals,
mix prior to adding. Wait until completely
dissolved before pouring into solution tank.
ATTENTION: Always use separate buckets to fill
and empty machine. Dirty water in solution tank
will clog solution pump system.
FIG. 3
ADJUSTING CONTROL GRIP HEIGHT
Adjust control grip height to a comfortable operating
height (three settings). To adjust, squeeze two levers
under console together to raise or lower control grip
(Figure 4).
FIG. 4
