TSM-35 Screw Pocket Machine Troubleshooting
o If the clamp comes down, the router moves normally, and the drill does not move forward or
begin to spin:

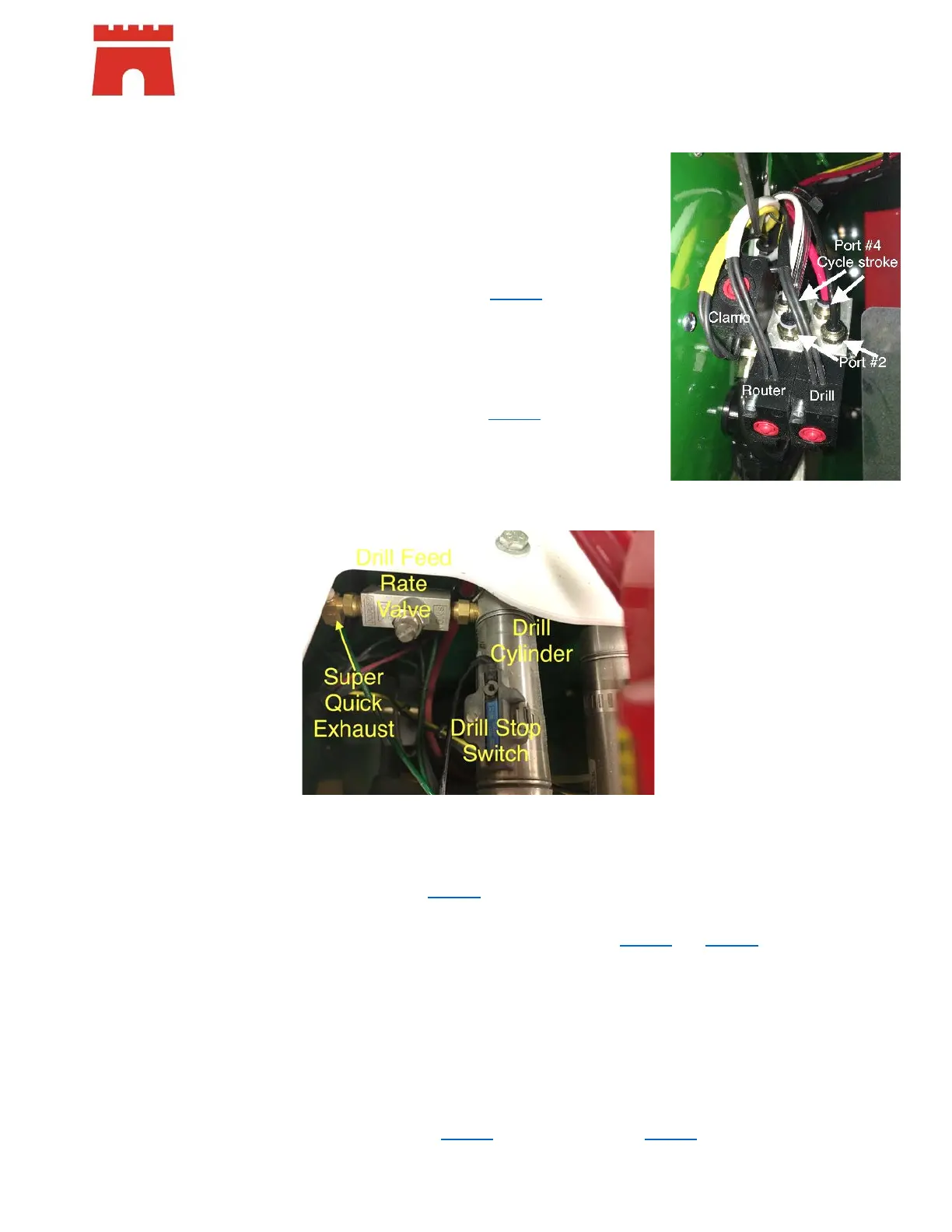

Override the drill solenoid (last of stack) with red button
• If the carriage does not move, and the drill does
not spin, remove the air line at port #4 on the
solenoid and override again
o If no air blows out of the port, replace
the drill solenoid (P49410
)
o If air comes out of the solenoid port,
check for clogs in the air line to the
cylinder and the drill delay assembly.
If no clogs, change the drill
solenoid (P49410
). It is not
working electrically.
o If the clamp comes down, the router moves normally, the drill
does not move forward but begins to spin:
Check the drill feed rate valve to make sure it is not turned all the way down
Override the drill solenoid (last in stack) with red button
• Listen and feel for air leaks at the super quick exhaust
o If there is an air leak with the override button depressed, change
the SQE (P10320
)
o If there is an air leak at the SQE when the override button is NOT
depressed, change the drill cylinder (P35125 / or C35022
complete
drill cylinder assembly)
Remove the air line to the super quick exhaust on the drill feed rate valve and
override the drill solenoid
• If no air from the line, check the air line for clogs
• If air from the line, change the drill cylinder
o If the clamp comes down, the router and drill cycles both run at speed and the drill is
spinning:
Check the router solenoid (P49410) and router cylinder (P35300)
