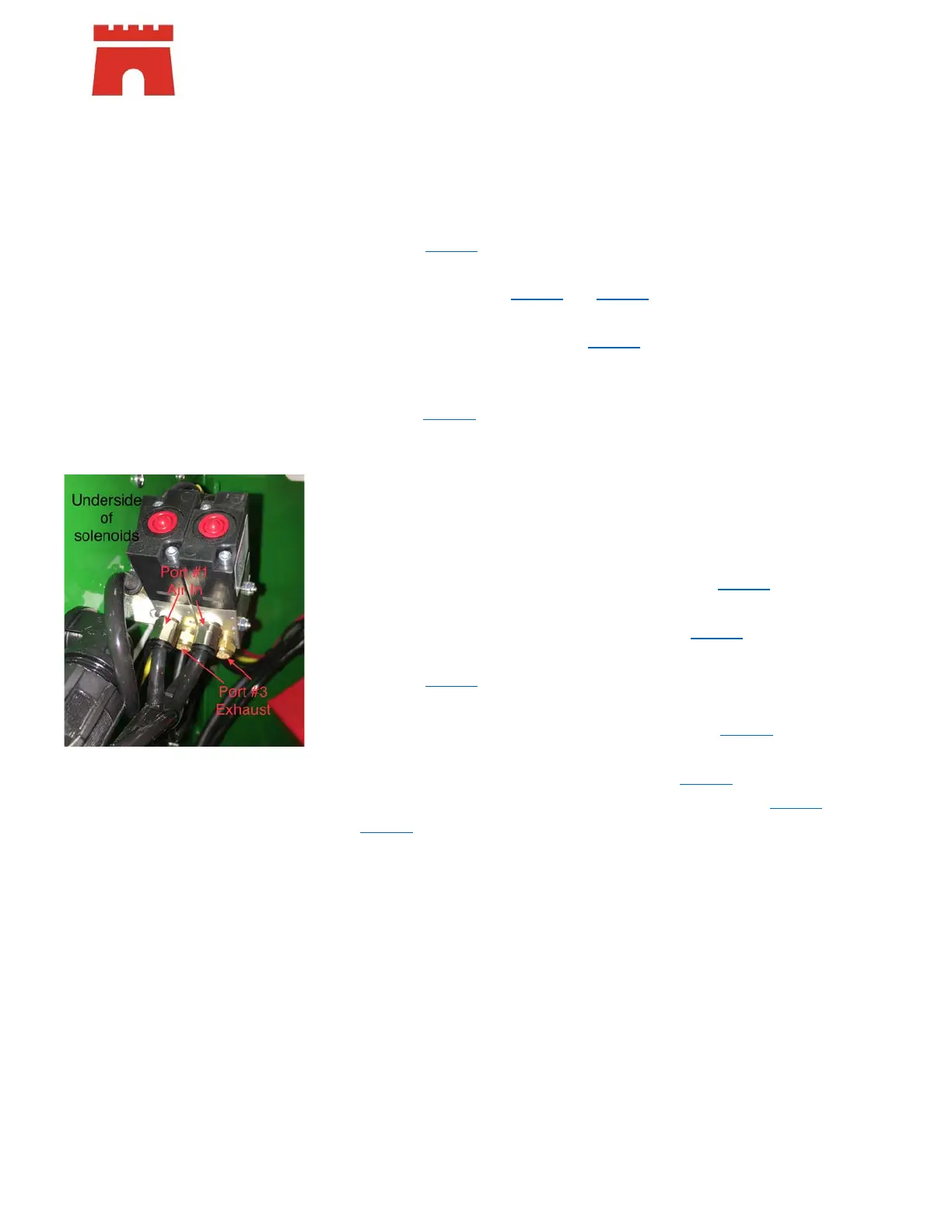

CASTLE TSM-35 - Page 16

TSM-35 Screw Pocket Machine Troubleshooting
• Override the router solenoid (middle of the stack) with the red button
o Listen for air leaks at the solenoid. If there is a continual air leak as
the solenoid override is held down, press a finger over the exhaust
port.
 If the carriage begins to move forward, change the solenoid
(P49410
)
 If the carriage does not move the router cylinder needs to
be replaced (P35300 / or C35021
– complete cylinder
assembly)
o Remove the muffler / breather (P00018) at the exhaust port on the
router solenoid and run a pocket. If the cycle completes, change or
clean the muffler / breather.
 Check the drill solenoid (P49410)
• Override the drill solenoid (last of the stack) with the red button and try to
stop the carriage from moving forward
o If you can stop the carriage:
 Listen / feel for air leaks at the muffler breather on the drill
solenoid
• If there is a constant leak when trying to stop the
carriage, replace the drill cylinder (P35125
)
• If there is a constant leak when the machine is at
rest, change the drill solenoid (P49410
)
 Listen / feel for air leaks at the super quick exhaust (SQE)
(P10320
) on the drill feed rate assembly.
• If there is a constant leak without overriding the
solenoid, replace the drill cylinder (P35125
)
• If there is a constant leak when the drill solenoid is
overridden, replace the SQE (P10320
)
 If there are no air leaks, replace the drill solenoid (P49410)
 Check the drill (P01957) (See 35.23)
