TSM-35 Screw Pocket Machine Troubleshooting

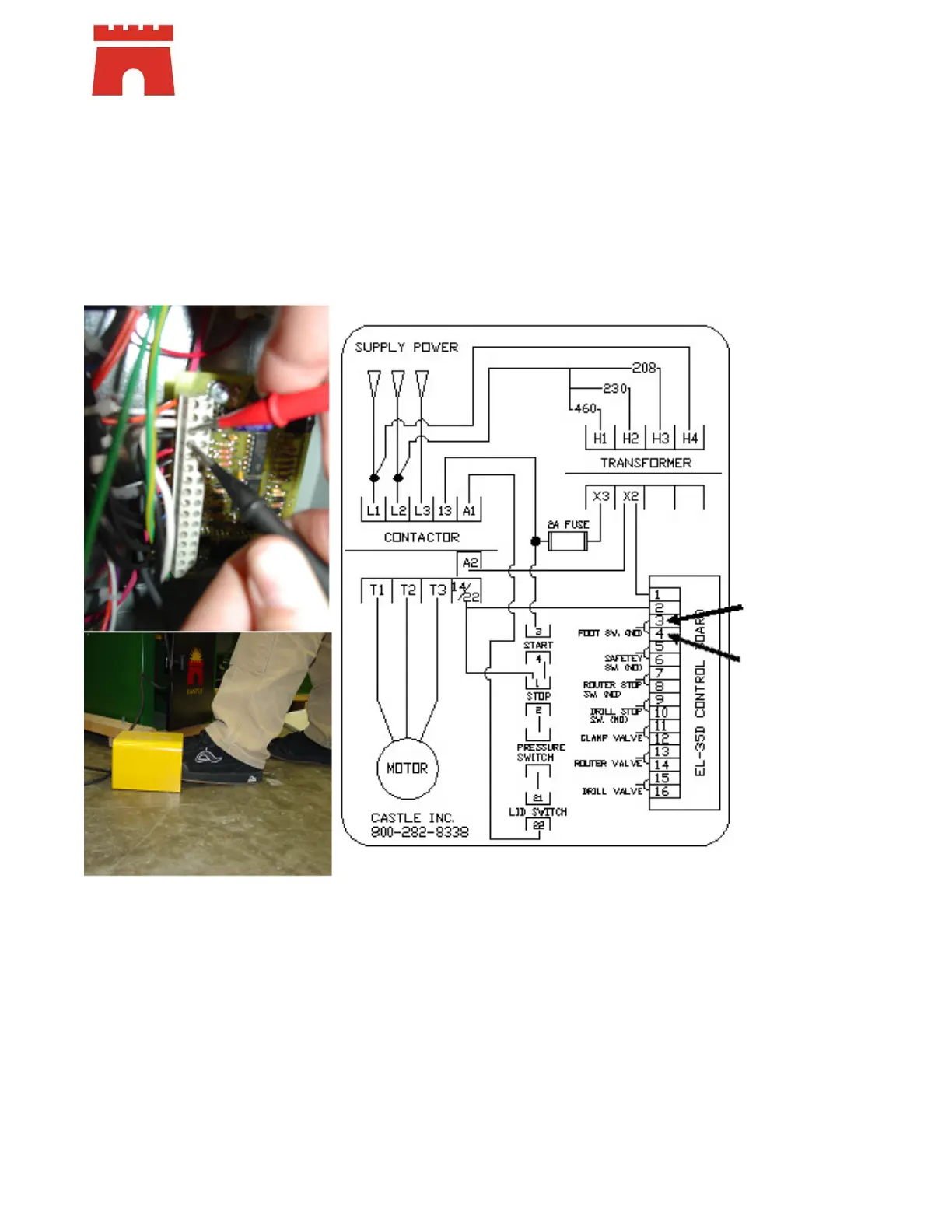

35.17 Test Foot Switch
• Disconnect air and power to the machine
• Locate pins “3” and “4” on the pin strip of the control board.
• Touch continuity tester pins to “3” and “4” on the pin strip and the switch should read open.
• Step on the foot peddle while still touching the pins and the continuity tester should read closed.
