Features and Controls
i02916146
Electronic Modular Control Panel
II (EMCP II)
(If Equipped)
SMCS Code: 4490

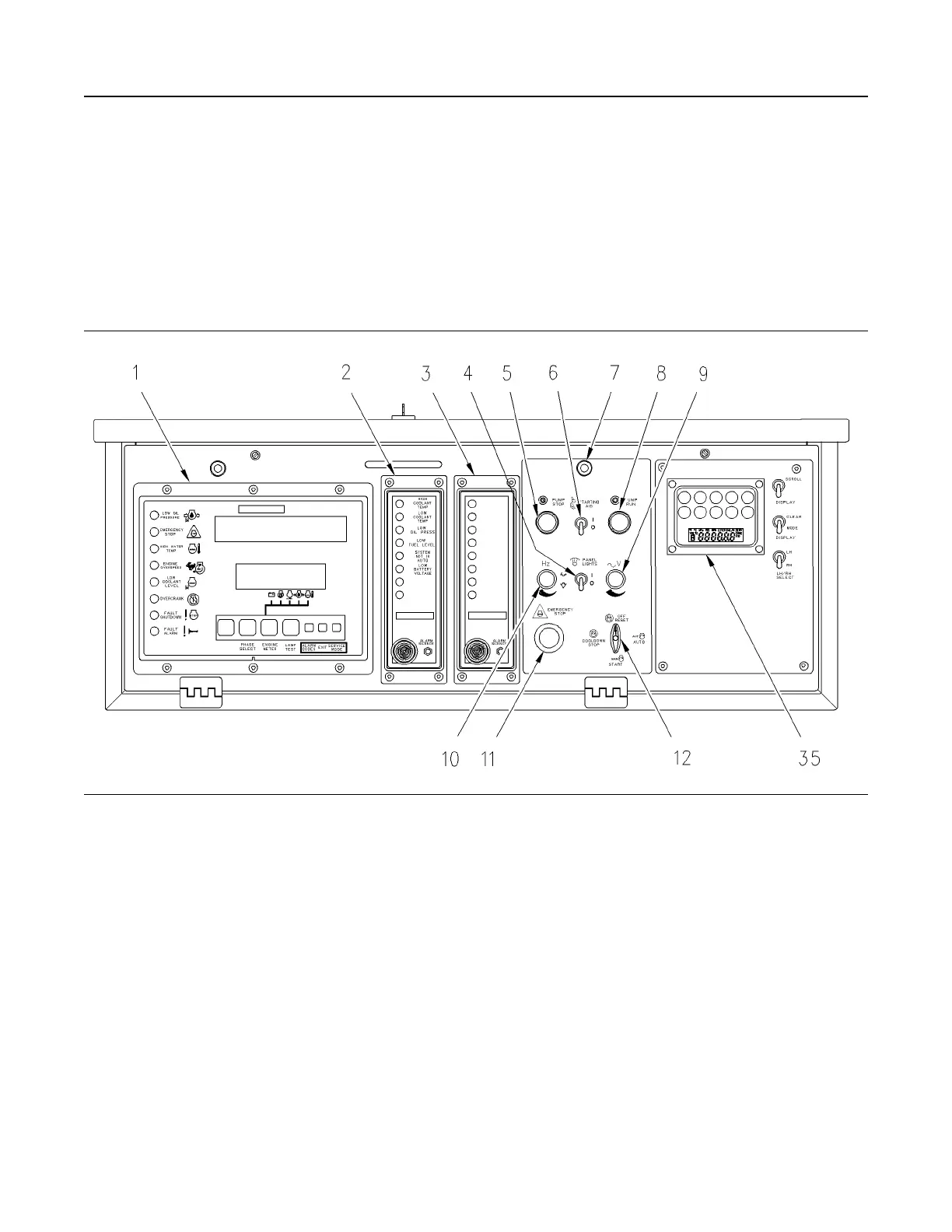

Illustration 48 g00638566
Electronic Modular Control Panel II (EMCP II)
(1) Generator set control (GSC)
(2) Alarm module (ALM)
(3) Custom alarm module (CAM) (if
equipped)
(4) Panel light switch (PLS)
(5) Pump stop switch
(6) Starting aid switch (SAS) (if equipped)
(7) Panel lights (PL)
(8) Pump run switch (if equipped)
(9) Voltage adjust rheostat (VAR)
(10) Speed Potentiometer (SP) (if equipped)
or Governor Switch (GS) (if equipped)
(11) Emergency stop push button (ESPB)
(12) Engine control switch (ECS)
(35) Caterpillar Monitoring System (if
equipped)
The electronic modular control panel II (EMCP II) is
located above the generator distribution housing. The
control panel consists of a main panel with indicators,
meters and control switches. This control panel may
be equipped with optional modules in order to match
the customers' needs and requirements.
The left side of the control panel contains the
generator set control (GSC). This is the main
component of the system. The GSC displays
generator output, fault conditions and key engine
parameters. The center section of the control panel
may be a blank or the center section of the control
panel may contain one or two of the optional alarm
modules. The right section may be a blank or the
right section may contain the Caterpillar Monitoring
System (35).
36
SEBU7125-13
Operation Section
Features and Controls
