• Four red indicators, which are used to display
shutdown conditions
i02363902
Electronic Modular Control Panel
II+ (EMCP II+)
(If Equipped)
SMCS Code: 4490

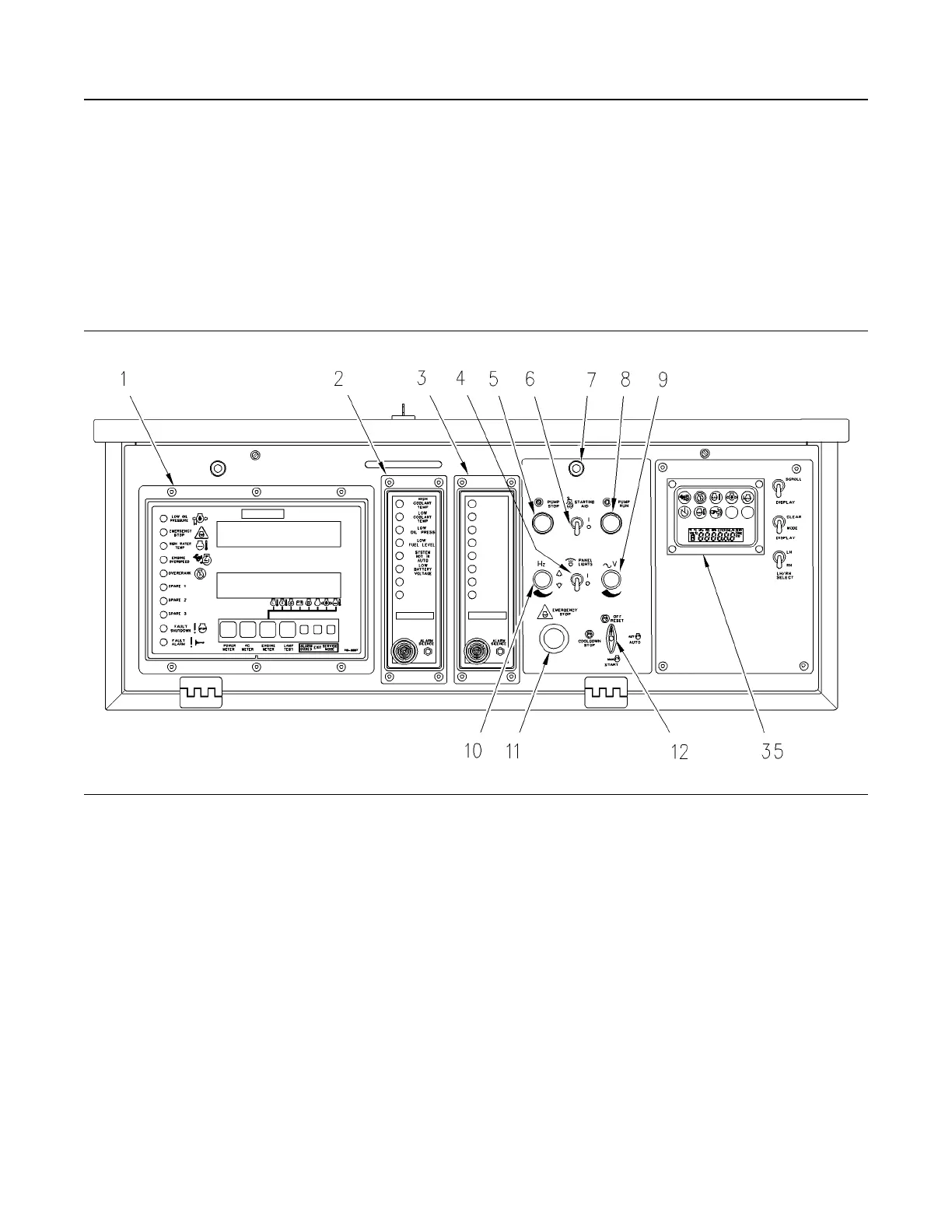

Illustration 55 g00638311
Electronic Modular Control Panel II+ (EMCP II+)
(1) Generator set control + (GSC+)
(2) Alarm module (ALM) (optional)
(3) Custom alarm module (CAM) (optional)
(4) Panel light switch (PLS)
(5) Pump stop switch
(6) Start aid switch (SAS) (optional)
(7) Panel lights (PL)
(8) Pump run switch (optional)
(9) Voltage adjust rheostat (VAR)
(10) Speed potentiometer (SP) (optional) or
Governor switch (GS) (optional)
(11) Emergency stop push button (ESPB)
(12) Engine control switch (ECS)
(35) Caterpillar Monitoring System (optional)
The electronic modular control panel II+ (EMCP II+)
is located above the generator distribution housing.
The control panel consists of a main panel with
indicators, meters and control switches. This control
panel may be equipped with optional modules in
order to match the customers' needs and
requirements.
The left side of the control panel contains the
generator set control + (GSC+). This is the main
component of the system. The GSC+ displays
generator output, fault conditions and key engine
parameters. The center section of the control panel
may be blank, or contain one or two of the optional
alarm modules. The right side of the control panel
may be blank, or contain the Caterpillar Monitoring
System (35).
The main control panel may or may not contain all of
the components which are shown in Illustration 55 .
Some components are optional. The optional
components may not be required for your particular
application.
