Alarm Module

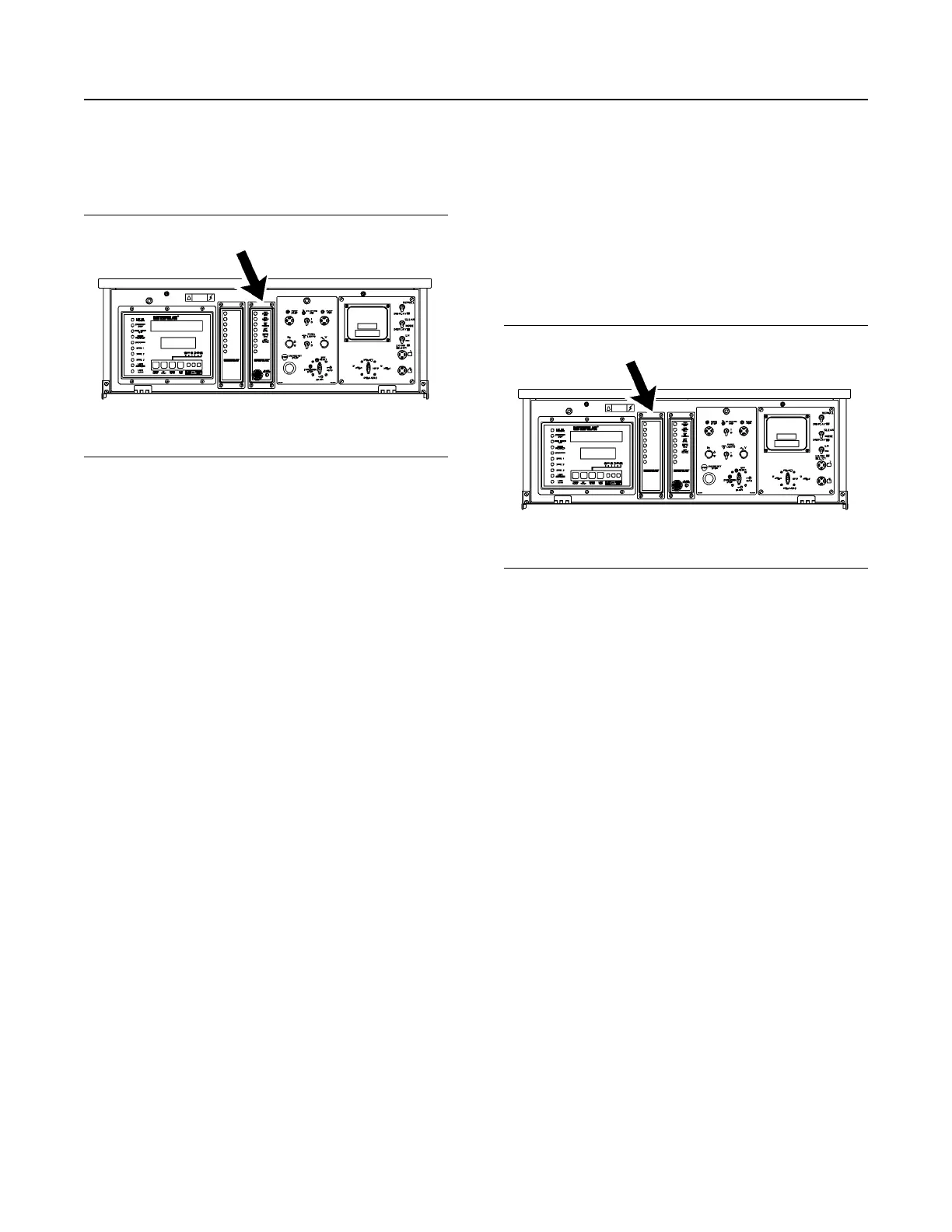

Illustration 53 g00643609
The Location of the Alarm Module (ALM) on the
EMCP II Control Panel
The alarm module (ALM) is optional. The ALM is
located in the center of the control panel. The alarm
module provides a visual warning and an audible
warning of the engine conditions before these
conditions become severe enough that the engine
shut down or the engine is unable to start.
One basic alarm module is used to satisfy the
requirements for a standby NFPA 99 alarm module,
standby NFPA 110 alarm module, NFPA 99 remote
annunciator panel, and the prime power alarm. This
is accomplished by using different inputs to the
module and different decals on the front of the
module in order to indicate alarms or shutdown
conditions. Refer to the Systems Operation, Testing
and Adjusting, SENR5809, “Electronic Modular
Control Panel II (EMCP II) for MUI Engines” or to the
Systems Operation, Testing and Adjusting,
SENR5398, “Electronic Modular Control Panel II
(EMCP II) for EUI Engines” for all wiring and
installation information. Refer to the above manuals
for a list of indicators and alarm functions.
The front of the alarm module consists of the
following indicators.
• Four amber indicators indicate the following
parameters (depending on the module
configuration): High Coolant Temperature, Low
Coolant Temperature or Low Coolant Level, Low
Oil Pressure, Generator On Load, Charger
Malfunction, Low Oil Level and Low Fuel Level.
• Four red indicators indicate the following
parameters (depending on the module
configuration) :Not in AUTO condition, Low DC
Voltage, Air Damper Closed, Low Oil Pressure
Shutdown, Overcrank Shutdown, High Coolant
Temperature Shutdown and Overspeed Shutdown
• An audible alarm and Acknowledge/Silence switch
For more detailed information, refer to the Systems
Operation, Testing and Adjusting, SENR5809,
“Electronic Modular Control Panel II (EMCP II) for
MUI Engines” or to the Systems Operation, Testing
and Adjusting, SENR5398, “Electronic Modular
Control Panel II (EMCP II) for EUI Engines”.
Custom Alarm Module
Illustration 54 g00643610
The Location of the Custom Alarm Module (CAM) on
the EMCP II Control Panel
The custom alarm module (CAM) is optional. The
CAM is located in the center of the control panel. The
custom alarm module provides a visual warning and
an audible warning of the conditions of the customer
supplied inputs before these conditions become
severe enough that the engine shuts down or the
engine is unable to start. The CAM is equipped with a
horn, an alarm silence switch, a lamp test switch and
8 switched inputs for customer use. Refer to the
Systems Operation, Testing and Adjusting,
SENR5809, “Electronic Modular Control Panel II
(EMCP II) for MUI Engines” or to the Systems
Operation, Testing and Adjusting, SENR5398,
“Electronic Modular Control Panel II (EMCP II) for
EUI Engines” for all wiring and installation
information. Refer to the above manuals for the
names of input signals.
The front of the alarm module consists of the
following indicators.
• Four amber indicators, which are used to display
alarm conditions
