KNOW YOUR LIFT TRUCK
◆◆

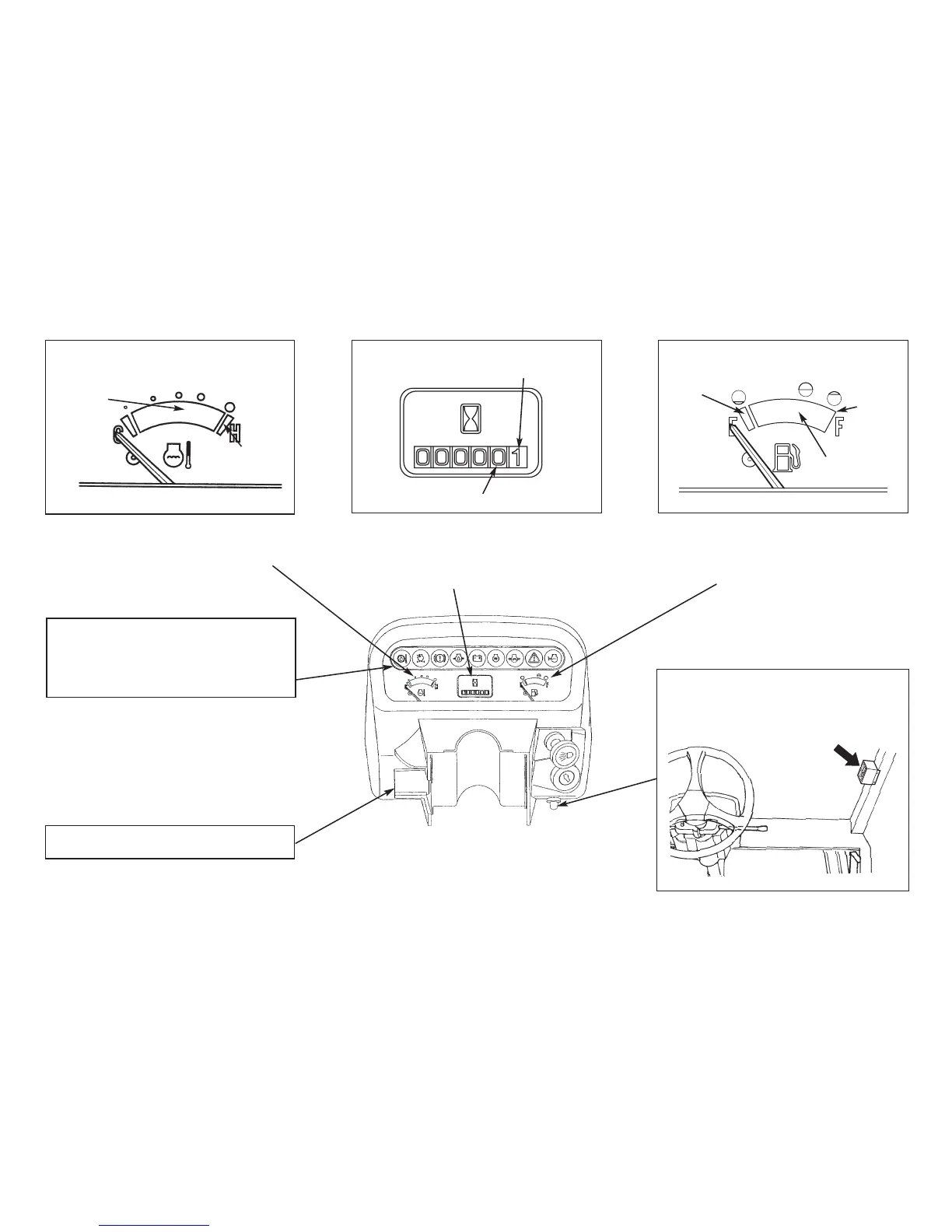

Instrument Panel
102792
Engine coolant temperature gauge
Fuse box
102386
Hourmeter
104787
Normal
(white)
0.1 hour
(6 minutes)
1 hour
Overheat
(red)
OK monitor
When any warning light (except glow plug
indicator light) glows during operation, stop
the truck and take corrective action.
The gauge needle is normally in the white zone.
If the needle moves into the red zone, set the
topic. Engine coolant temperature gauge
needle moves into red zone.
Starts registering the operating hours of the
engine when the key switch is turned to the l
(ON) position. Periodic maintenance recom-
mendations are based on these engine hours.
Indicates the amount of fuel in the tank when
the key switch is turned to the l (ON) position.
To get an accurate gauge reading, be sure the
truck is level.
1st speed mode/automatic mode selector
switch
This switch was changed and moved to the
overhead guard.
104573
