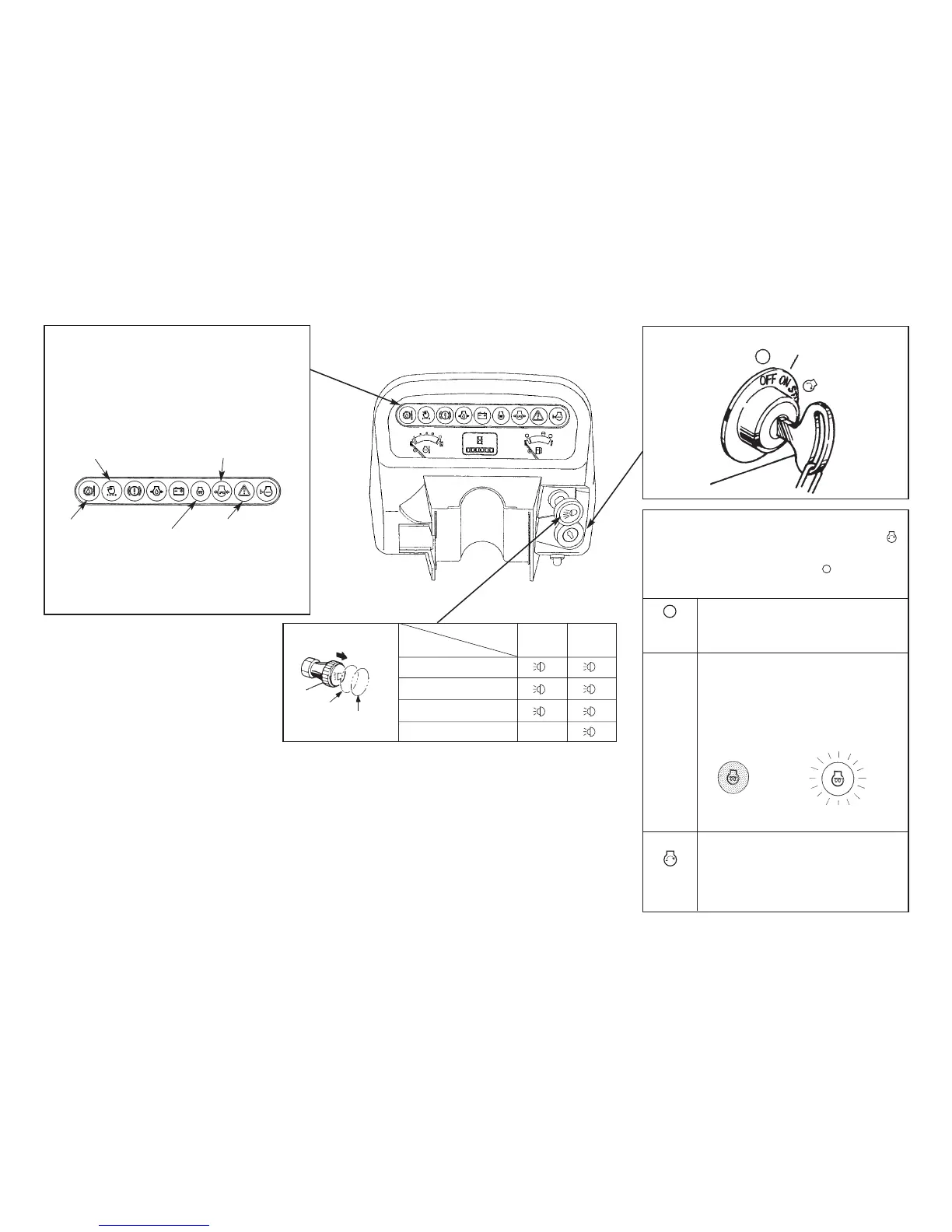

KNOW YOUR LIFT TRUCK
NOTICE: The lights may be turned on by
pulling the switch outward regardless
of the starter switch position. Turn off
the lights when the truck is not being
operated to prevent the battery from
discharging.
Light switch
Anti-restart starter switch and key
103921
100048A
(OFF)
(ON)
(START)
Applies power to all electrical cir-
cuits except for starter circuit. In
diesel models, power is applied to
heater plugs for 6 seconds and OK
monitor indicator glows.
Applies power to the starter motor to
crank the engine. A switch spring
returns the key switch to the l (ON)
position when the key is released.
Position 2
Has a built-in mechanical lockout that prevents
the key switch from being turned to the
(START) position while the engine is running.
Turn the key switch back to the (OFF) posi-
tion before recranking the engine.
Removes all power from instrument
panel and electrical circuits except
for horn and lights.
position
12
Light
Pull
Position 1
Instrument panel light
Tail lights
Clearance lights
Head lights
102391
OFF
ON
103524
l
OK monitor bulb check
The following warning lights should glow
when the key switch is turned to the l (ON)
position.
The lights will go out when the engine is
started; if not, the charging system has a defect.
103922
If the lights fail to glow with the key switch in
the l (ON) position, the bulbs have burnt out.
Consult your Cat lift truck dealer.
Optional
Optional
(For LP-Gas model)
Optional
For Diesel model
For Gasoline model
