Cata CHIM60SS - Page 24

24
Assembly
02

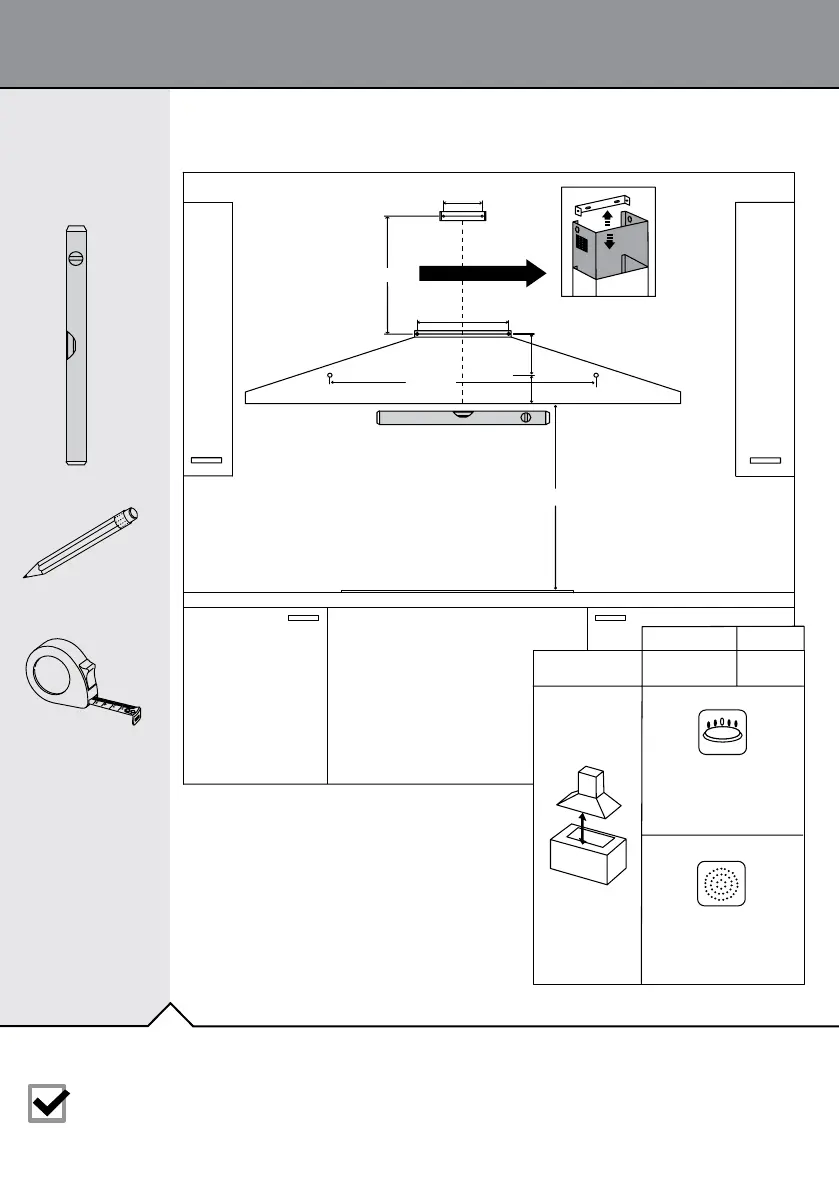

Mark on the wall the hole positions as shown in diagram.
The Wall Plugs supplied are suitable for solid walls only. When xing to any other type of wall
use suitable alternative xings.
80
188
89
62DIM.A
DIM.B
DIM.B
DIM.A
400/ 450
550
60/70cm
90cm
(Electric)
MIN 650mm
(GAS)
MIN.750mm
MAX.786
