The GCHEP60/70/90SS Curved Glass Hood is an appliance designed to extract air from the kitchen, removing odors and maintaining optimal air quality, while also providing illumination for the cooking area. This manual covers models GCHEP60SS, GCHEP70SS, and GCHEP90SS.

Function Description

The primary function of this appliance is to serve as a cooker hood, extracting fumes and odors generated during cooking. It also includes a lighting system to illuminate the cooking surface. The hood can be operated via a five-button panel, offering various fan speeds and lighting control.

Important Technical Specifications

Power Supply: 220-240V~50Hz
Power Consumption – Fan: 80W
Power Consumption – Luminary: 1 x 7W Max
Total Power Consumption: 87W
Protection Class: II
Light Bulb: Max. 7W (E-14)
Annual Energy Consumption (AEChood): 38.1 kWh/a
Time Increase Factor (f): 1.6
Fluid Dynamic Efficiency (FDEhood): 10.7
Energy Efficiency Index (EEIhood): 76.3
Measured Air Flow Rate at Best Efficiency Point (QBEP): 159.2 m³/h
Measured Air Pressure at Best Efficiency Point (PBEP): 136 Pa
Maximum Air Flow (Qmax): 277.6 m³/h
Measured Electric Power Input at Best Efficiency Point (WBEP): 56.0 W
Nominal Power of the Lighting System (WL): 7.0 W
Average Illumination of the Lighting System on the Cooking Surface (Emiddle): 41 lux
Measured Power Consumption in Standby Mode (Ps): Not specified
Measured Power Consumption Off Mode (Po): 0 W
Sound Power Level (LWA): Max. 62 / Min. 59 dB
Minimum Distance from Gas Hobs: 750mm
Minimum Distance from Electric Hobs: 650mm

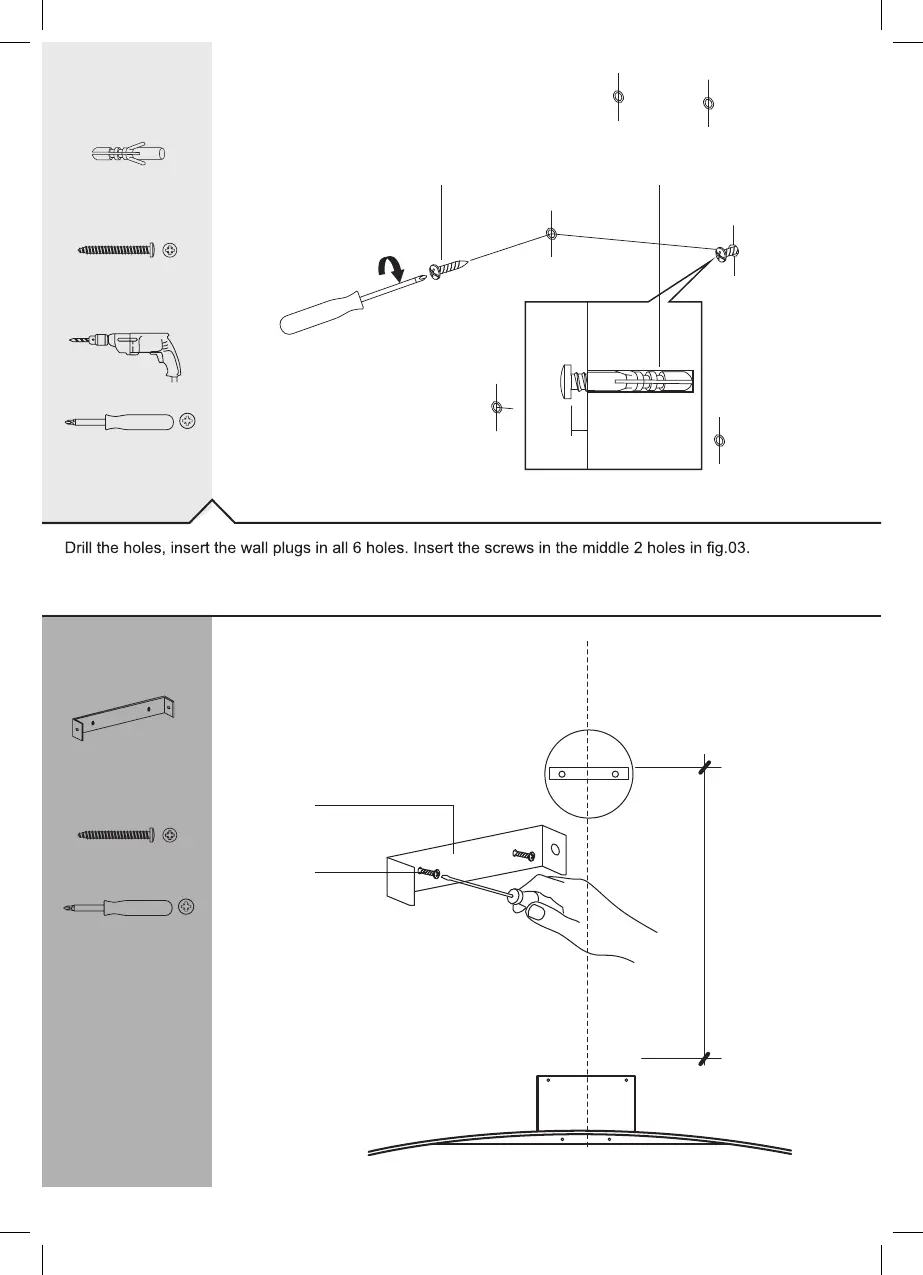

Wall Plugs: Suitable for solid walls only; alternative fixings required for other wall types.
Electrical Connection: Requires a double pole switch with a 3mm minimum contact gap on each connector. For UK, a Switched Fused Connection Unit to BS 1363 Part 4 is recommended, with a 3 Amp fuse.
Wiring Code: Brown = L - Live, Blue = N - Neutral.
Installation Options: Ducted option (extraction) or Recirculation option (requires carbon filters).

Usage Features

The cooker hood is designed for domestic use only and should not be operated by external timers or separate remote-control systems.

Control Panel: Features a five-button panel for operation.
Extractor Fan Operating Control Pilot Light: Indicates when the fan is active.
Lighting On and Off: Controls the illumination of the cooking area.
Extractor Fan Off: Turns off the extractor fan.
Extractor Fan Speed Buttons: Offers three different fan speeds (Speed 1, Speed 2, Speed 3) to adjust extraction power according to cooking needs.
Optimal Performance: To achieve the best results, it is recommended to leave the cooker hood switched on for 15 minutes after cooking is finished.
Ventilation: Adequate room ventilation is crucial, especially if the extractor hood is used simultaneously with appliances that run on gas or other fuels. The air must not be discharged into a flue used for exhausting fumes from other burning appliances. Local regulations regarding fume outlets must be consulted and complied with.

Maintenance Features

Regular maintenance is essential for the safe and efficient operation of the cooker hood. Always switch off the electricity supply before performing any maintenance work.

Bulb Replacement:
- Switch off the electricity supply at the fused connection unit.
- Allow the bulb to cool for 10 minutes before replacement, as it may be hot.
- The manual illustrates a process involving removing a cover and unscrewing the bulb.
Metal Filter Replacement/Cleaning:
- Frequency: Clean thoroughly once a month to avoid fires.
- Method: Remove the filters and wash with hot water and detergent. If using a dishwasher, position the filters vertically for better cleaning.
- Exterior Cleaning: Use non-corrosive, liquid detergent and avoid abrasive cleaning products.
Active Charcoal Filter Replacement (for Recirculation Mode):
- Frequency: Replace every 3 months.
- Type: Requires 2 x Active Charcoal Filters, Model Number CARBFILT4 (UK & IE), which are not supplied with the hood.
- Installation: The manual shows a "CLICK" mechanism for installing the charcoal filters.
- Important Note: Increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.
Troubleshooting: The manual provides a troubleshooting guide for common issues such as excessive vibration, fan/motor not working, reduced suction performance, and lingering cooking smells. Solutions range from checking installation and power supply to cleaning/replacing filters and ensuring proper vent kit installation.
Disposal: Waste electrical products should not be disposed of with household waste. The product must be handed over to an electric and electronic equipment collection point for recycling. Consult local authorities or retailers for recycling advice. The appliance is not designed to be dismantled by the user at the end of its life.
