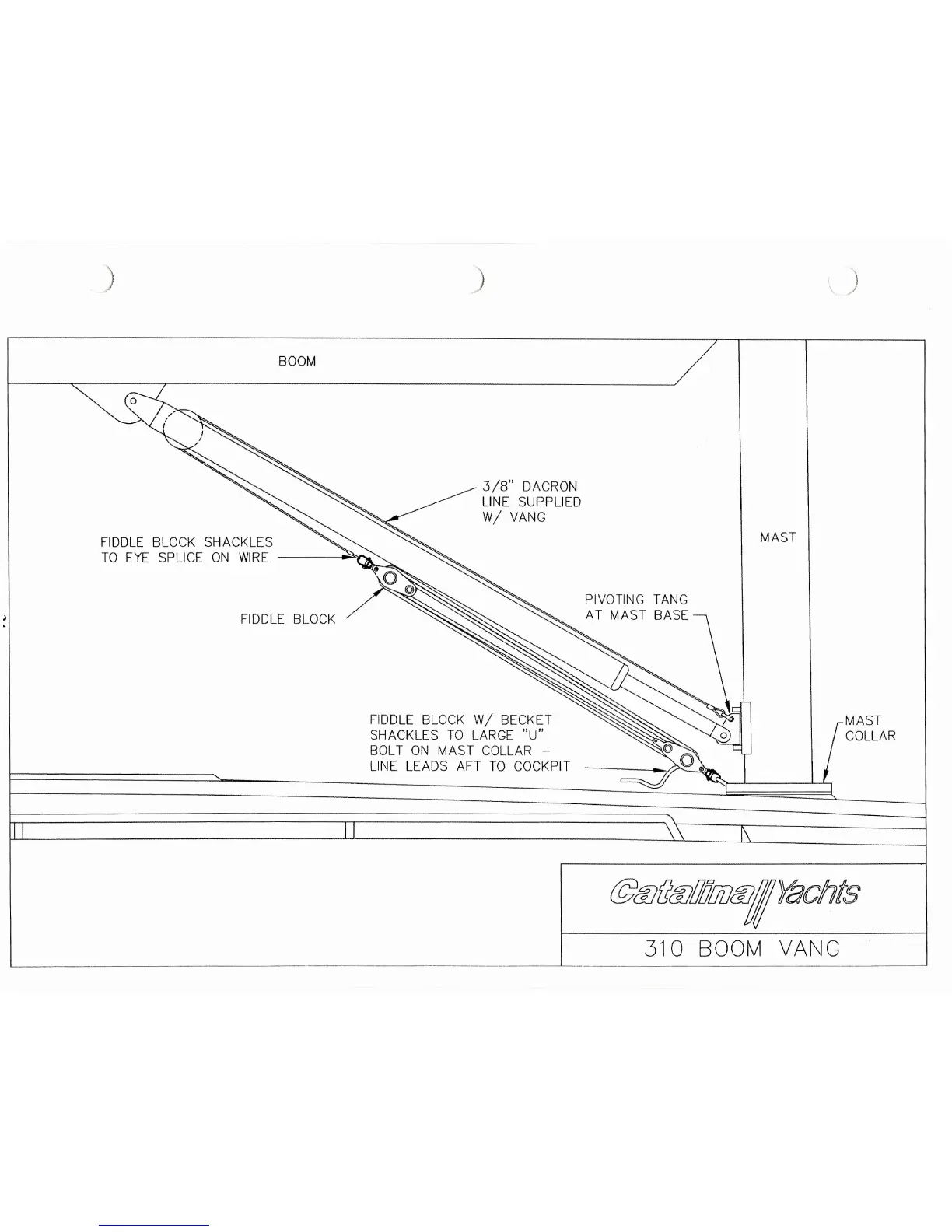

Catalina 310 - 310 BOOM VANG

)
, )
\
BOOM
FIDDLE BLOCK W/ BECKET ~ <, <» II \ I MAST
SHACKLES TO LARGE "u" ~ <» r COLLAR
BOLT ON MAST COLLAR -
LINE LEADS AFT TO COCKPIT
PIVOTING TANG
FIDDLE BLOCK ,/ "'-...~ ~"'-... "'-...'" AT MAST BASE
3/8" DACRON
LINE SUPPLIED
W/ VANG
FIDDLE BLOCK SHACKLES ~~ "'-...~ I MAST
TO EYE SPLICE ON WIRE --~
@!ff)f]!ff)/l/l[j[}!llj/');fJChts
310 BOOM VANG
__________ ~I____ I
