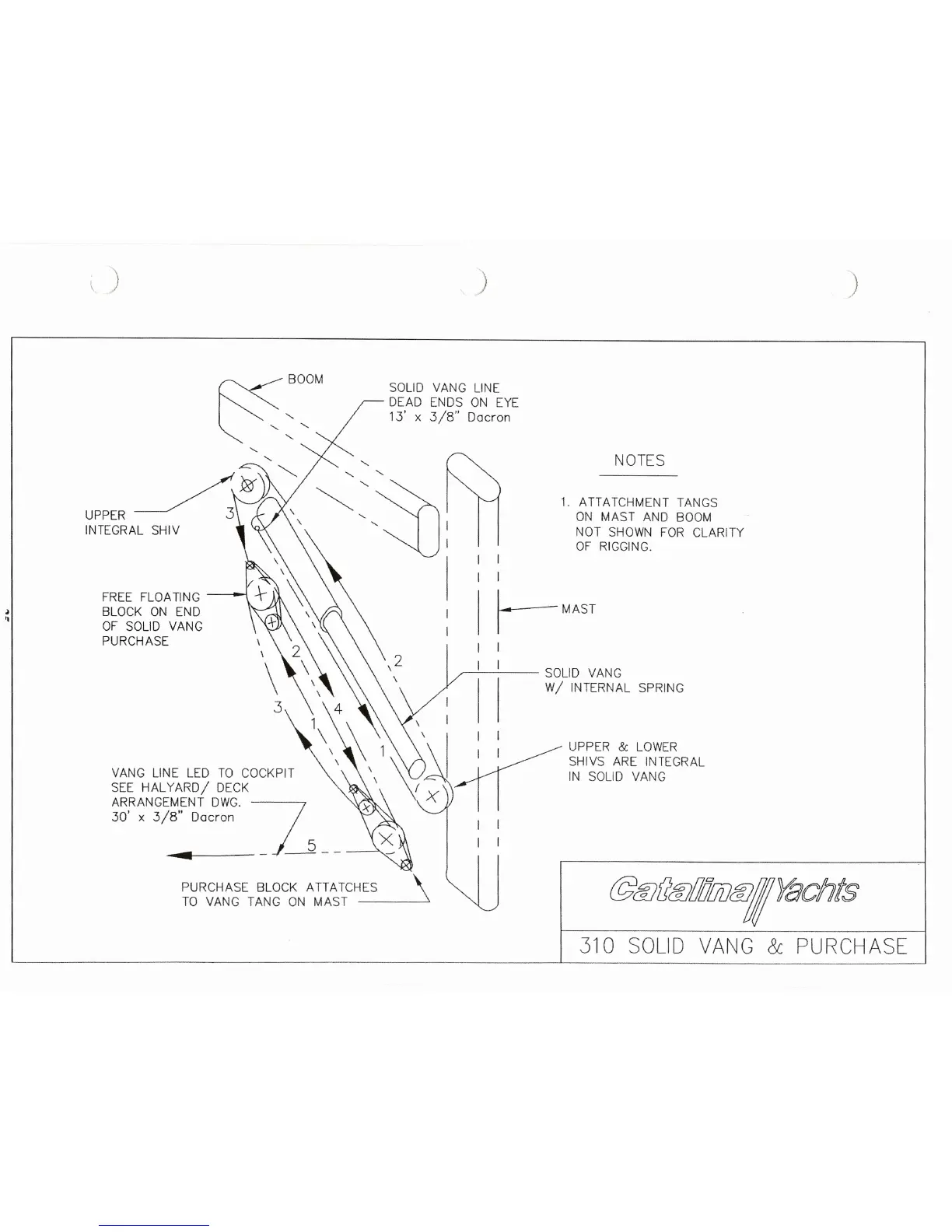

Catalina 310 - 310 SOLID VANG & PURCHASE

\ ) )
)
FREE FLOATING
BLOCK ON END
OF SOLID VANG
PURCHASE
VANG LINE LED TO COCKPIT
SEE HALYARD/ DECK
ARRANGEMENT DWG. ~
30' x 3/8" Dacron
5
.. - ----
PURCHASE BLOCK ATTATCHES
TO VANG TANG ON MAST
SOLID VANG LINE
DEAD ENDS ON EYE
13' x 3/8" Dacron
I
I
j---MAST
I
-r--,---I_- SOLI0 VAN G
W/ INTERNAL SPRING
\
NOTES
1. ATTATCHMENT TANGS
ON MAST AND BOOM
NOT SHOWN FOR CLARITY
OF RIGGING.
UPPER & LOWER
SHIVS ARE INTEGRAL
IN SOLID VANG
310 SOLID VANG & PURCHASE
