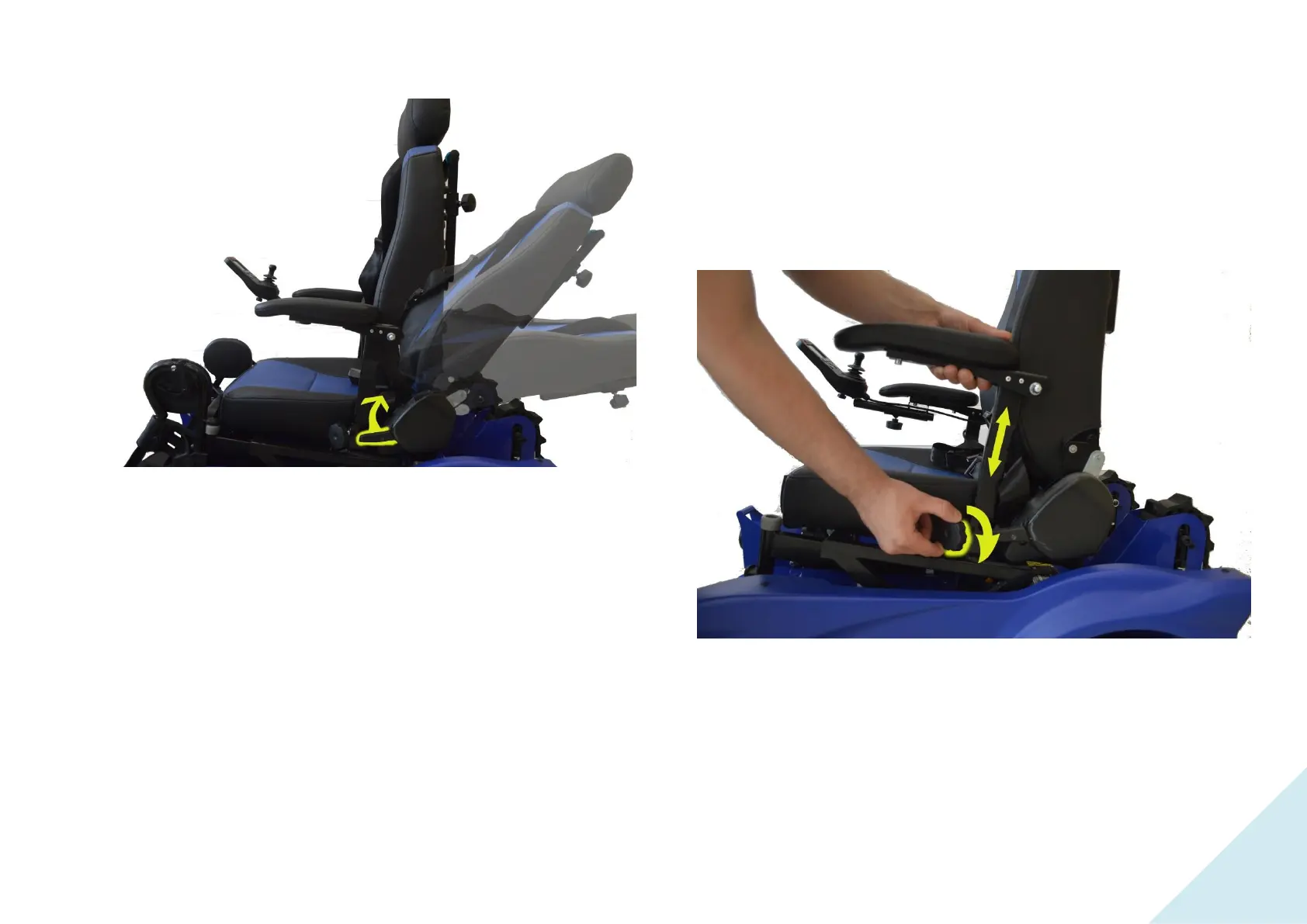

Fig. 6.1. Backrest adjustment
6.1.2. Armrest height adjustment
The product is supplied with adjustable height armrests. To adjust,
loosen the thumbscrew on the chair frame and set the armrest to the
required height, then the thumbscrew back (fig. 6.2).
If it is necessary to pull out the armrest, it can be removed after
loosening the thumbscrew by pulling up on the exit from the rail frame.
Fig. 6.2. Adjustable height armrests
