CBE CB-522 - Technical Specifications

6

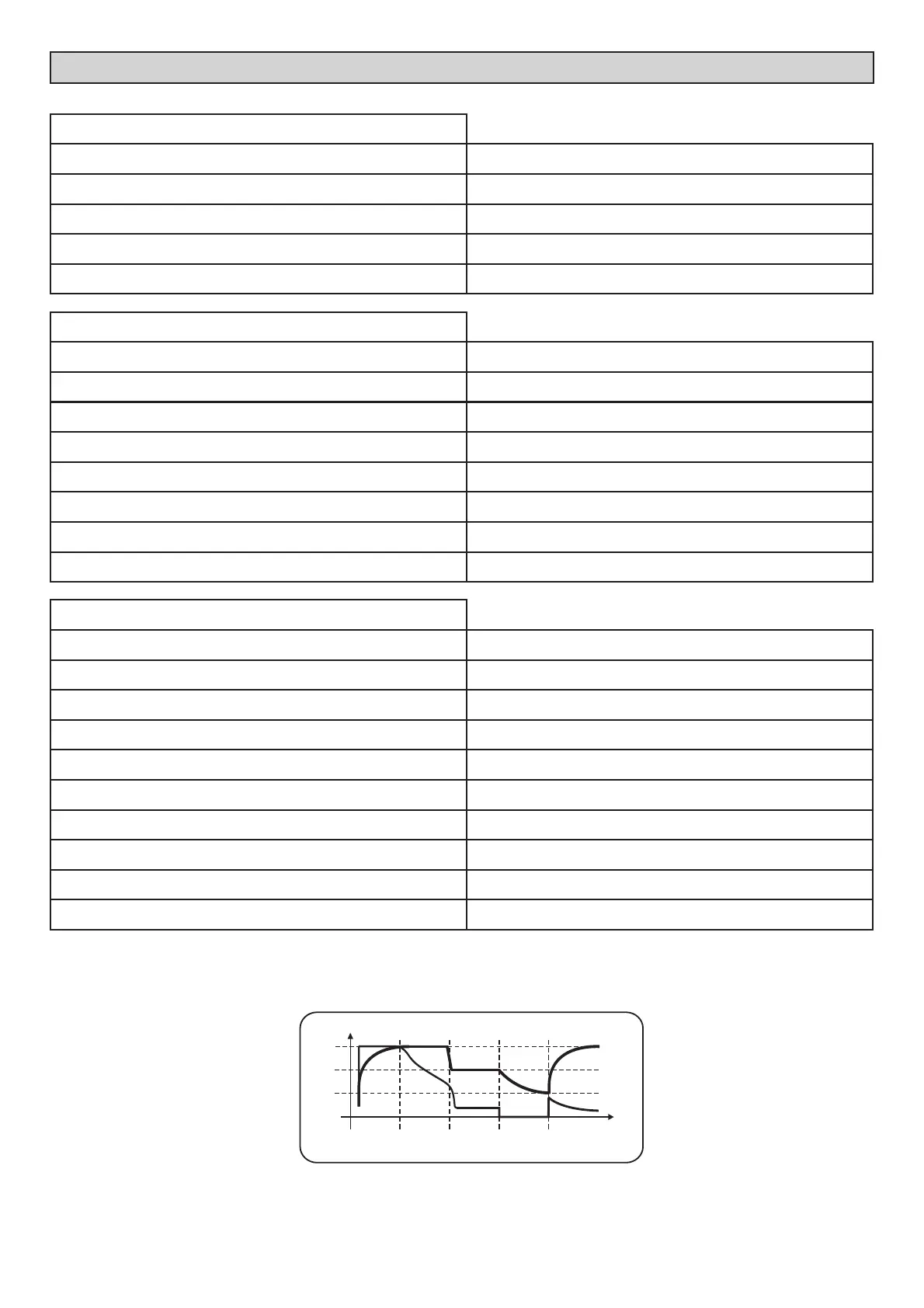

SPECIFICATIONS
INPUTTECHNICALDATA
Nominal voltage
Frequency
230Va.c. 10%±
50 Hz
Maximum power
Protection fuse ref. F2
Security switch
F 3.15A (glass 5x20)
230Va.c. luminous
320 W
OUTPUTTECHNICALDATA
Maximum voltage
14,3 Vd.c. (Pb-Gel) - 14,1Vd.c. (Pb-Acido)
Maintenance voltage
Maximum output current
Charge line
IUoU
13,8 Vd.c. (Pb-Gel) - 13,5Vd.c. (Pb-Acido)
22A
Short circuit and inversion polarity protected ref. F1
Thermal protection
Yes
Battery type selector
Pb-Acido / Pb-Gel
30A )(cartype
Net presence signalling (S)
12Vd.c. ; 50 mA
GENERALTECHNICALDATA
Efficiency
86 %
Room temperature
Ventilation
0 - +50 °C
Automatic regulation variable
Net connection
Security directives
EMC directives
Schukoplug
2006/95/CE
2004/108/CE
Battery connection
Dimensions
"M6" screw
180 x 190 x 85 (mm)
Weight
1.2kg
CHARGINGLINE “ IUoU”
V=VoltA=AmpereC=Carico-Load
V
I
VI
C
t
I Uo U ST-BY
Uo
Net signal connection
Faston "6.3"
-Technicaldataareindicatedalsointhelabelinsidethecover-
