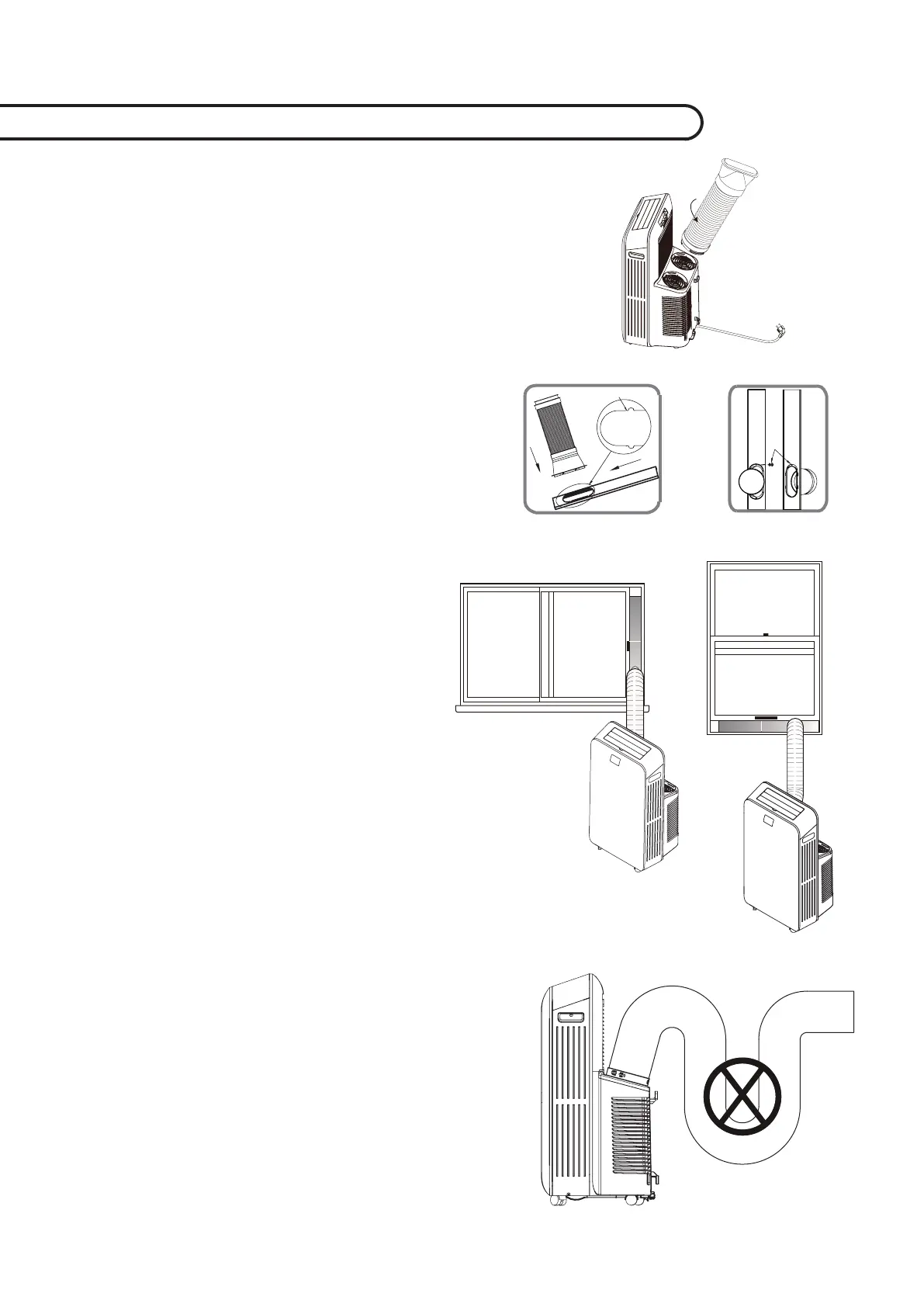

Step 3:
Screw exhaust pipe assembly (exhaust joint end)
into the air outlet on rear panel (in anti-clockwise
direction).
Step 4:
Click exhaust pipe assembly (exhaust flat nozzle end)
into installation kit assembly and fix with screw.
Incorrect installation
• Keeping exhaust pipe is of great importance, and
incorrect installation will affect normal operation of
the air conditioner;
• During installation substantial bend of exhaust pipe
is prohibited;
• Guarantee smooth air flow inside the pipe.
Overall effect diagram after assembly
Small notch
Then slide and lock
First insert
Screw
