model no. 040-1190-4

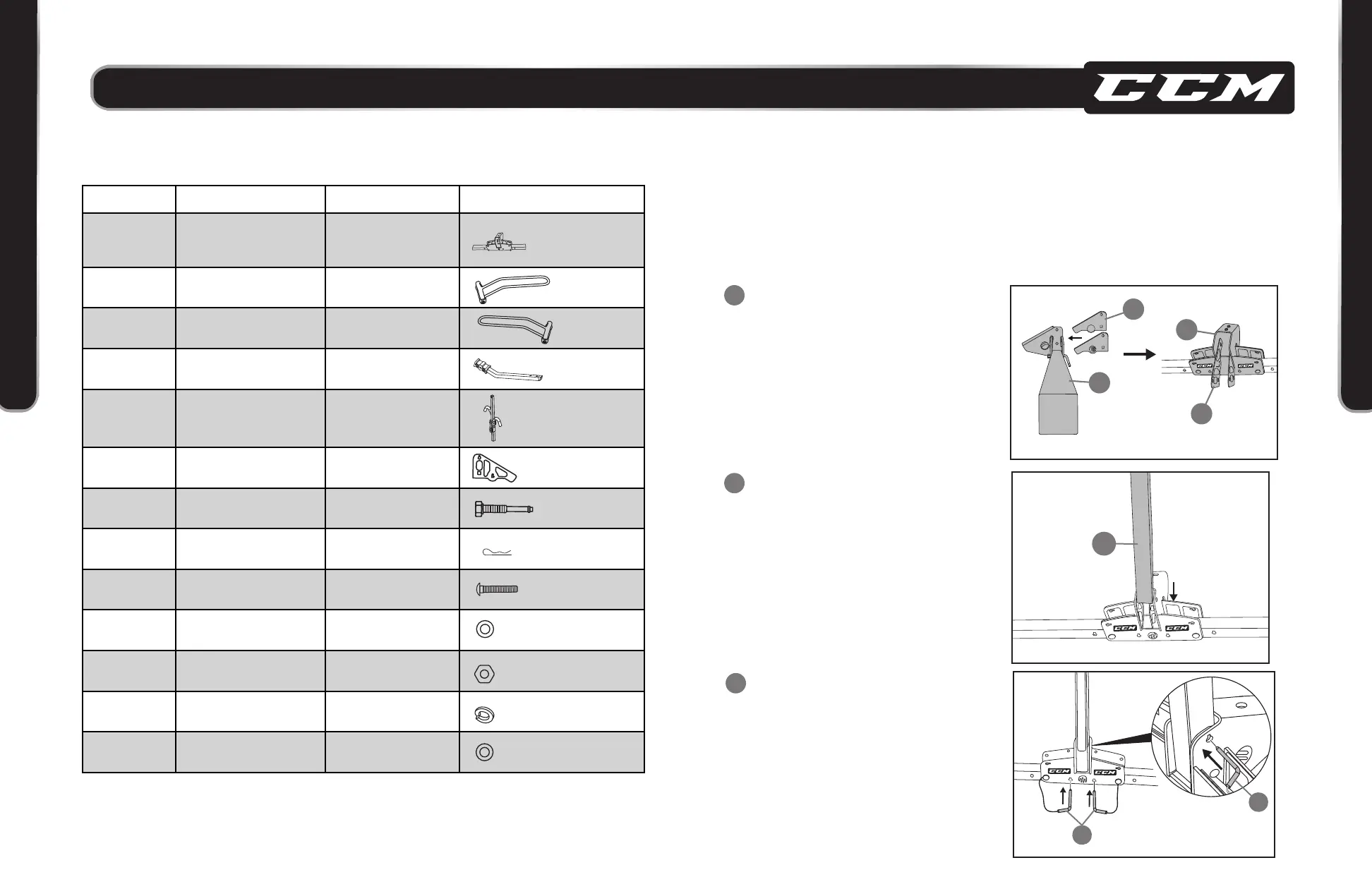

PACKAGING CONTENTS
PACKAGING CONTENTS
ASSEMBLY
PART NUMBER DESCRIPTION QUANTITY ILLUSTRATION/
A Centre bracket 1
B Right wheel tray 2
C Left wheel tray 2
D
Stinger with 2" (5 cm)
receiver adaptor
1
E Centre mast 1
F Base gasket (left and right) 2
G Anti-sway hitch pin 1
H Hitch pin clip 1
I Step bolt 1
J Flat washer, 5/6" (2.1 cm) ID 1
K Nylon locknut, 1/2" (13 mm) 1
M Spring washer, 1/2" (13 mm) 1
N Flat washer, 1/2" (13 mm) 1
4
5
Align lower holes of the centre bracket (A) with
corresponding holes at the end of the base
gasket (F) and insert both gaskets into the bracket.
A
A
F
F
E
1
1
Insert the centre mast (E) on the centre bracket such
that the holes of the vertical square tube align with
the aligned holes of the bracket and base gasket.
Insert the one top and two bottom quick release
pins (1) into the corresponding keyholes on the
centre bracket.
1
2
3
ASSEMBLING THE BIKE CARRIER
TOOLS REQUIRED
• 5/8" (16 mm) wrench (for two bolts on the stinger assembly).
• 3/4" (19 mm) wrench (for the anti-sway hitch pin bolt).
• 1/2" (13 mm) wrench and 3" (7.6 cm) extension (optional) (to secure the centre mast).
• Screwdriver.
