Reversing The Door
The door on the dryer can be positioned
either with the left or right hand hinging,
as shown in fig.6.
Please note: power tools must not be
used when reversing the door.
How to reverse the door
Open the door
Undo screw A, remove switch strike B
and replace screw A.
Remove screws C and latch plate D.
Remove hinge cover screw E.
Close the door.
Pull hinge cover F forwards to remove it.
Remove two outer screws G.
Remove door.
Fit latch plate D with screws C.
Reverse the door and fit to the dryer in
the closed position.
Refit screws G and hinge cover F.
Open the door.
Fit screw E to secure hinge cover.
Remove screw A at the top of door and
refit switch strike B as shown.

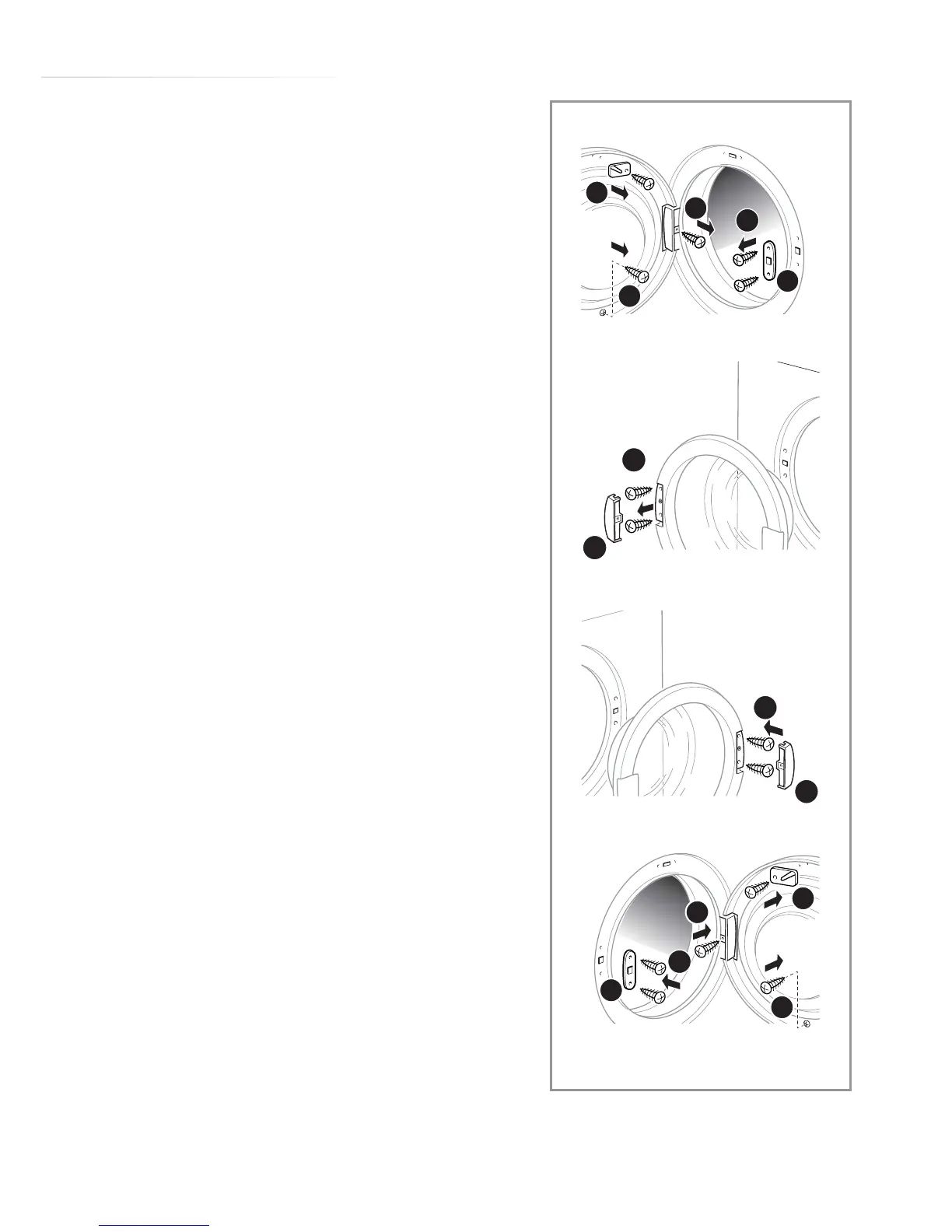

fig. 6
B
A
E
D
C
G
F
G
F
B
A
E
C
D
