14
Fig. 5
Figu re 2 - Mark wal l as req uired (see table 1)
Fig. 7
Figu re 3 - D rill h oles
Fig. 9 Fig. 10
Figu re 5 - Secure hoo d (tigh ten all screws)
Figu re 6 - Fit ducting adap tor

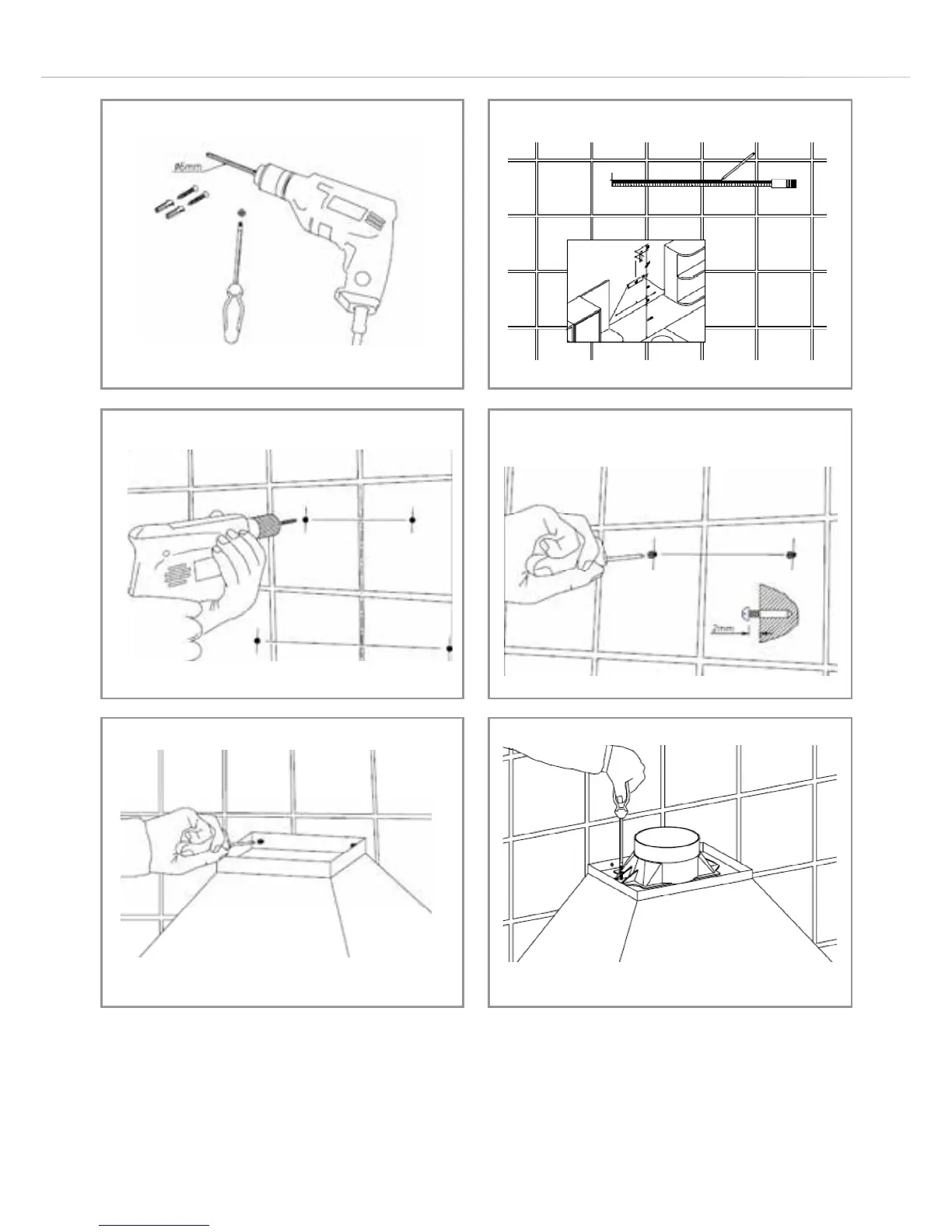

Tools required Mark wall as required (see table 2)
Drill holes Fit wall fixings and top screws - Ensure
that any fixings you use are appropriate
for the wall type.
Secure hood (tighten all screws) Fit ducting adaptor
IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED
WITH THE EXTRACTOR TO MOUNT THE DUCTING ADAPTOR. THE USE
OF LONGER SCREWS MAY CAUSE DAMAGE TO THE INTERNAL WIRING
WHICH WILL NOT BE COVERED BY THE WARRANTY.
Fig. 8
Fig. 6
