Installation
Reversing the door (performed prior to install)
The door on this product can be easily reversed to suit any requirement. To
do this, proceed as follows:
1. Remove the top decorative cover caps on the non-hinge side and keep
for later use.
2. Whilst supporting the door, remove the upper hinge by undoing the two
fixing screws
3. Remove and rotate the door through 180° and relocate the bottom door
pin in the lower support.
4. Refit the top hinge on the opposite side, ensuring the screws are securely
tightened (Do not use power tools)
5. Fit the decorative cover caps in the non hinge side.
FW552 Freezer door reversal:
The freezer door can be reversed,as required. Proceed as follows to reverse
the door:
1. Open the freezer door and remove the door catch (18) by undoing the
fixing screw.
2. Remove the bottom hinge support (17) by undoing the fixing screw,
taking care to support the freezer door (16) whilst doing this.
3. Place the freezer door in a safe place and refit the door catch on the
opposite wall of the refrigerator.
4. Locate the freezer door in the top hinge hole and secure the lower hinge
pin in position.
5. Fit the decoartive cover caps in the old hinge suppport and door catch
holes to finish off.

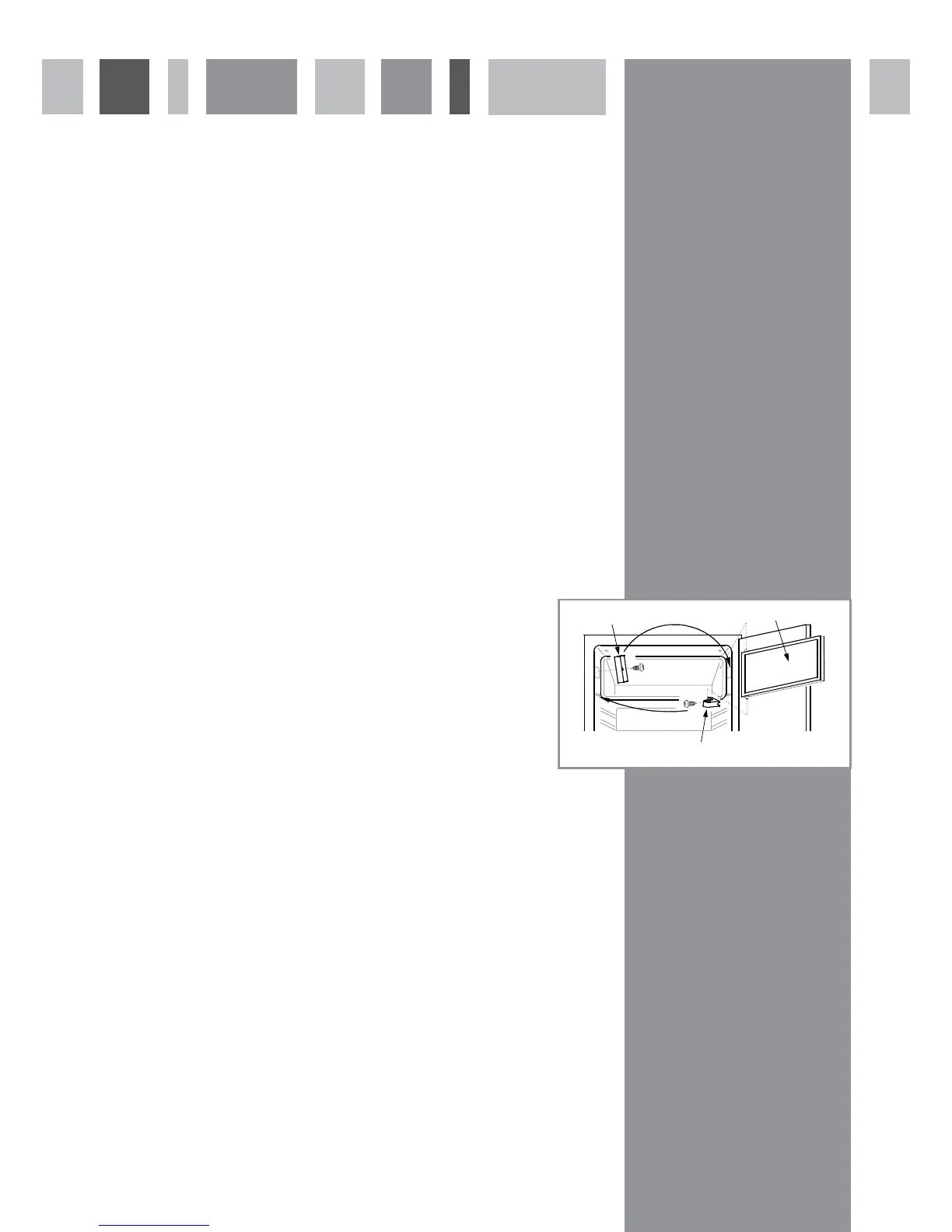

fig. 6
