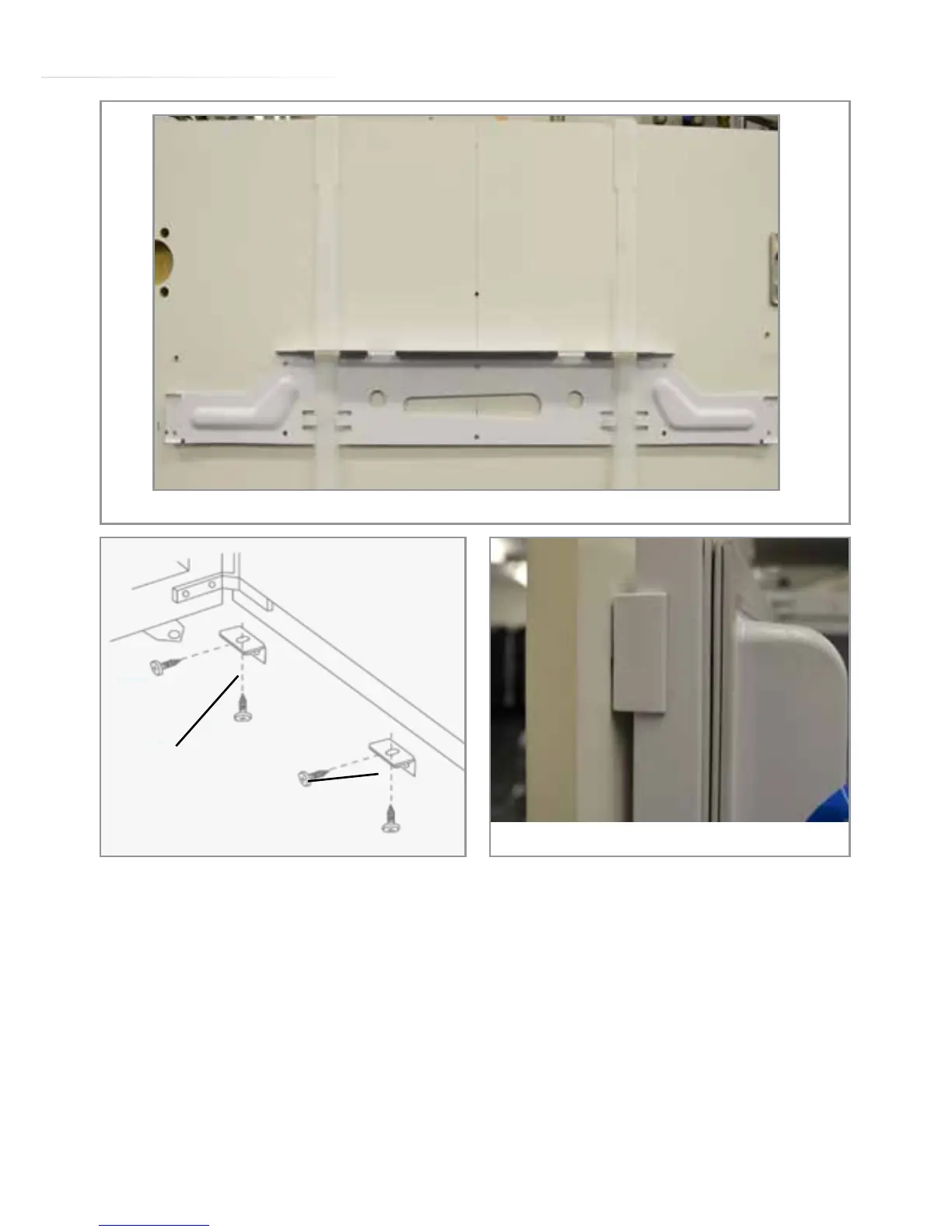

Fig. 19
Lower decor fixing brackets
Fig. 20
Please note: When fitting the vertical screws into the decor door
through the lower decor fixing brackets, use the large dome
headed screws supplied in a polythene bag which also contains
the white cover caps.
When the decor doors are in the desired positions, use the white
trims pictured on the far right of the installation kit image on page
16 to hide any visible kit parts between the decor and appliance
doors (as per Fig. 21).
Fig. 21
