19

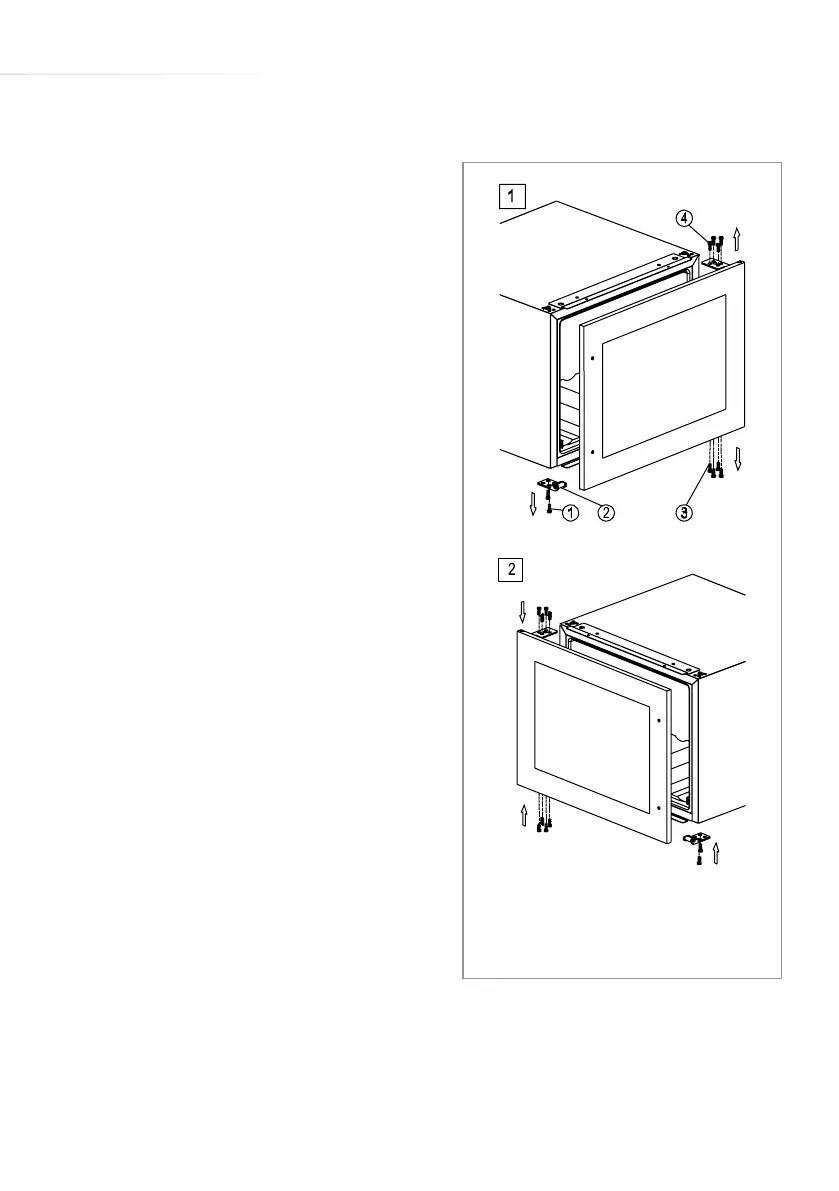

Fig. 6
Reversing the Door
It is possible to reverse the door on
this appliance, if required.
To do so, follow these steps:
1. Remove the glass door by
removing the eight screws (3 and
4 in figure 6). Support the door as
you do this to prevent damage.
2. Gently remove the door and place
on a padded surface to avoid the
risk of damage.
3. Unscrew the roller (2) and relocate
it on the opposite side.
4. Rotate the door 180º and relocate
it on the opposite side.
5. Refit the eight screws (3 and 4),
ensuring the door is level.
Table of parts
1. Roller fixing screw
2. Roller
3. Hinge fixing screws
4. Hinge fixing screws
